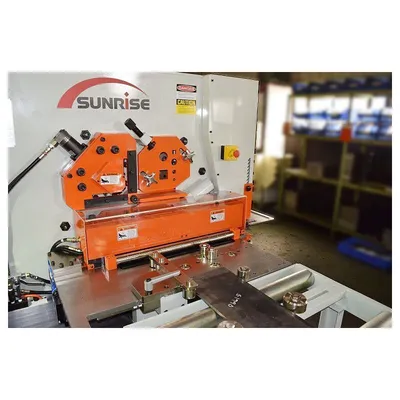

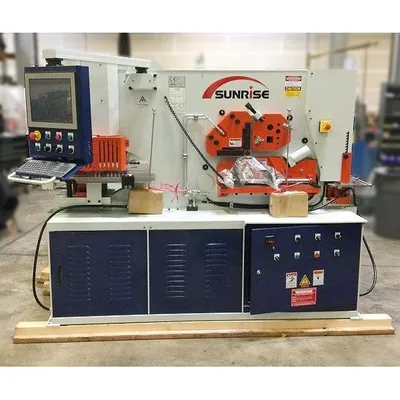

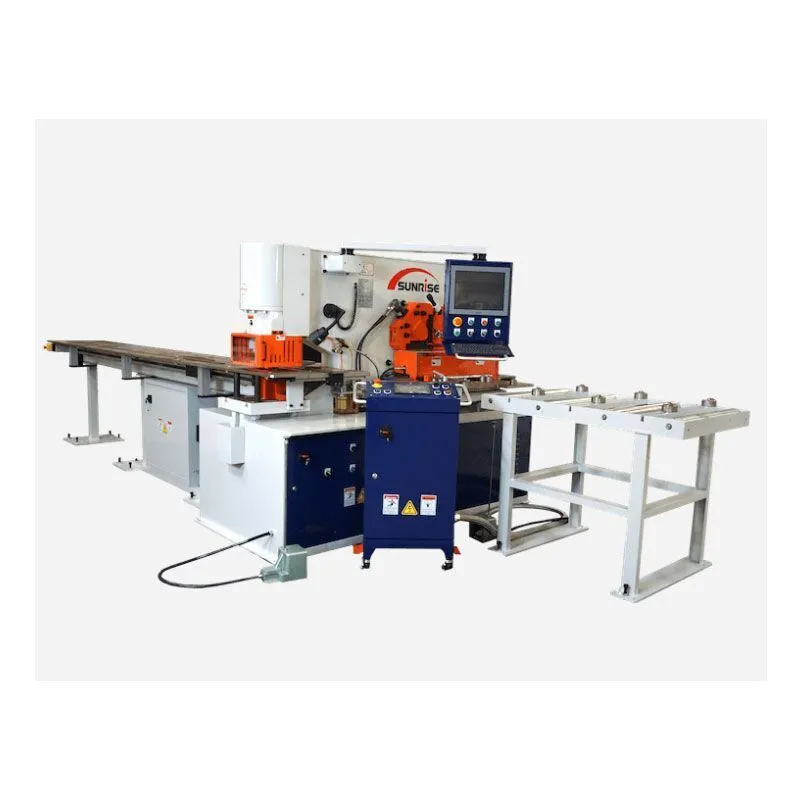

The Semi-Automatic CNC positioning tables from SUNRISE are designed for plate, angle, and channel positioning and feature user-friendly touch-screen interfaces. Factory-installed on any dual-cylinder ironworker or punching machine with a 20” or larger throat dept, they can virtually eliminate your manual layout!
| Punch Tonnage | 185 T | 167,829.4 kg |
| Punch Max. Capacity | 1-7/16" in 1-1/4" | 2" in 7/8" | 1-7/16" in 1-1/4" | 2" in 7/8" |
| Angle Shear - Maximum Capacity | 8" x 8" x 3/4" | 8" x 8" x 3/4" |
| Notcher | 2" x 3-1/2" x 5/8" | 2" x 3-1/2" x 5/8" |
| Shear Capacity Plate | 30" x 3/4" – 16" x 1-1/8" | 30" x 3/4" – 16" x 1-1/8" |
| Angle (L1) | 8" | 203.2 mm |
| Angle (L2) | 8" | 203.2 mm |
| Angle (T) | 0.75" | 19.05 mm |
| Throat Depth | 20" | 508 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 20 hp | 20 hp |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
