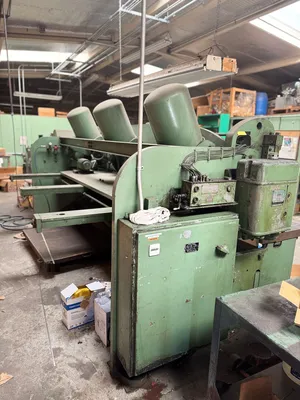

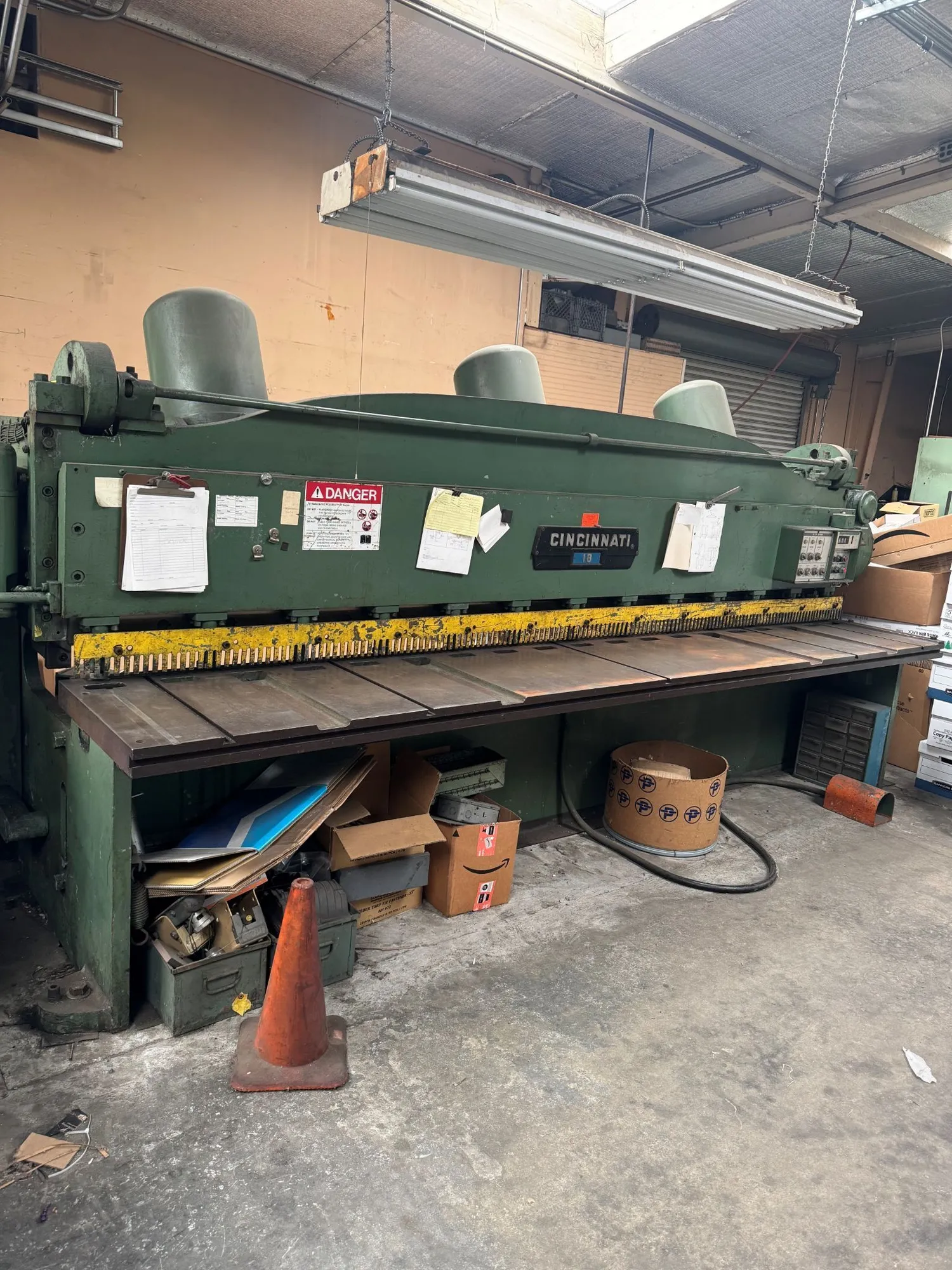

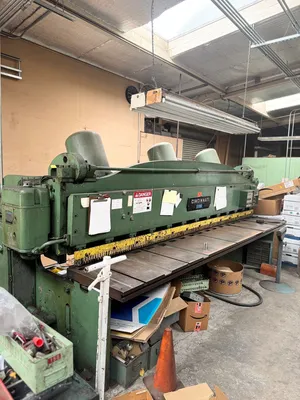

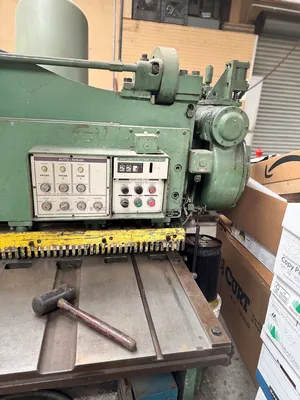

CINCINNATI 1812 Power Squaring Shear, 12' x 1/4" capacity, hydraulic hold down force of 8 tons, motor 15HP, 60 strokes per minute, blade length 12' 6", back gauge travel 0-36". Used, overall dimensions 188" W x 84" D x 80" H, weight 22,600 lbs. #8180
| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 12.5' | 3.8 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 188 W x 84 D x 80 H | 188 W x 84 D x 80 H |
| Weight | 22600 lbs | 22600 lbs |
CINCINNATI 1812 Power Squaring Shear 144" X 1/4" #8180 #2
GENERAL SPECIFICATIONS:
Capacity Mild Steel: 12' x 1/4"
Length Between Housings: 12' 3"
Blade Length: 12' 6"
Strokes Per Minute: 60 SPM
Knife Size: 4” X 1” X 12’ 4”
Rake, Taper Per Foot: 1/4"
Hydraulic Hold Down Force: 8 tons
Number of Hold Downs: 13
Back Gauge Travel: 0-36”
Table Height: 32
Motor: 15HP
Approximate Overall Dimensions: 188 W x 84 D x 80 H
Approx. Weight: 22,600 lbs.
