SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 to 185 Tons and feature two high-speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
| Punch Tonnage | 135 T | 122,470.1 kg |
| Angle Shear - Maximum Capacity | 6 x 6 x 11/16 in. – 3 x 3 x 3/8 in. Miter | 6 x 6 x 11/16 in. – 3 x 3 x 3/8 in. Miter |
| Notcher | 2-1/2 x 3-1/2 x 5/8 in. | 2-1/2 x 3-1/2 x 5/8 in. |
| Shear Capacity Plate | 24 x 11/16 in. or 16 x 1 in. | 24 x 11/16 in. or 16 x 1 in. |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.6875" | 17.463 mm |
| Throat Depth | 12" | 304.8 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 15 hp | 15 hp |
| Dimensions | 98 x 41 x 73 in. | 98 x 41 x 73 in. |
| Weight | 8,725 lbs | 8,725 lbs |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

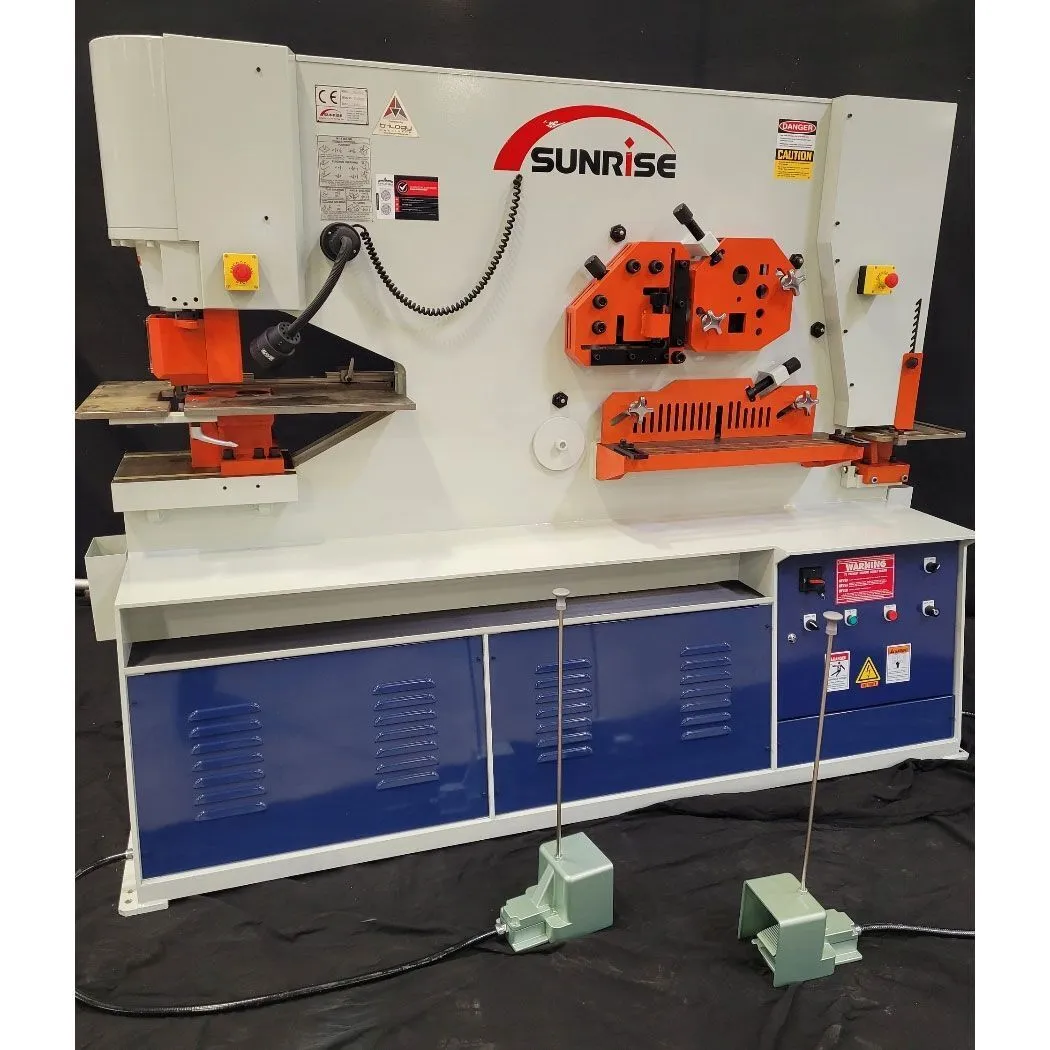

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
