The Semi-Automatic CNC positioning tables from SUNRISE are designed for plate, angle, and channel positioning and feature user-friendly touch-screen interfaces. Factory-installed on any dual-cylinder ironworker or punching machine with a 20” or larger throat dept, they can virtually eliminate your manual layout!
| Punch Tonnage | 110 T | 99,790.4 kg |
| Angle Shear - Maximum Capacity | 6" x 6" x 1/2" | 6" x 6" x 1/2" |
| Notcher | 2" x 3-1/2" x 3/8" | 2" x 3-1/2" x 3/8" |
| Shear Capacity Plate | 25" x 9/16" – 14" x 1" | 25" x 9/16" – 14" x 1" |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 20" | 508 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 15 hp | 15 hp |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

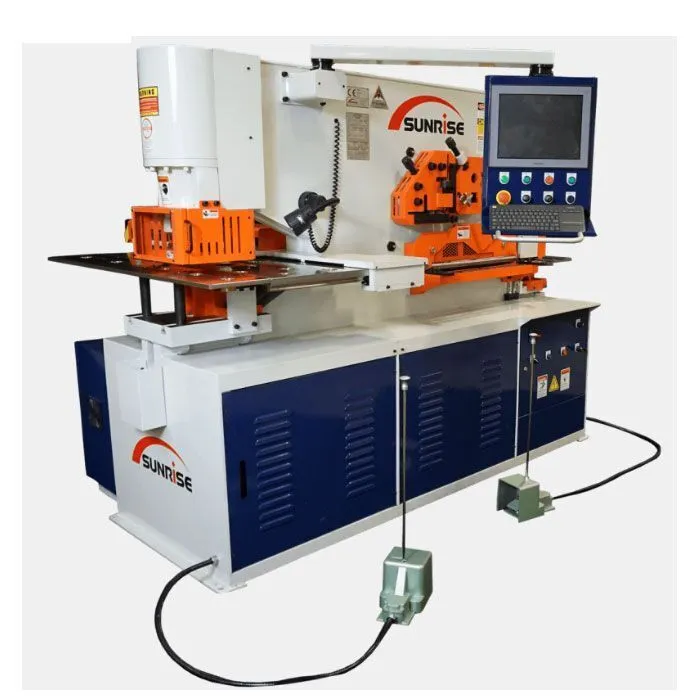

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
