USED 2018 TSUGAMI M08SY-II
Overview
Description

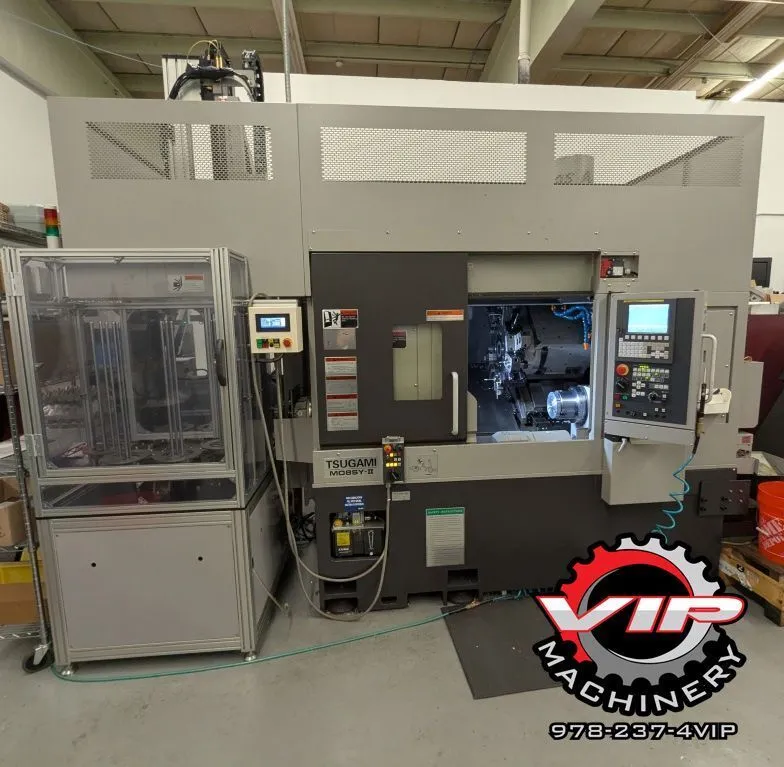

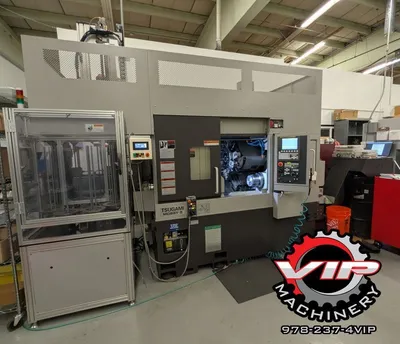

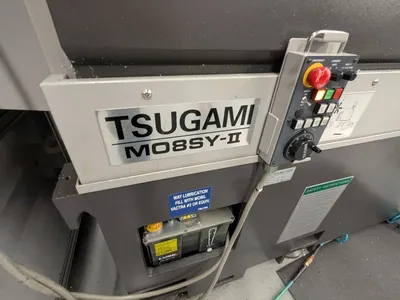

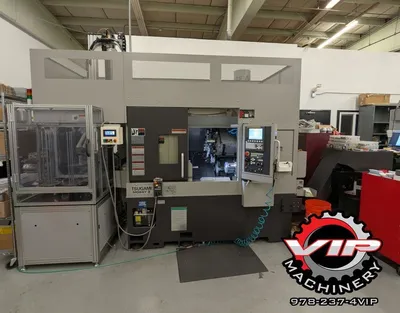

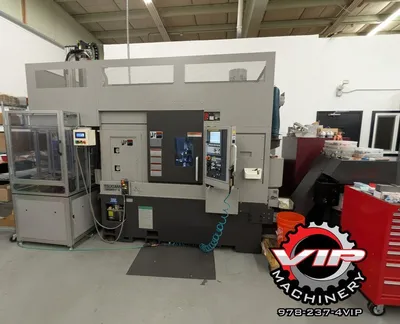

2018 Tsugami M08SY-II with Gantry Loader (8 Stocker).

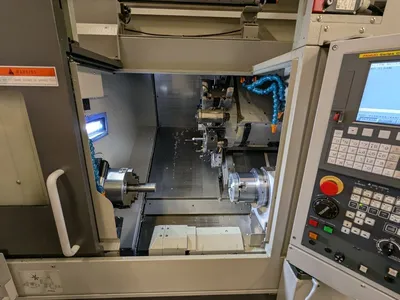

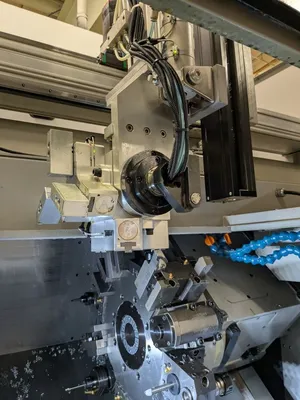

CNC Turning Center with Y-axis and Work Stocker and Overhead Gantry Robot for Automated Loading & Unloading.
Standard Specification:

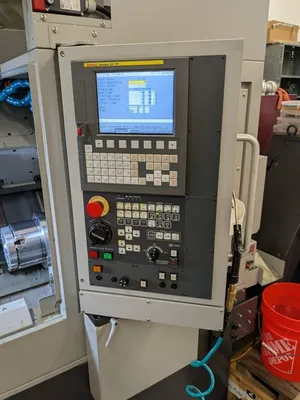

Fanuc Oi-TF CNC Control.

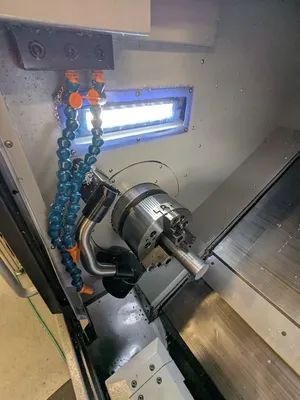

8" Main Spindle Chuck and 6" Sub Spindle Chuck.
Max machining dia: 280mm (11.0236”)
Max gantry load dia: 8-Stocker - 102mm (4.02”)
Main spindle speed: 4,500 RPM.
Back spindle speed 4,500 RPM.
Live tool speed: 5,000 RPM.
65mm Thru Bore Spindle Y Axis Turning Center.
2.55” Bar capacity through main spindle.
2.04” Through sub spindle bore.

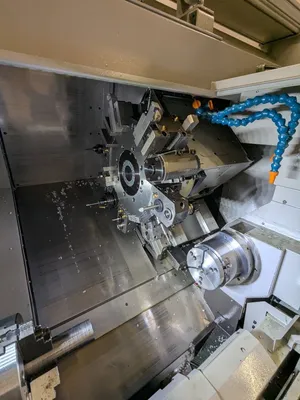

12 Station Driven Tool Turret.
Manual Tool Setter (Renishaw OP3).
Main/Back Spindle C-Axis (With Brake).
Spindle air purge.
Live tool rigid tap.
Work Catcher With Conveyor and Pneumatic Ejector.

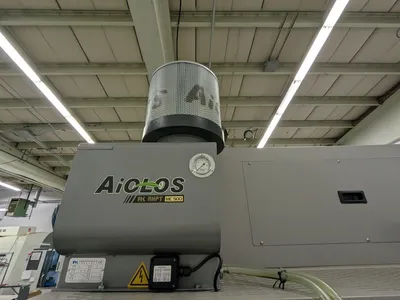

Aiolos MC500 Mist Collector included.
300 PSI high pressure coolant thru turret and ejector.
LNS Chip Conveyor (Hinge Type).
(4) Total Live Tool holders: (2) Cross live heads, (1) Front live head (Front Only) and (1) Back live head (Back Only).

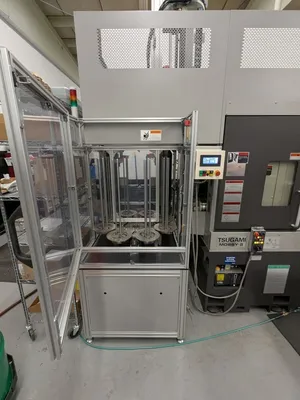

8-Stocker Specification: 8-Stocker Part Size Considerations.
Maximum workpiece dia: 102mm (4.02”)
Min work piece Ø without addl. Engineering: 27mm (1.062”).
Maximum work stacking height: 23”.
1 Owner machine with low hours! Approx. Cutting Hours: 1211.
Note: Machine was built in 2018, first put into service in 2021.
Specifications
| Chuck Size | 8" | 203.2 mm |
|---|---|---|
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Control | CNC (Fanuc Oi-TF) | CNC (Fanuc Oi-TF) |
