NEW 2015 MAN 7L27/38

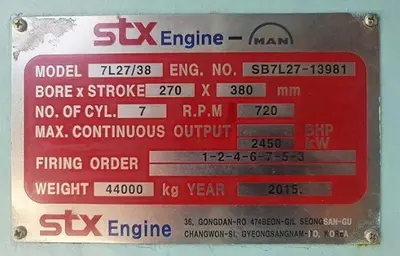

The 2015 MAN 7L27/38 generator set, new and unused, features robust performance with a maximum continuous output of 2,450 kW. It is equipped with a 7-cylinder engine, each cylinder boasting a bore and stroke of 270 mm by 380 mm, operating at 720 RPM. With a firing order of 1-2-4-6-7-5-3, this unit weighs approximately 44,000 kgs, indicative of its solid construction suitable for demanding applications.

Complementing the engine, the Hyundai three-phase synchronous generator delivers a main power capacity of 2875 KVA at 690 Volts and 2405.6 Amps. Designed to operate at 60 Hz, it adheres to ABS rules and boasts a protection degree of IP 44. The generator operates efficiently at a power factor of 0.8, with an insulation class of F and a mounting configuration of B5/B20. The design supports usage in ambient temperatures up to 50º C, ensuring reliability across diverse environments.

Further technical details include an exciter voltage of 65 VD and an excitation current of 7.0 Amps. The generator’s space heater runs at 1Ø, 220V, and 1000W, essential for maintaining internal temperatures. Weighing 10,700 kgs, this generator is a testament to durability and efficiency. Furthermore, it utilizes ISO VG 68 oil, fitting its industrial capabilities. Ideal for operations requiring dependable power solutions, this generator set embodies quality and high performance in the industry standard.

Hours: 0
kW Power Rating: 2450
Power Factor: .8
Voltage: 690
Phase: 3
Enclosure: OPEN
Fuel: Diesel
