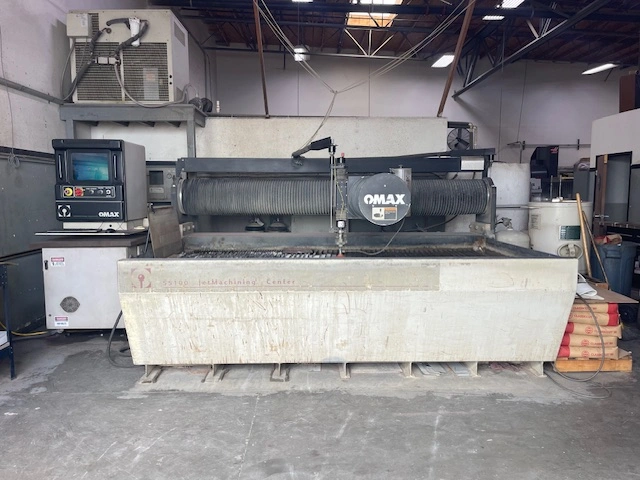

Omax CNC Waterjet Cutting System Model 55100

2003 Omax 55100 CNC Water Jet

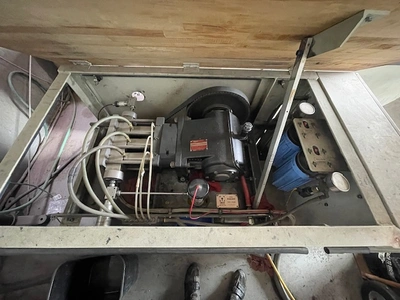

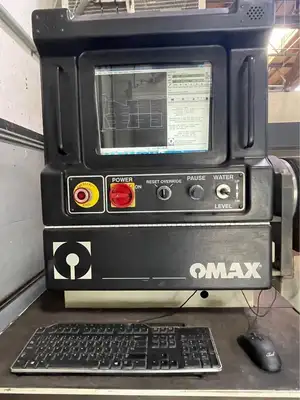

Maximum Cut Size                                                                55” X 100” Overall Size of Water Tank                                                   10’6” x 5’5” Z-Axis Travel                                                                           8” Intensifier HP                                                                         30 Intensifier PSI                                                                                    50,000 Speed                                                                                     180 IPM Accuracy/Repeatability                                                        +/- 0.001 Approximate Footprint (w/Controller)                                 12’11” x 7’10” Approximate Weight                                                             8,000 LBS Electrical Requirements                                                       480/3/60 Omax CNC Control Omax P3050V Pump Water Level Control Cantilever Style Garnet Hopper Chiller included
