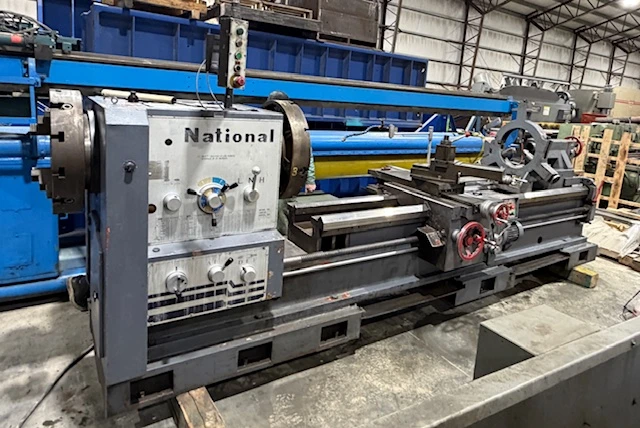

National Engine Lathe with 9″ Spindle Bore

Swing over bed: 32″

Distance between centers: 120” Swing over cross slide: 22″ Swing in gap: 55″ Length of removable gap: 10″ Spindle bore: 9″ Spindle speeds (12): 5 – 300 RPM Inch threads (48): 1-1/4 – 27 TPI Metric threads (48): 0.5 – 14 mm Inch feeds (48): 0.0032 to 0.5540 Metric feeds (48): 0.081 to 2.288 Leadscrew diameter: 2″ Leadscrew pitch: 2 TPI Tailstock taper: #6 Tailstock quill diameter: 4-1/4″ Tailstock travel: 10-1/2″ Main motor : 20 HP Volts: 220 / 440 Phase: 3 Cycles: 60 Hz Amps: 52 / 26 Approximate dimensions: 206″ x 66″ x 95″ high Shipping height: 65″ (on 4″ blocks w/DRO & Pendant removed)
