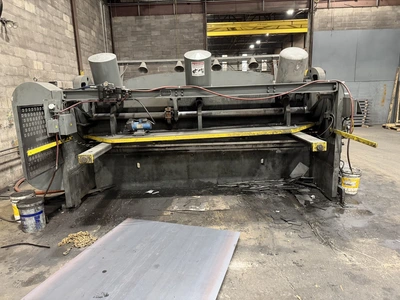

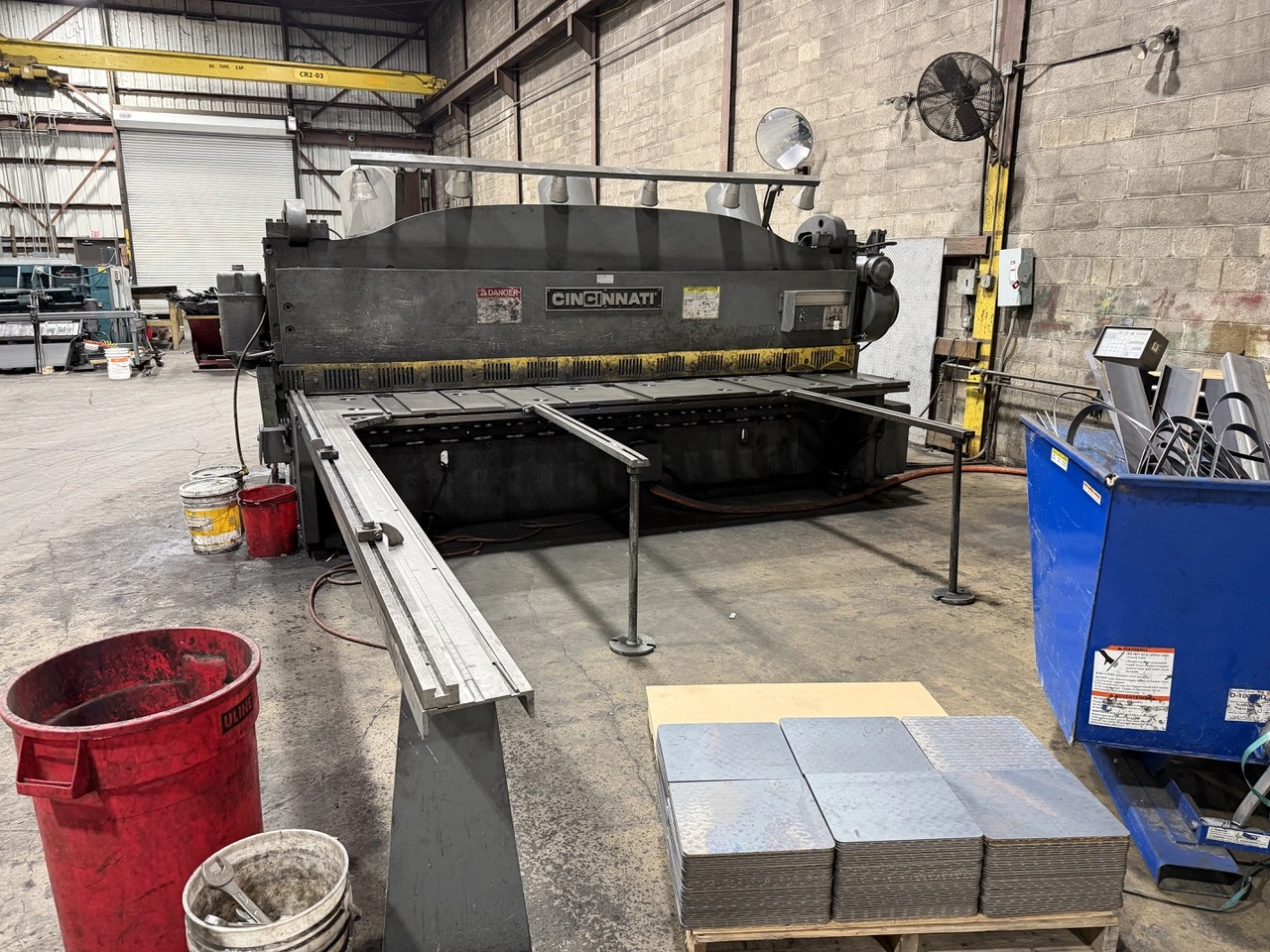

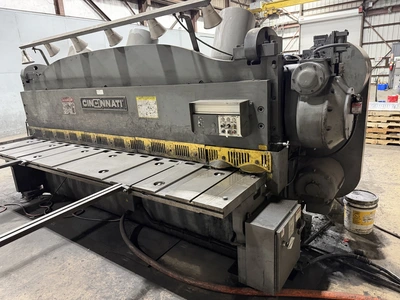

Cincinnati 2512G Mechanical Power Squaring Shear

2019 Cincinnati 12′ x 3/8″ Mechanical Power Squaring Shear Model 2512G

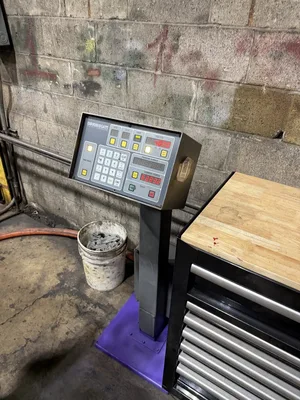

Shearing Capacity                                                     12’ x 3/8” Blade Length                                                              148” Distance Between Frame                                         147” Speed at Full Stroke                                                 50 SPM Rake Angle                                                                9/32” per foot Number of Hold Downs                                            13 Distance under Hold Down                                      11/16” Gap Depth                                                                  18” Table Height                                                               32” Main Motor                                                                20 HP  230/460/3/60 RPM 1675  Amps 52 / 26 Approximate Dimensions                                         188” L x 82” W x 86” H Approximate Weight                                                 33,000 Lbs Pit Required (Approximate)                                     12” Deep x 4” W x 11’ L 36″ power operated back gauge Operator control stand 13′ squaring arm Foot pedal control Ball transfers in table Finger guard
