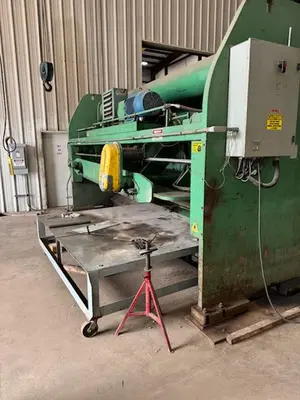

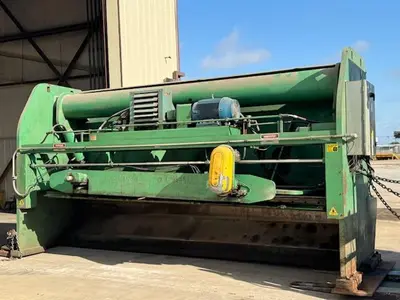

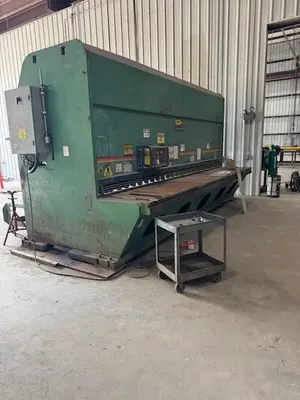

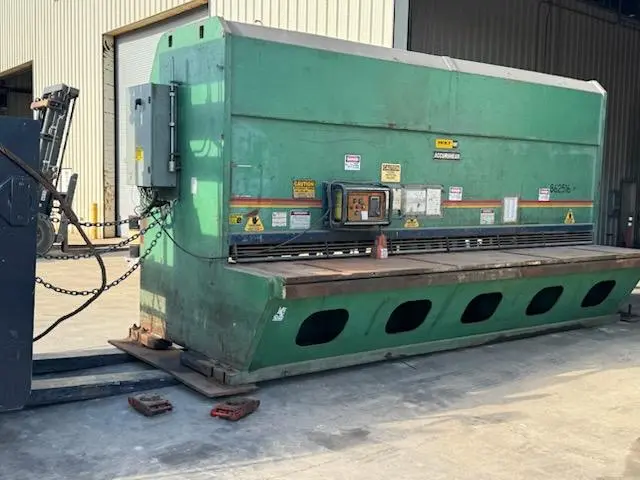

Accurshear 16′ x 5/8″ Hydraulic Power Squaring Shear

1996 ACCURSHEAR Model 862520 16′ x 5/8” Power Squaring Shear

Overall Shearing Length: 16′ Rated Mild Steel Capacity: 5/8” Front Operated Power Back Gauge Range: 1” to 48” Knife Size: 1-1/8” x 5” x 196” Number of Holddowns: 26 Holddown Tonnage: 52 Cycles per Minute: Full Stroke: 6; Short Stroke: 25 Motor: 50 H.P. Overall Dimensions: 224” x 120” x 108” High Flush Floor Design Machine Weight: 70,000 lbs. 4-Edge Blades 4′ Squaring Arm 4′ Squaring Arm 3-Position Footswitch Control Jog, Manual, Auto Cycles Adjustable Stroke Length Hand Slots in Table T-Slot in Front of Table Power Blade Gap Adjust Oil Cooler Front-Operated Powered Swing Away Back Gauge
