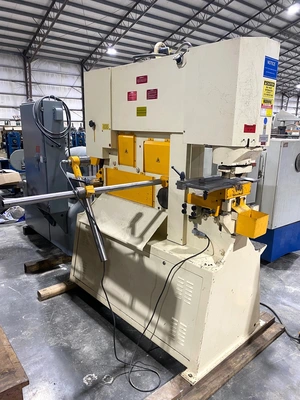

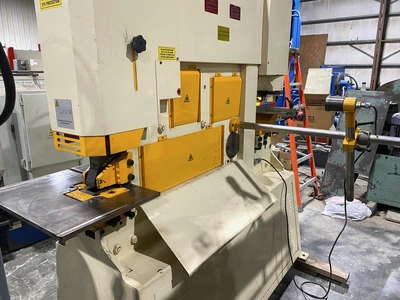

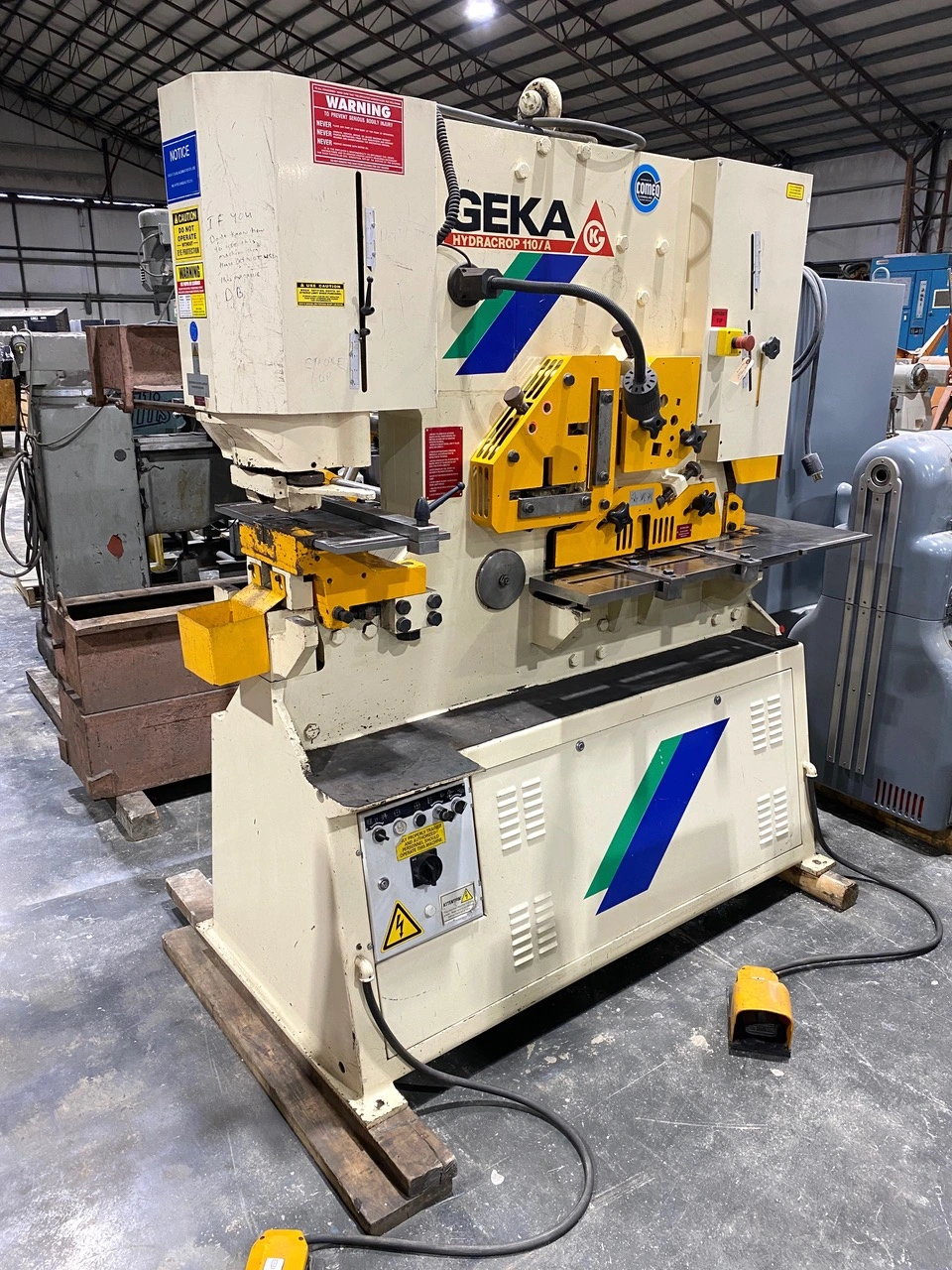

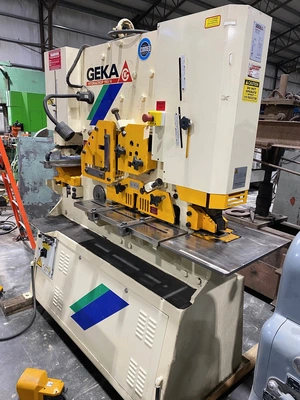

Geka Hydracrop 121 Ton Hydraulic Ironworker Model 110/A

2007 121 ton Geka Hydracrop 110/A Hydraulic Ironworker

Tonnage                                                                     121 Punching Capacity                                                    1-1/2″ through 3/4″ Punch Stroke                                                             3” Punch table work height                                           45-1/2” Throat Depth                                                              12” Angle Shear @ 90                                                      6-1/2″ x 6-1/2″ x 1/2″ Angle Shear @ 45                                                      3″ x 3″ x 5/16″ Plate/Flat Bar Shear                                                 24″ x 5/8″ Round Bars                                                                2” Square Bars                                                               2” Coping/Notching                                                       4″ x 2″ x 1/2″ Coper & flat shear stroke                                         4.5″ 4″ C-channel capacity                                               4″ x 5.4 lb/f 3″ C-channel capacity                                               3″ x 4.1 lb/f Main Motor                                                                 7.4 HP, (5.5 kW) Electrics                                                                      240/480/3/60 21.2/10.6 amps Approximate Dimensions                                        78”L x 36”W x 77”H Approximate Weight                                                5,500 Lbs Dual operator ironworker (2) independent cylinders (2) foot pedal controls (5) work stations –Punch station – Angle shear station – Section shear station – Flat bar shear station – Coper station Magnetic Work Light 40″ Electric “flip stop” for shearing stations Round/square bar knives for section shear station C-channel knives for section shear station (3″, 4″) Pipe notching attachment (1-1/4″) Miscellaneous punch tooling
