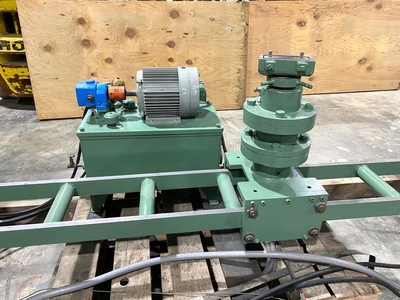

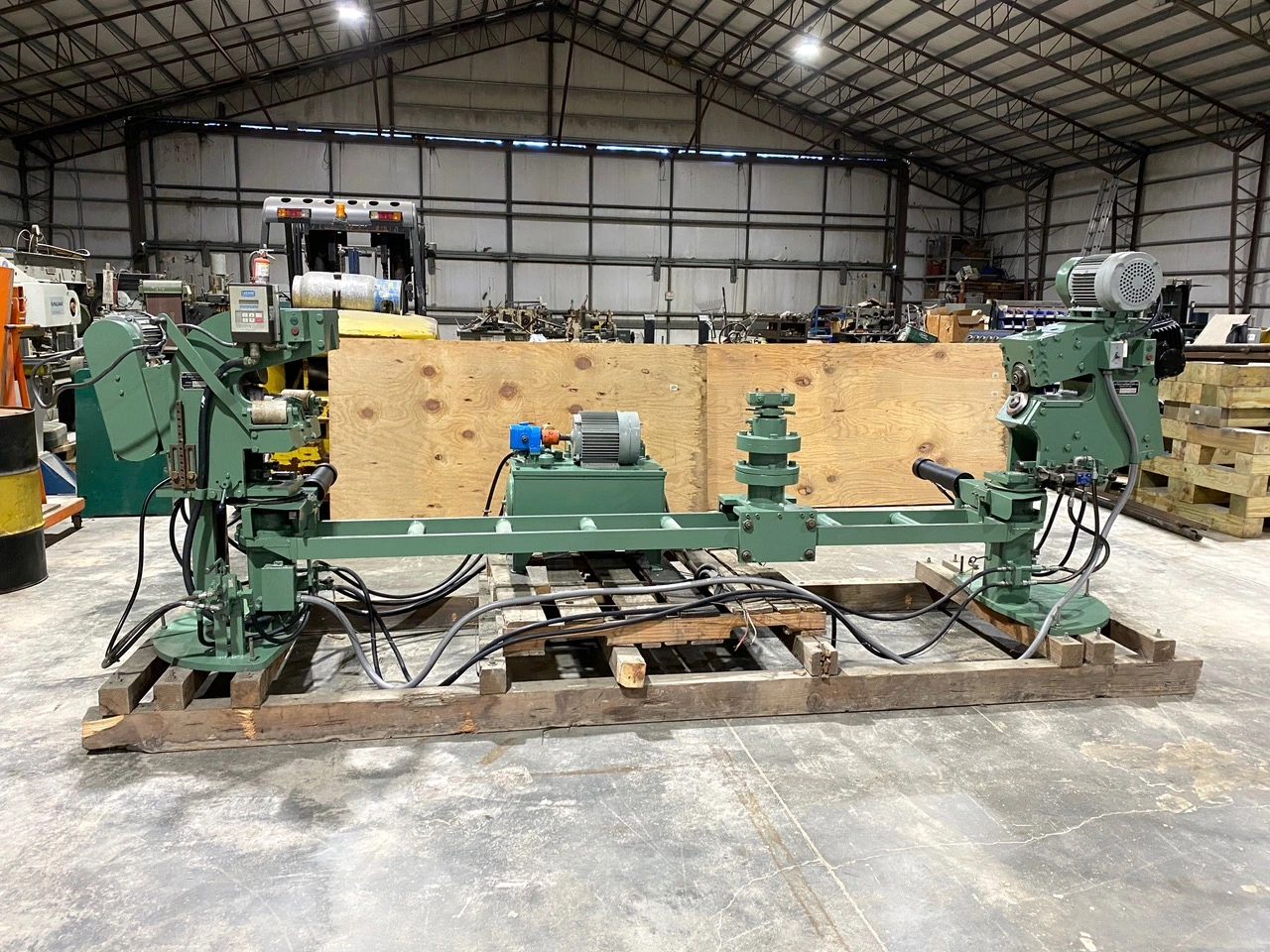

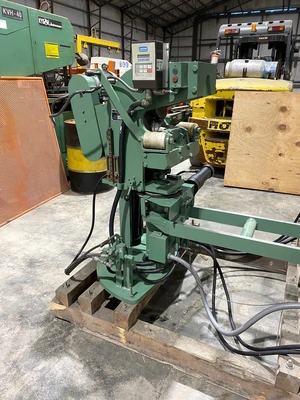

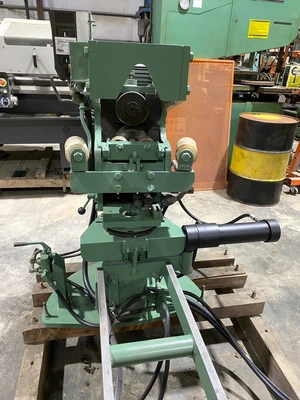

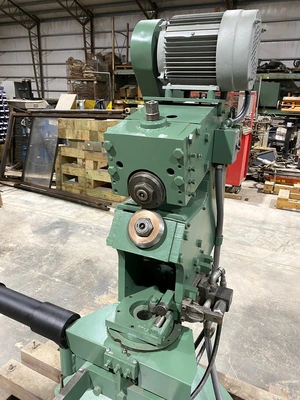

Blue Valley No. 72 Elliptical Head Shear & Flanging Machine

1979 3/16″ Blue Valley No. 72 Elliptical Head Shear & Flanging Machine

Maximum thickness, mild steel                               3/16″ Maximum thickness, stainless steel                       10 gauge Maximum thickness, aluminum                              9/32″ Minimum thickness                                                  16 gauge Maximum diameter                                                  94” Standard knuckle radius sizes                                 3/8″, 3/4″ Minimum knuckle radius                                         3/16″ Maximum knuckle radius                                         1″ Flange head motor                                                    1 HP Shear motor                                                               2 HP Hydraulic pump motor                                              3 HP Approximate dimensions                                         14′ x 4′ x 70″ high Approximate weight                                                  3,400 lbs.
