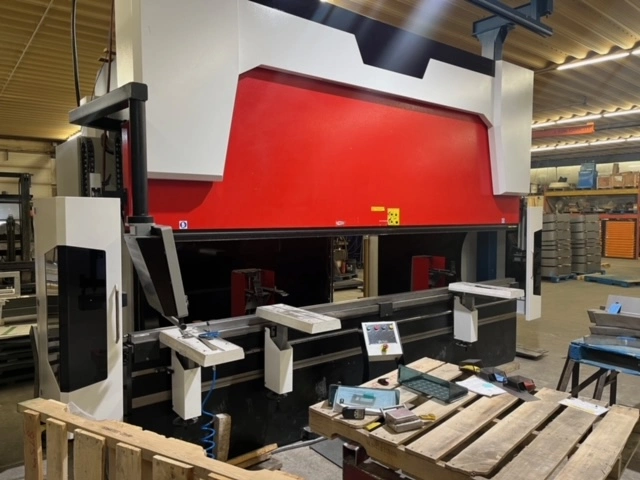

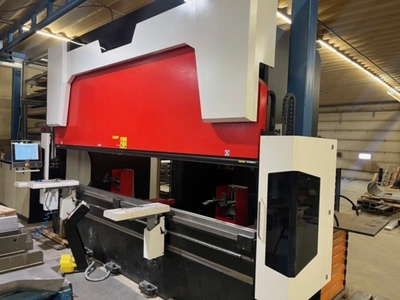

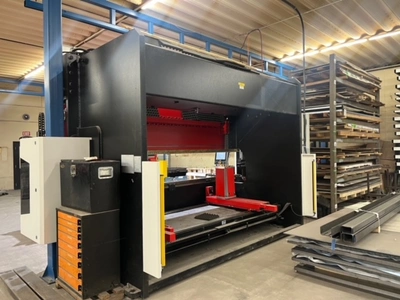

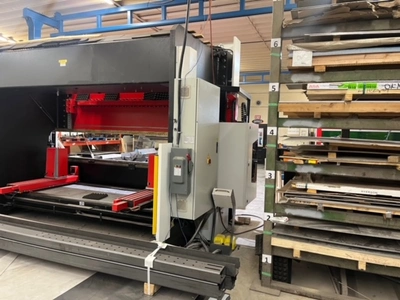

Vartek 330 Ton 9 axis CNC Press Brake

Vartek Advance Form 9 Axis CNC Press Brake

Tonnage                                             330 Overall Length                                   14’ Distance Between Frames               3550 mm Stroke                                                 300 mm Daylight                                              540 mm Throat                                                 500 mm Bed Width                                          120 mm Work height                                       930 mm Main motor                                                    22 kw Approximate dimensions                             5000mm x 2100mm x 3050mm high Approximate weight                                      17,100 kg 9 axis CNC configuration Full 6 axis gauging (X1/X2, R1/R2, Z1/Z2) CNC Crowning system Wila American style upper ram clamping system Wila lower Hyd die clamping OB Holder Extra open height / stroke Laser safe guarding 3 front support arms Graphical CNC control NexT3
