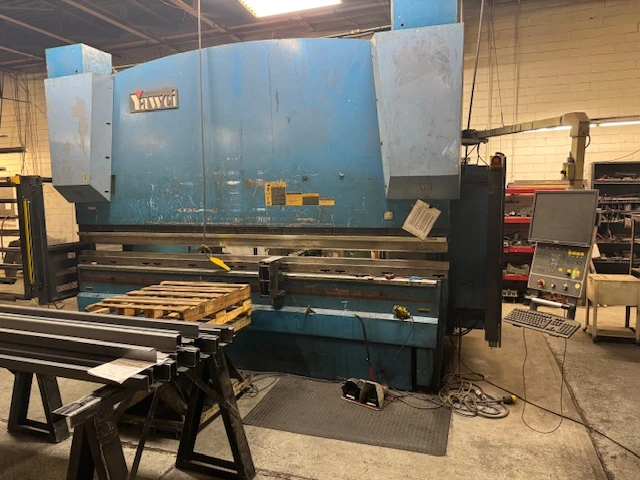

Yawei 400 ton CNC Press Brake with Crowning

2007 400 ton Yawei CNC (5-axis) Press Brake

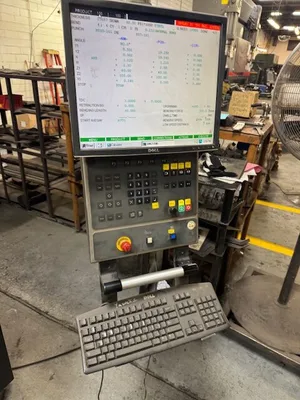

Tonnage 400 Bending length 161.42″ (4100 mm) Ram stroke 14.37″ (365 mm) Throat depth 20.08″ (510 mm) Clearance between bed & ram 20.41″ (620 mm) Bending speed 0.35 in/sec (9 mm/s) Minimum safety distance 0.43″ (11 mm) Maximum stopping time 120 msec Input voltage 380 Phase 3 Frequency 50/60 Hz kVA 35 Full load current 100 A Approximate dimensions 196″ x 100″ x 135″ high Approximate weight 36.5 tons 5-Axis CNC CNC Crowning Digital Tool Library
