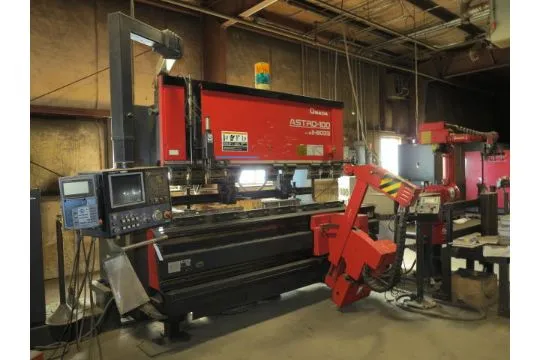

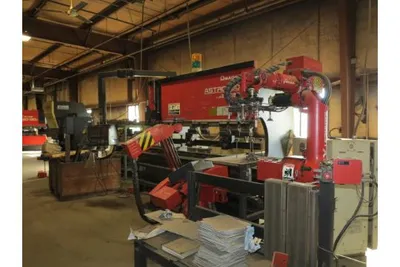

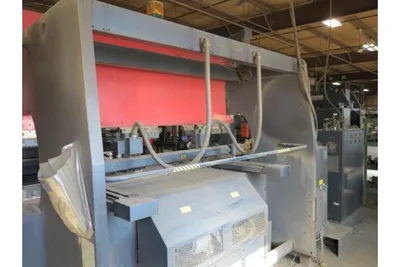

Amada Astro 100 CNC Press 80 ton x 8′ and w/6-axis Robotic Bend Cell

1999  Amada Astro 100 80 ton x 8′ CNC Press Brake and roBIII-8025M 6-Axis Robotic Bending Cell

Amada Earnest X Robotic Loader/Unloader Amada AMNC RML 26R Robotic Control Package Amada AMNC RML 39BM CNC control Amada HB-03 Hand Box handheld pendant controls Capacity 88 ton (80 metric) Overall bed length 98.4″ (2500 mm) Bending length 98.6″ (2505 mm) Distance between housings 86.6″ (2200 mm) Throat depth 15.75″ (400 mm) Stroke 5.91″ (150 mm) Open height 16.54″ (420 mm) Oil Resevoir 18.48 gallons (70 L) Motor 10.1 HP Volts 400-460 / 230 Power required 7 kVA Approximate dimensions 142.7″ x 55.9″ x 92.7″H Approximate weight 13,669 lbs (6200kg) Dual foot pedal controls Shipping dimensions: Amada Press brake: 7′-2″W x 13′-3″L x 8′-11″H, Weight approx. 15,000 lbs Amada Robot arm: 2′-3″W x 4’L x 7′-3″H, Weight approx. 550 lbs Amada Loading table: 2′-11W x 4′-8″L x 4′-7″H, Weight approx. 500 lbs
