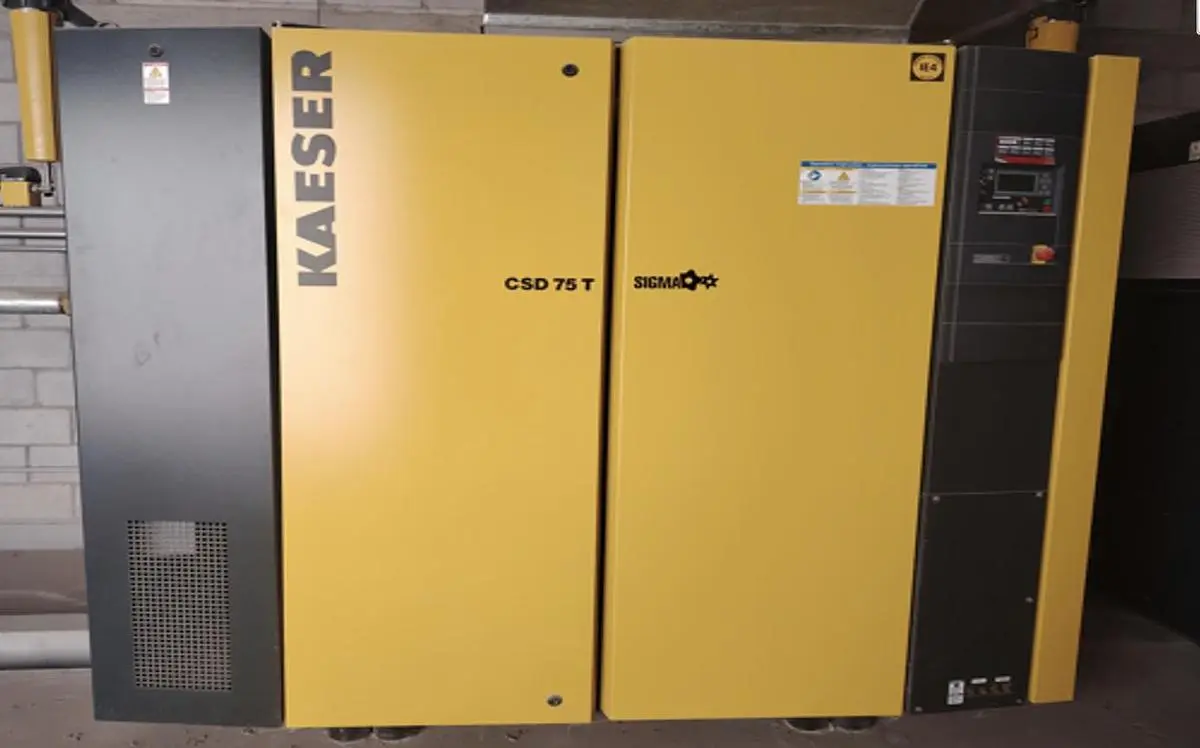

USED 2023 KAESER CSD75T
Description
Specifications:
Horsepower: 125 HP
Flow Capacity: 345 CFM @ 125 PSIG
Maximum Pressure: 125 PSIG
Ambient Temperature Range: 40 – 115 °F
Motor Speed: 3575 RPM
Phases: 3
Frequency: 60 Hz
Voltage: 460/266 V
Full Load Amps: 99 A
Max Motor Amps: 85 A
Short Circuit Rating: 50 kA
Fuse (User Installed): 125 A
Class: 500 V

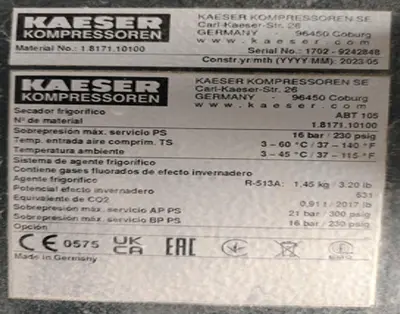

Dryer (Integrated Refrigerated Dryer):
Model: ABT 105
Max Pressure: 230 PSIG (16 Bar)
Air Inlet Temperature: 37 – 140 °F (3 – 60 °C)
Ambient Temperature Range: 37 – 115 °F (3 – 45 °C)
Refrigerant: R-513A (1.45 kg / 3.20 lb)
Condition:
Low Hours Unit
Approximate Service Hours: ~2,900 Hours
Sigma Control Panel with Active Maintenance Tracking
Maintenance Status (From Control Panel):
Oil Filter / Separator Interval: 4000h (Approx. 2922h Used)
Valve Inspection Interval: 12000h (Approx. 10922h Remaining)
Coupling/Belt Inspection: 3000h (Approx. 1922h Remaining)
Motor Bearing Service: 2000h (Approx. 922h Remaining)
Major Bearing Service: 36000h (Approx. 34922h Remaining)
Electrical Maintenance Interval: 9000h
