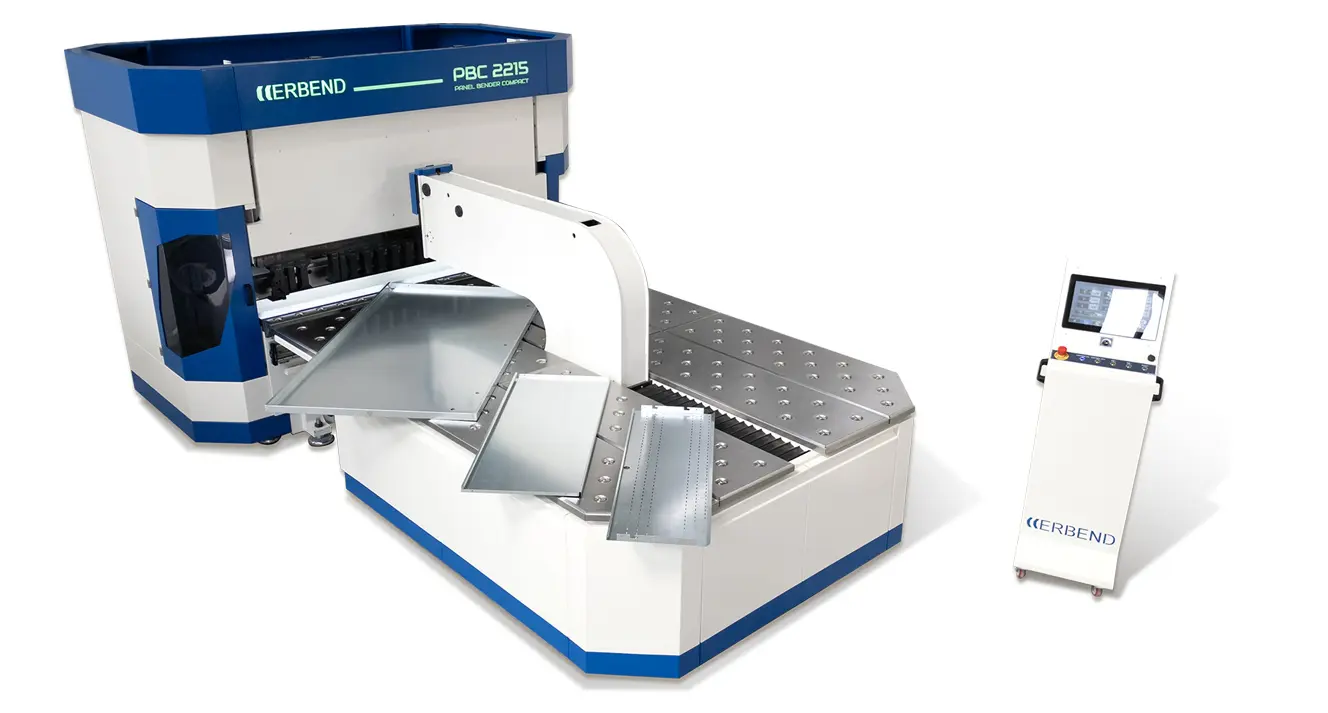

The Erbend PCB Compact Panel Bender is a high-performance, fully automated CNC solution designed for fast and precise sheet metal panel forming. Built for efficiency, the machine utilizes an advanced manipulator system to automatically position, rotate, and bend parts on multiple sides, significantly reducing manual handling and setup time. Equipped with the intuitive ERFOLD control software, operators can easily program complex bend sequences—including hemming, radius bends, and standard folds—while maintaining full visual control of the part profile throughout the process.
With bending speeds as fast as 0.3 seconds per bend and multi-axis CNC control, the PCB Compact delivers consistent, repeatable results across a wide range of materials, including steel, stainless steel, and aluminum. Its compact footprint, robust welded frame, and energy-efficient operation make it ideal for manufacturers producing electrical enclosures, architectural panels, HVAC components, and other precision sheet metal parts.
Max thickness:
14g mild steel
18g stainless
12g aluminium
| Max Thickness | 14g | 14g |
| Bending Length | 100" | 2,540 mm |
| Max Panel Width | 50" | 50" |
| Max Panel Depth/Height | D = 6.7" H = 9.8" | D = 6.7" H = 9.8" |
| Min Sheet Thickness | 0.015" | 0.015" |
| Min Flange Length | Thickness x 10 | Thickness x 10 |
| Bending Time Per Flange | 0.3 | 0.3 |
| # of Axis | 14 | 14 |
| Manipulator Feeding Speed | 1000mm / sec | 1000mm / sec |
| Manipulator Rotation Speed | 180 deg / sec | 180 deg / sec |
| Total Power/Average Consumption | 40kw - 3kw / hour | 40kw - 3kw / hour |
| Operating System | Windows | Windows |
| Control | CNC (Erbend 3D) | CNC (Erbend 3D) |
| Dimensions | 200" x 142" x 106" (Approx. LWH) | 200" x 142" x 106" (Approx. LWH) |
| Weight | 32,500lbs | 32,500lbs |
