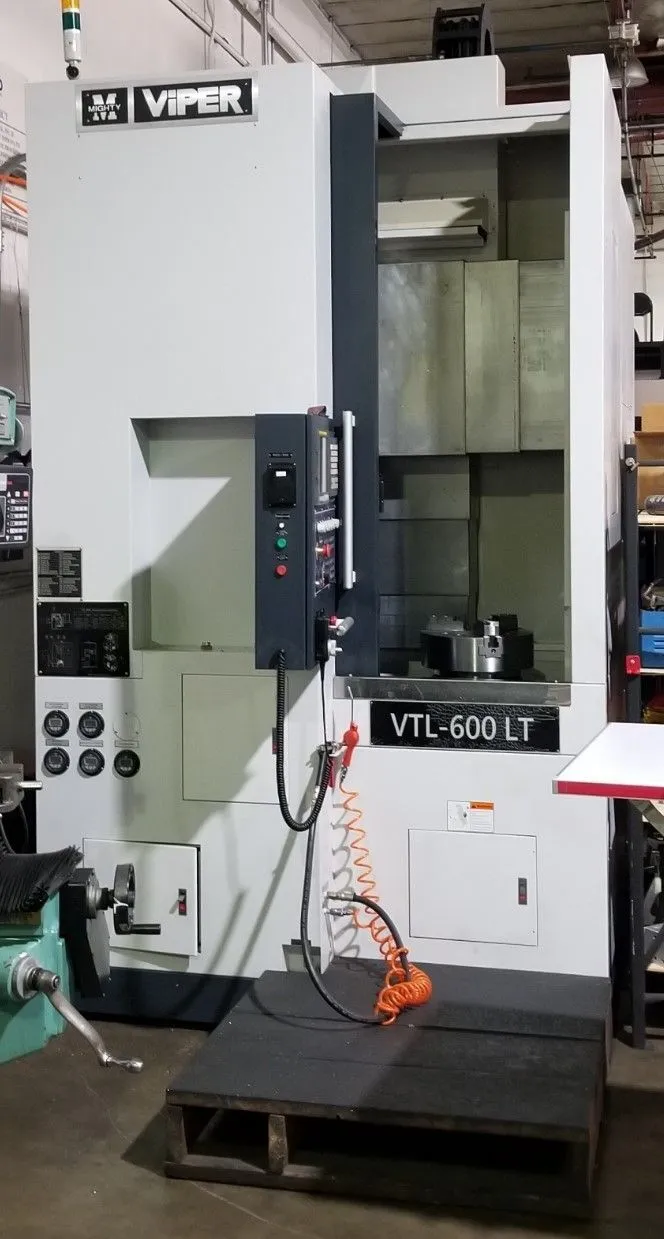

USED 2018 MIGHTY VIPER VTL 600LT
Overview
Description
This 2018 Mighty Viper VTL 600LT Vertical Turret Lathe offers precision and power for heavy-duty machining. Key features: 15" chuck, 12-tool turret, and Fanuc control. Ideal for large-scale turning
Specifications
| Table Dia | 15" | 381 mm |
|---|---|---|
| Swing | 23.6" | 599.44 mm |
| Work Ht-U/R | 15.7" | 398.78 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
Table Diameter 15"
Max. Turning Diameter 23.6"
Max. Swing 27.5"
Max. Turning Height 15.7"
Max. Mass of Work piece 1,650 lbs
Max. Torque of Table 1.921 NM
Max. Cutting Force 10.110 Newton
X axis Stroke 1.57" + 11.81"
Z axis Stroke 15.74"
Rapid Traverse (X axis) 944 inch/min
Rapid Traverse (Z axis) 295 inch/min
Table Speed (2 steps) 1-1,120, 900-2,500 RPM
Turret Capacity 12 Tools
Tool Size 1"
Table Main Motor 50 HP
Turret Motor 7.5 HP
X Axis Motor (AC Servo) 5.4 HP
Z Axis Motor (AC Servo) 9.3 HP
Equipped With
*Specifications subject to buyer verification*
