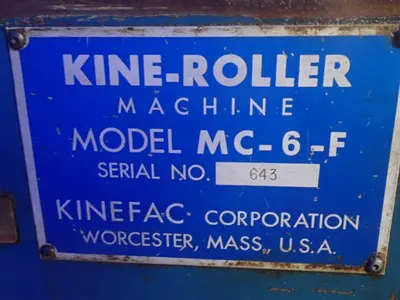

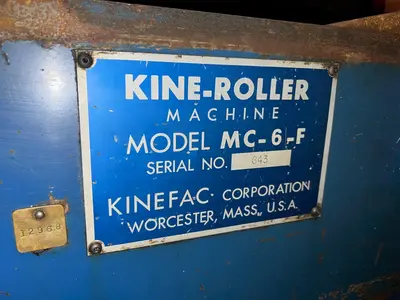

SERIAL ......................... 643

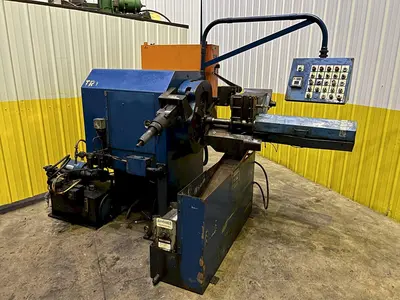

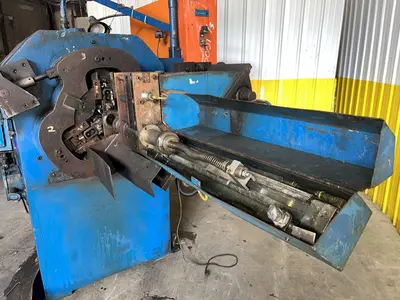

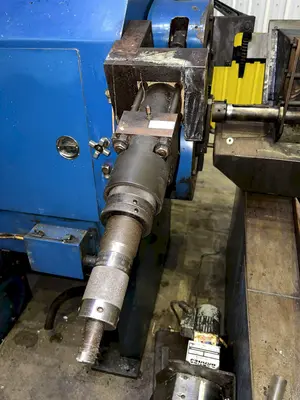

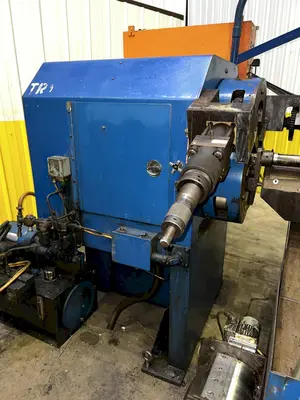

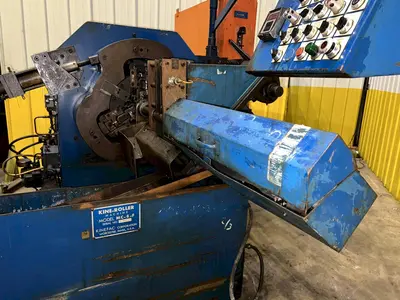

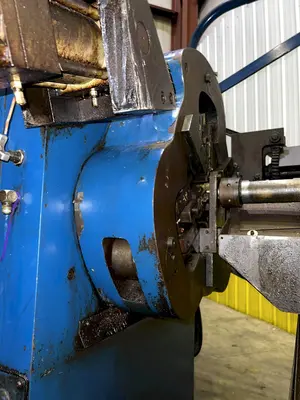

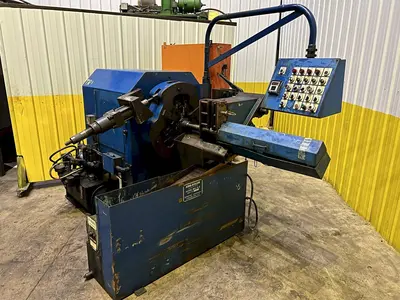

MODEL .......................... MC-6-F
ROLLING AXIS ................... HORIZONTAL
DIAMETER PART CAPACITY ......... 5/8" TO 3"
PART CAPACITY (REAR EJECTING) .. 2-1/2" MAX
SPINDLE DIAMETER ............... 1-1/2

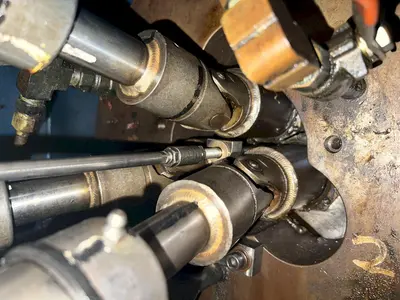

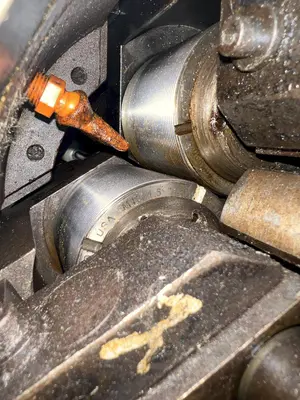

NUMBER OF ROLLING DIES ......... 3
DIE ACTUATION .................. SYMMETRICALLY

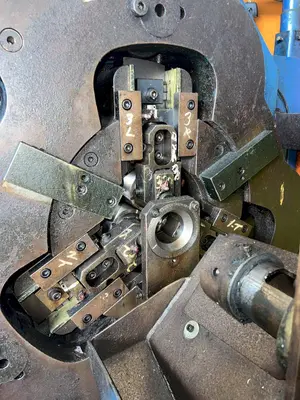

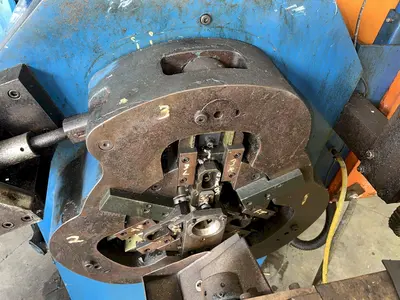

DIE RING ENGAGEMENT ............ OSCILLATING CAMS
DIE DIAMETER ................... 2-3/4" TO 4"
DIE FACE WIDTH ................. 2-5/8"
DIE DRIVE ...................... SPUR GEARS
DIE CENTRALIZATION ............. YES
SINGLE POINT ADJUSTMENT ........ YES
AUTOMATIC PART EJECTOR ......... YES, PNEUMATIC

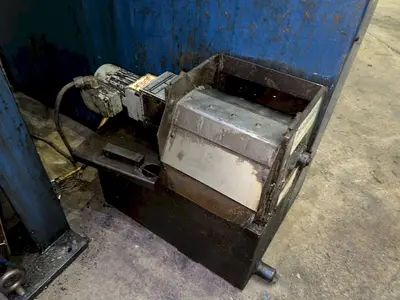

COOLANT SYSTEM ................. YES

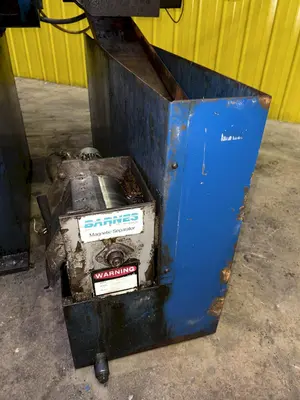

BARNES MAGNETIC SEPERATOR ...... YES
DRIVE MOTOR .................... 15 HP

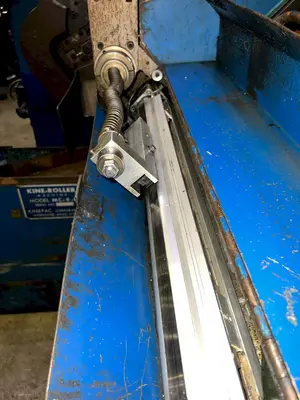

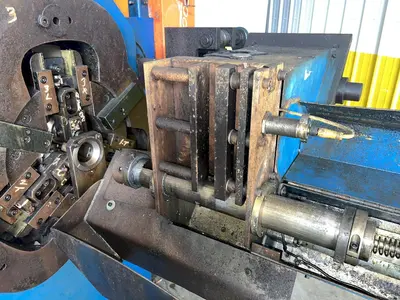

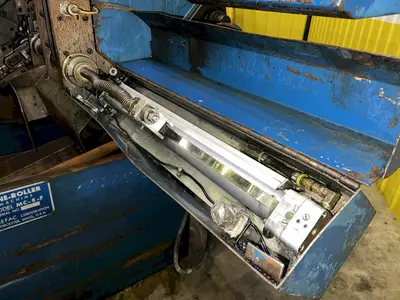

EQUIPPED WITH INFEED SYSTEM
STROKE ......................... 12"

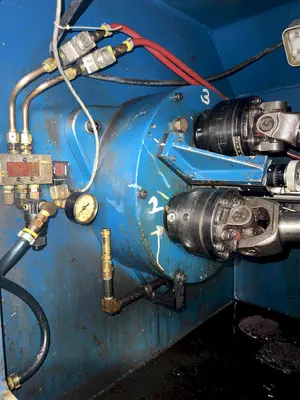

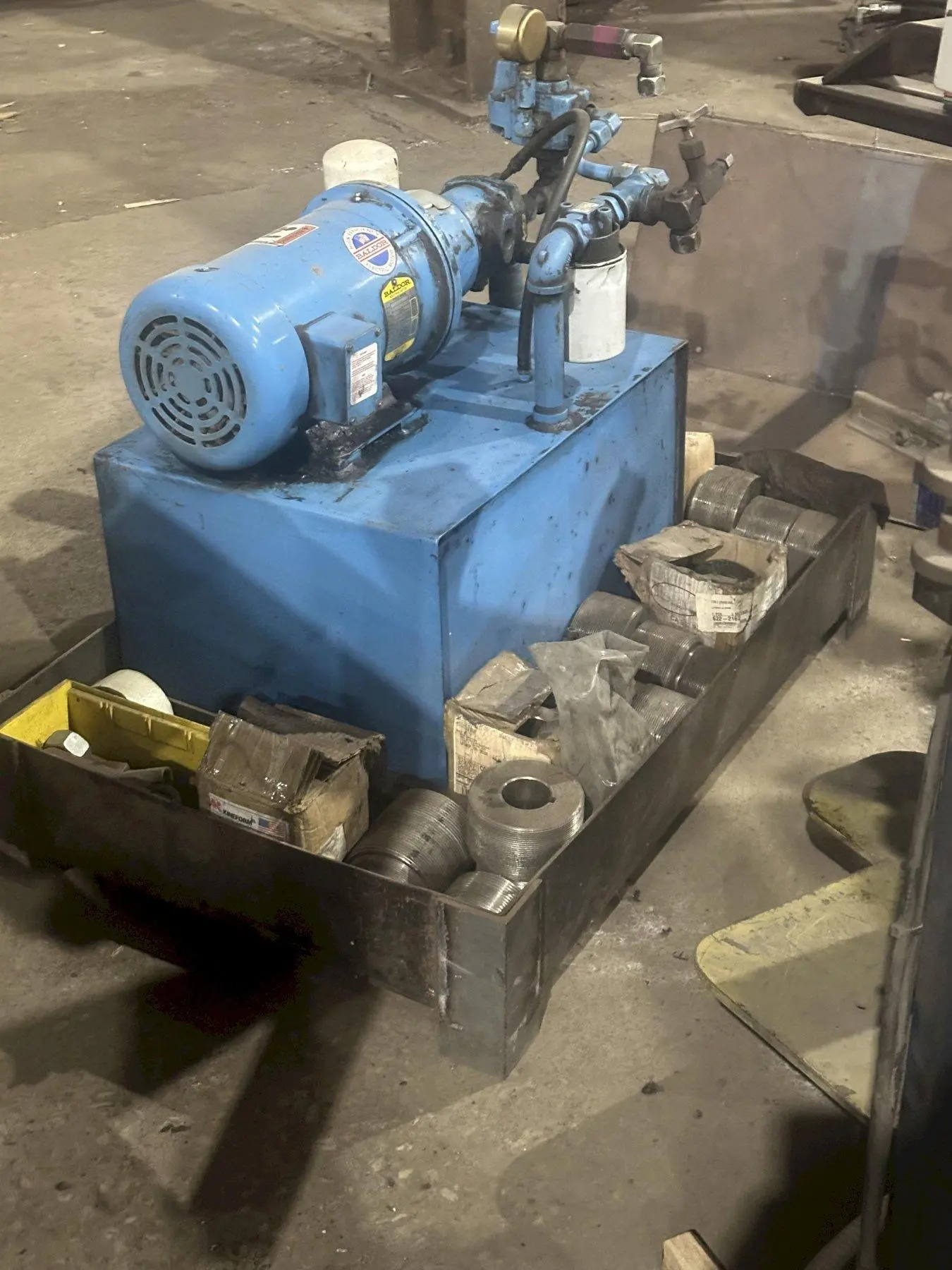

HYDRAULIC PRESSURE ............. 1600 PSI

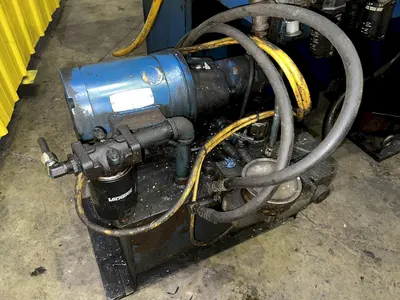

HYDRAULIC MOTOR ................ 5 HP
Brand
KINEFAC
Type
Thread Rollers
Stock No.
17073
