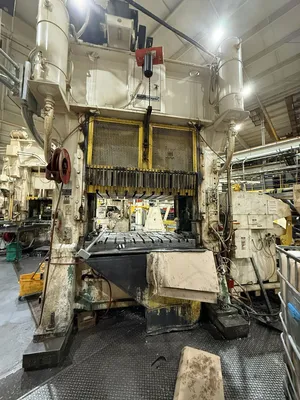

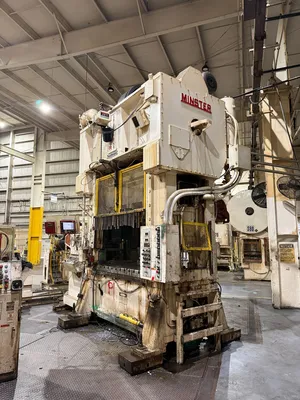

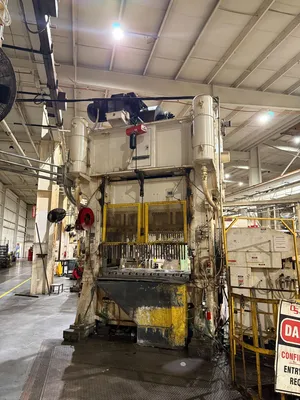

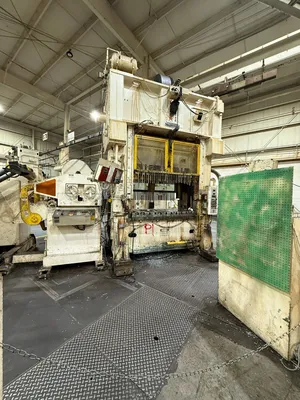

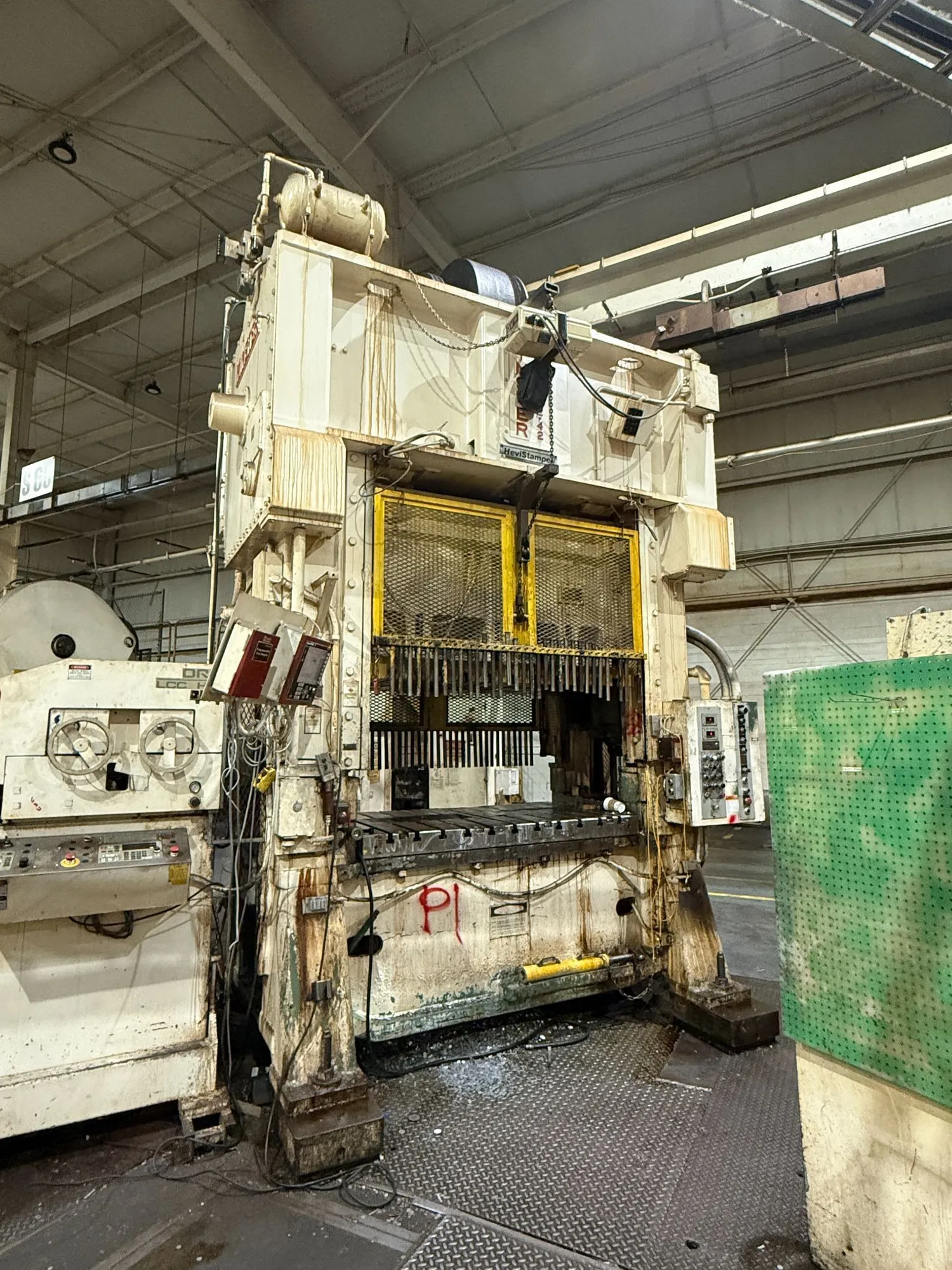

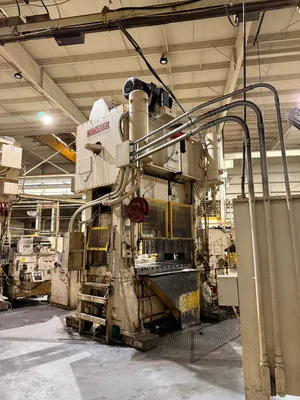

Minster 200 Ton HeviStamper Straight Side Mechanical Press, 72" x 42" Bed Area, 10" Stroke, 0 - 60 SPM, & 28" Shut Height
| Tonnage | 200 T | 181.437 t |
| Stroke | 10" | 254 mm |
| Shut Height | 28" | 711.2 mm |
| Bed area (Left to right) | 72" | 1,828.8 mm |
| Bed area (Front to back) | 42" | 1,066.8 mm |
| SPM min. | 0 strokes/min. | 0 strokes/min. |
| SPM max. | 60 strokes/min. | 60 strokes/min. |
| Adjustment | 6" | 152.4 mm |
Model Number: E2-200-72-42
Bed Area: 72” x 42”
Slide Area: 72” x 42”
Stroke: 10”
Strokes per Minute: 0 - 60
Shut Height: 28” over bed
Shut Height: 22” over bolster plate
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 26” wide approx..
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Hydraulic Tie Rod Nuts
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Valve
8 Point Gibbing
Floor Standing
Motors and Controls

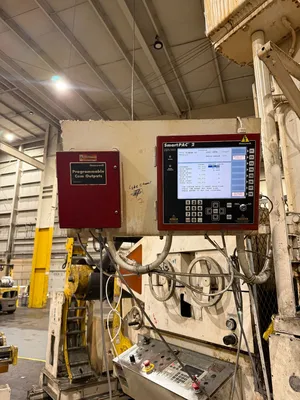

Wintriss Smart Pac 2 Press Control
Wintriss Resolver
Wintriss Die Protection
Floor Standing Console Mounted
AC Variable Speed Drive and Motor
