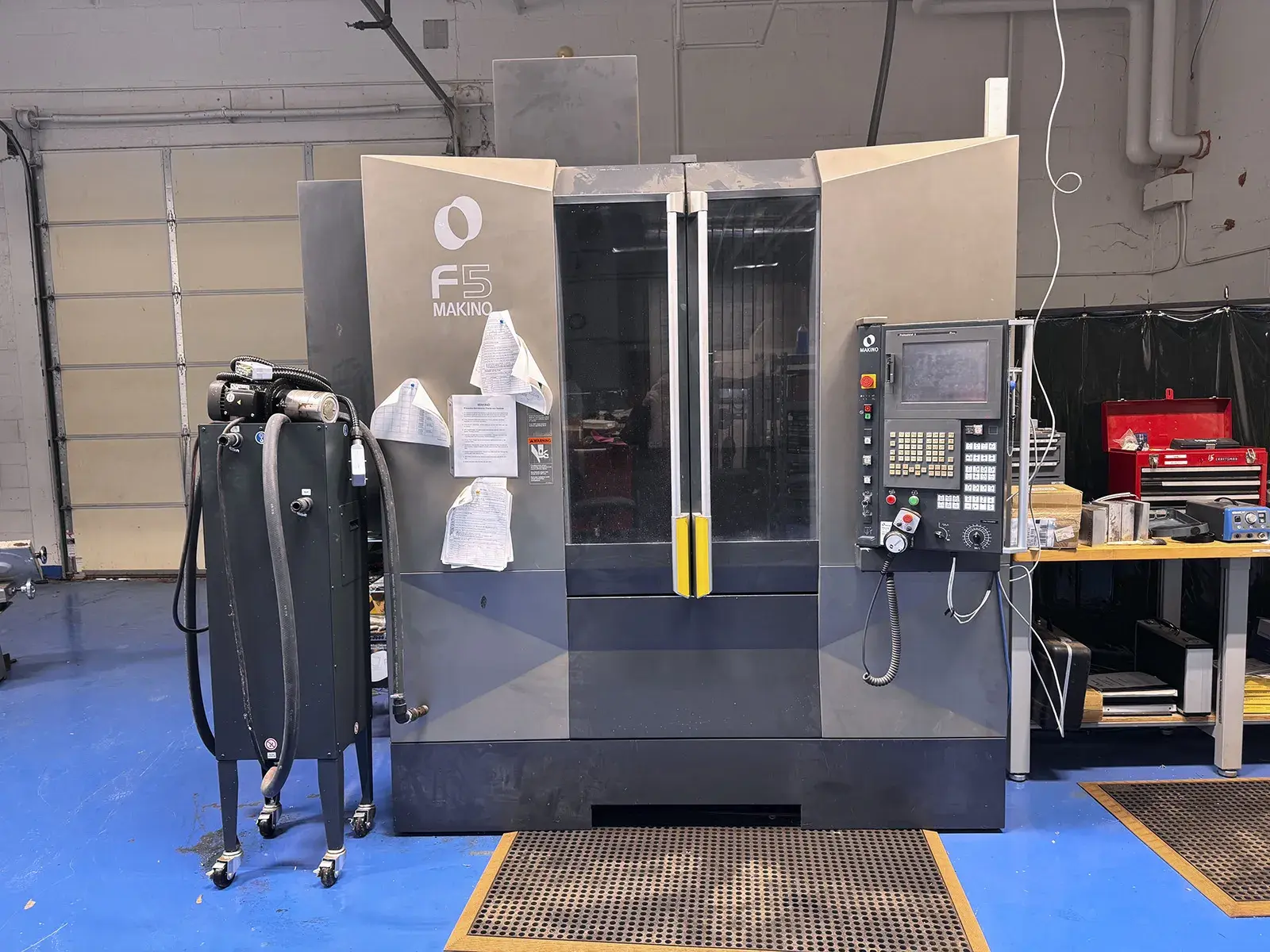

2012 MAKINO F5 Vertical Machining Center with Professional 5 CNC Control and laser tool setter. Features include 39.37" x 19.68" table, 30 station tool changer, and low hours. Includes coolant tank, pump, and chip conveyor.
| X | 35.4" | 899.16 mm |
| Y | 19.7" | 500.38 mm |
| Z | 17.7" | 449.58 mm |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 39.4" | 1,000.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (Makino Professional 5) | CNC (Makino Professional 5) |
Table Size:
39.37" X 19.68"
X-Axis Travel:
39.4 "
Y-Axis Travel:
19.7 "
Z-Axis Travel:
17.7 "
Spindle To Table Distance:
5.9" - 23.63"
Table Capacity:
2204 LBS
Rapid Traverse Rate (X/Y/Z):
787 IPM
Maximum Cutting Feed Rate:
0-787 IPM
Tool Changer Capacity:
30 Station Automatic Tool Changer
Tool Change Time:
1.3 Seconds Tool To Tool
Max Tool Length:
11.81"
Max Tool Diameter (Adjacent Empty / Adjacent Occupied):
4.72" / 4.48
Max Tool Weight:
17.6 Lbs.
Spindle Drive:
20.4/14.7 HP
Very Low Hours
Professional 5 CNC Control
Laser Tool Setter
Coolant Tank & Pump
Chip Conveyor
