| Swing | 27.56" | 700.02 mm |
| Machining Length | 33.46" | 849.88 mm |
| # Axis | 3 | 3 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 3.54" | 89.916 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 18.11" | 459.99 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P100L THINC) | CNC (Okuma OSP-P100L THINC) |
Specifications (subject to buyer verification):
Swing Over Bed: 27.56"
Swing Over Cross Slide: 16.93"
Maximum Turning Diameter: 18.11"
Distance Between Centers: 33.46"
Maximum Machining Length: 33.46"
X-Axis Travel: 13"
Z-Axis Travel: 33.46"
C-Axis Indexing: 0.001 Degree
Spindle Nose: A2-8
Spindle Bore: 3.54"
Spindle Speed: 3,200 RPM
Spindle Motor: 40 HP

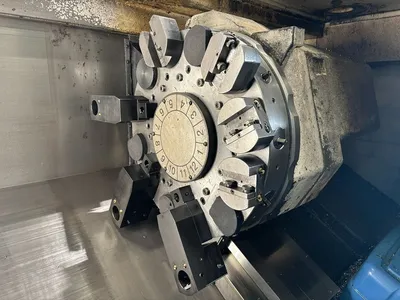

Turret Capacity: 12 Stations
Live Tooling Speed: 2,000 RPM
Rotary Tool Motor: 7.5 HP
Tailstock Taper: MT-5
Rapid Traverse Rates X/Z: 591 / 787 IPM
Equipped With (subject to buyer verification):

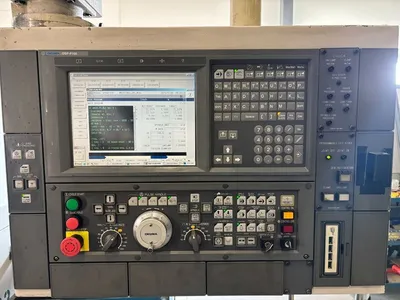

Control: Okuma OSP-P100L THINC CNC Control

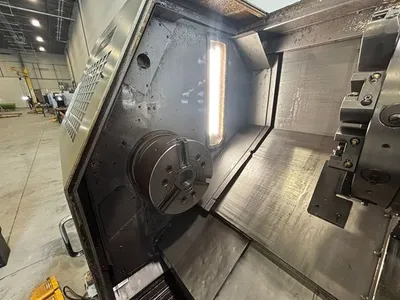

Chuck: 15" Kitagawa B215 Hydraulic Chuck
Connectivity: Dual USB Ports and Ethernet/LAN Interface
Programming: One-Touch IGF Conversational Programming
Thermal Management: Okuma Thermo-Friendly Concept
Live Tooling: 3-Axis Multitasking Capability
Monitoring: MacMan Productivity Management System
Tailstock: Programmable Tailstock Body and Quill
Tooling Interface: VDI-50 Bolt-On Turret
