| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 17.72" | 450.09 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 20" | 508 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 4 | 4 |
| Control | CNC (Okuma OSP-E100M) | CNC (Okuma OSP-E100M) |
| Weight | 15,500 lbs | 15,500 lbs |
Specifications (subject to buyer verification):
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: CAT 40
X-Axis Travel: 40"
Y-Axis Travel: 20"
Z-Axis Travel: 17.72"
Table Size: 48" x 20"
Rapid Traverse Rates: 1,417 IPM (X/Y), 1,181 IPM (Z)
Tool Changer (ATC): 20-Station
Power Requirement: 220V / 3-Phase
Machine Weight: Approx. 15,500 lbs
Equipped With (subject to buyer verification):

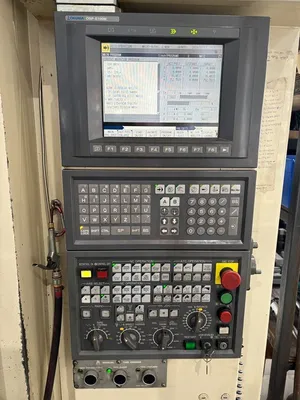

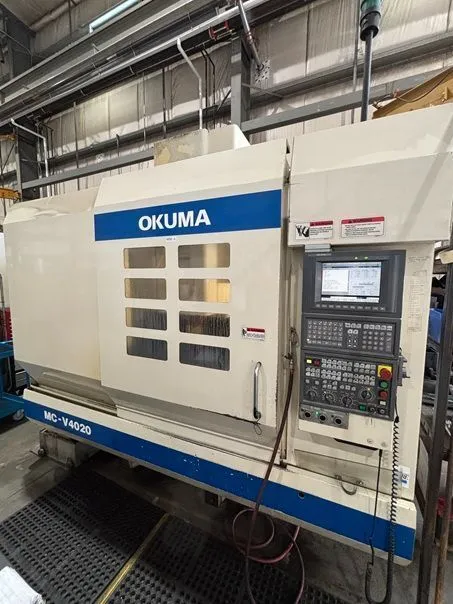

Okuma OSP-E100M CNC Control

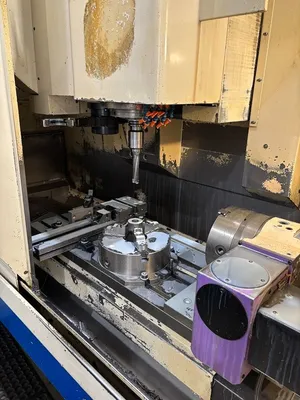

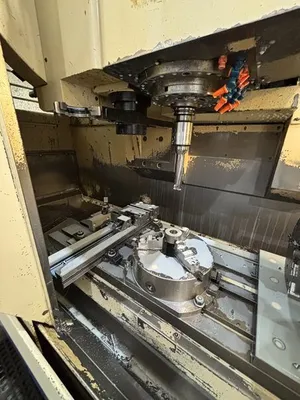

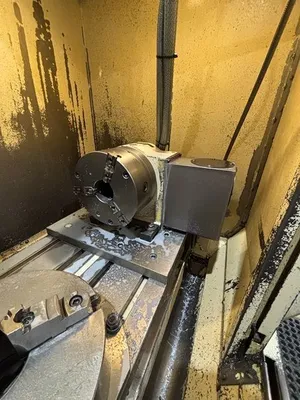

Included 4th Axis: Fully integrated with 10" Chuck
Axis Type: Linear Guideways

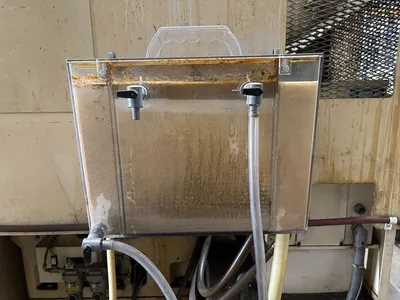

Coolant System: High-Pressure Coolant (HPC)

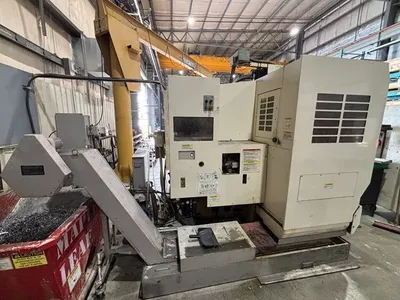

Chip Management: Automatic Chip Conveyor
Operator Interface: Remote MPG Handwheel
