| Swing | 16.92" | 429.77 mm |
| Machining Length | 39.37" | 1,000 mm |
| # Axis | 2 | 2 |

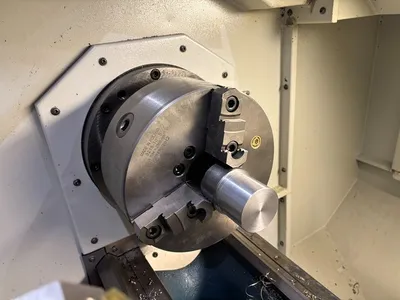

| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.08" | 52.832 mm |
| Power | 12.5 hp | 9.3 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 16.92" | 429.77 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Siemens Sinumerik 828D) | CNC (Siemens Sinumerik 828D) |
| Weight | 5,620 lbs | 5,620 lbs |
Specifications (subject to buyer verification):
Swing Over Bed: 16.92"
Swing Over Cross Slide: 7.87"
Distance Between Centers: 39.37"
Bed Width: 12.0"
Spindle Nose: ASA A2-5"
Spindle Bore: 2.08"
Spindle Speed Range: 4 to 4,000 RPM
Main Motor Power: 12.5 HP
Transmission: Direct Drive

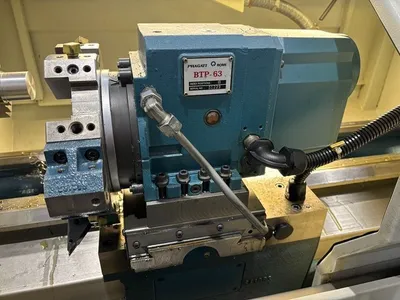

Turret Type: 8-Position Automatic Vertical Disc Turret
Tool Shank Size: 0.75" x 0.75"
Boring Bar Max Diameter: 1.25"
X-Axis Travel: 8.66"
Z-Axis Travel: 41.92"
Rapid Traverse X and Z: 393.7 IPM
Quill Diameter: 2.36"
Quill Stroke: 4.72"
Tailstock Taper: MT-4
Approximate Weight: 5,620 lbs
Equipped With (subject to buyer verification):

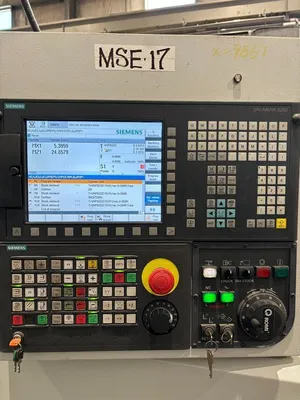

Control: Siemens Sinumerik 828D CNC Control
Conversational: ShopTurn Conversational Programming

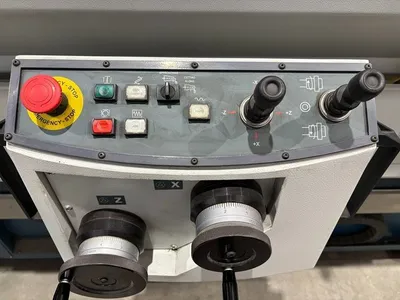

Operation Mode: Manual Handwheels for Teach-In Operation

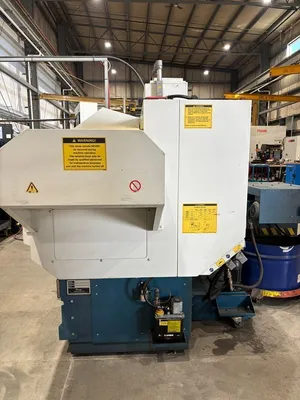

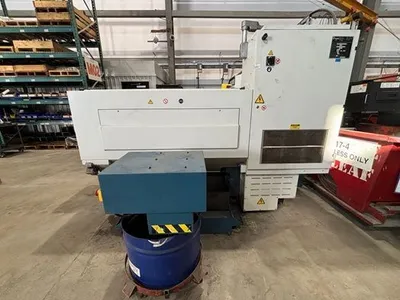

Chip Management: Rear Discharge Hinged Belt Chip Conveyor
Tailstock: Manual Body Positioning with Lever Lock
Tooling: 8-Station Automatic Turret

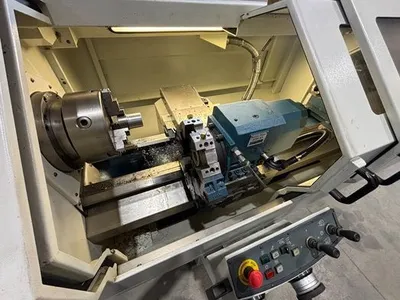

Safety: Full Enclosure with Interlocked Sliding Doors
