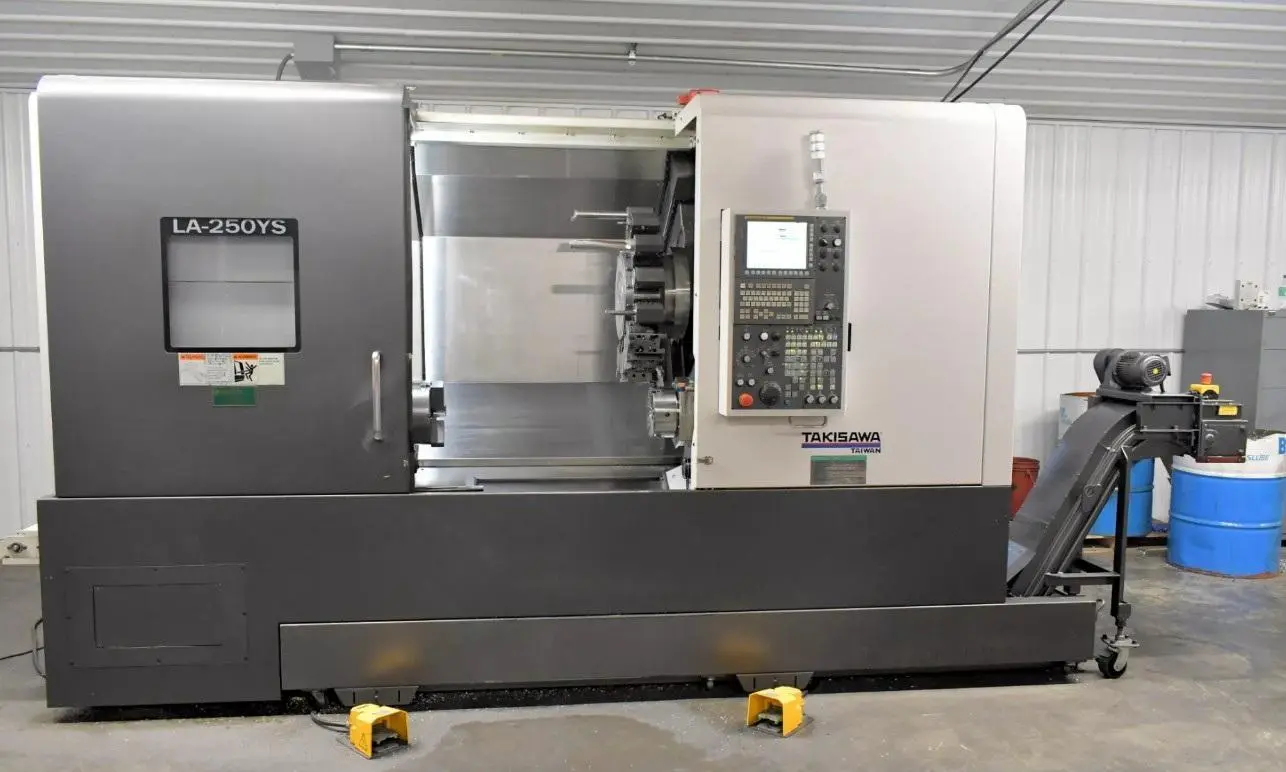

USED 2018 TAKISAWA LA-250YS

Fanuc 0i-TF CNC Control

Live Tooling

Y Axis

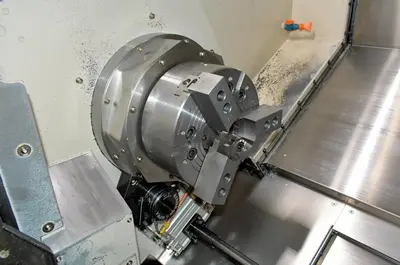

Sub Spindle

Chip Conveyor
The Takisawa LA-250YS is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.

CNC Control: yes

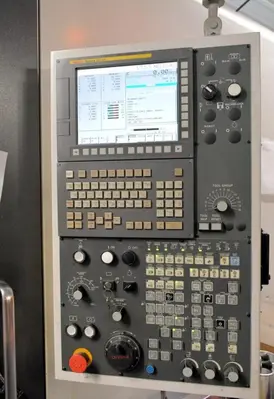

Control Type: Fanuc 0i-TF
# Axis: 6
Swing: 23.6"
Turning Diameter: 14.6"
Center Distance: 43.11"
Chuck Size: 10"
Bar Capacity: 3.05"
X Axis Travel: 10.6"
Y Axis Travel: 3.92"
Z Axis Travel: 31.49"
B Axis Travel (Sub Spindle): 28.93"
C1/C2 Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 787/393/797 ipm
Spindle Nose: A2-8
Spindle Speed: 3,500 rpm
Main Motor: 30 hp
Tailstock: no
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 5,000 rpm
Live Tooling Motor: 5 hp

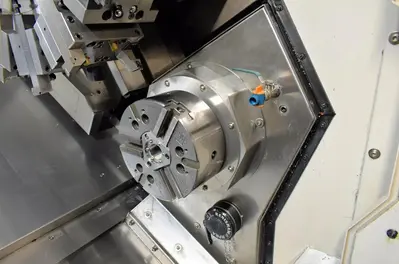

Sub Spindle: yes
Sub Spindle Chuck: 8"
Sub Spindle Bar Capacity: 2"
Sub Spindle Nose: A2-6
Sub Spindle Speed: 3,500 rpm
Sub Spindle Motor (HP): 15 hp

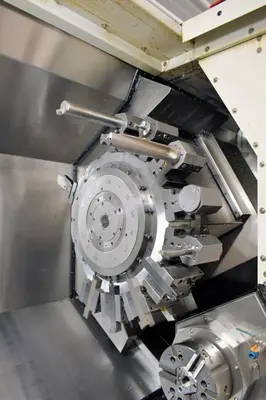

Turret Capacity: 15 Stations
Machine Dimensions: 149" x 73" x 98"
Machine Weight: 17,800 pounds

- Fanuc 0i-TF CNC Control
- Chip Conveyor
- Coolant Tank & Pump
- Parts Conveyor
- Live Tooling
- Y Axis
- Sub Spindle
- Tool Presetter
- Spindle Chiller
- Manual Guide i (Conversational Programming)
- Misc. Static Tooling Available
- (2) Straight Live Tool Holders
- (2) Right Angled Live Tool Holders
- Heavy Duty Box Way Machine
