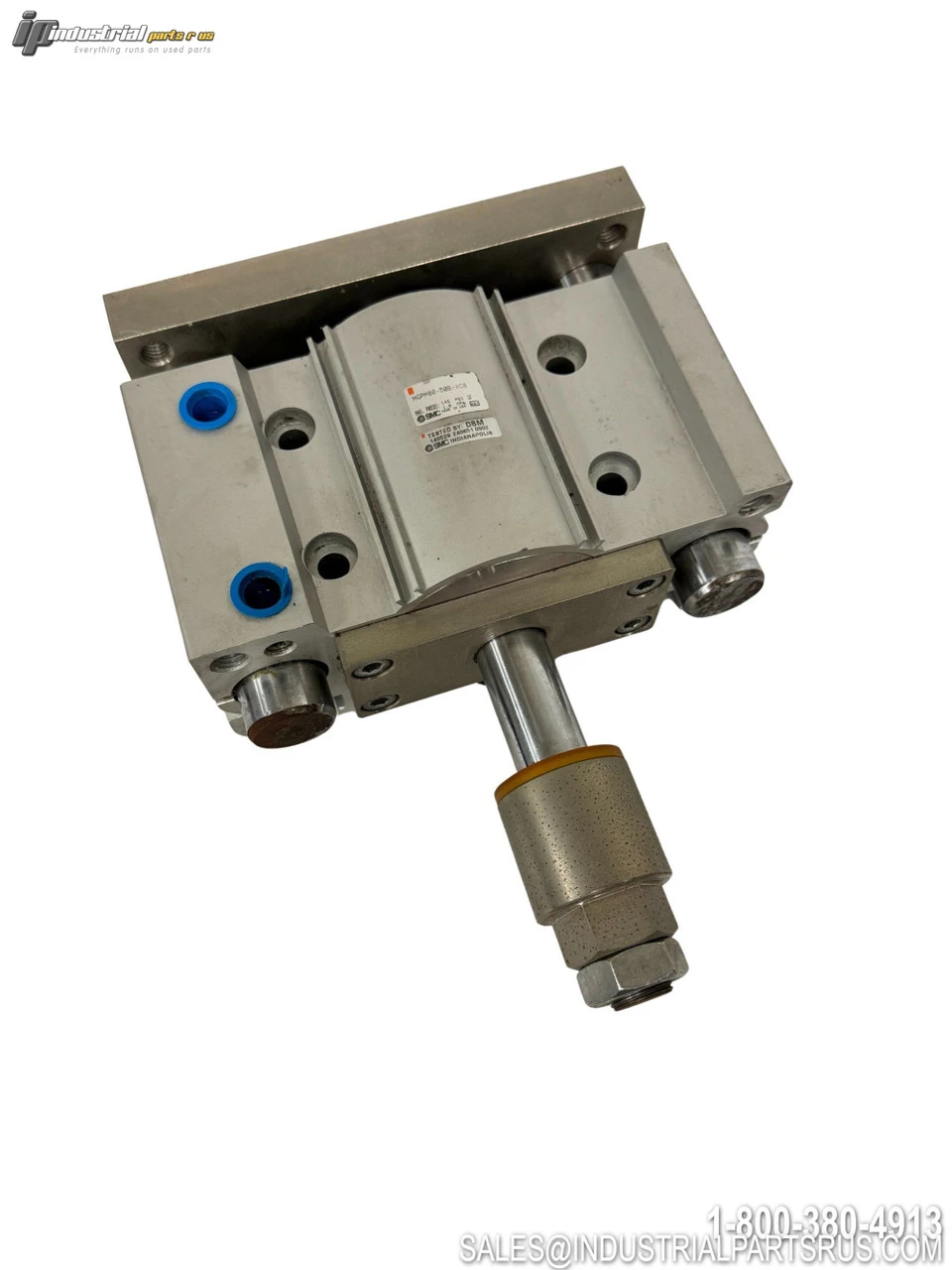

USED SMC MGPM80-50B-XC8

The SMC MGPM80-50B-XC8 is a compact guide cylinder from SMC's MGP series featuring an 80mm bore diameter and 50mm stroke length. This pneumatic cylinder incorporates internal guide shafts to isolate load bearing from the actuator's rod and seals, making it ideal for applications requiring high side load resistance and precise positioning.
Specification
Value
Brand
SMC
Model/Part Number
MGPM80-50B-XC8
Product Type
Pneumatic Cylinder
Series
MGP Compact Guide Cylinder
Bore Diameter
80mm
Stroke Length
50mm
Bearing Type
B - Slide Bearing (Carbon Steel Alloy)
Special Option
XC8 - Adjustable Extension Stroke
Action
Double Acting
Maximum Operating Pressure
1.0 MPa (145 PSI)
Proof Pressure
1.5 MPa (218 PSI)
Minimum Operating Pressure
0.1 MPa (14.5 PSI)
Non-Rotating Accuracy
+/-0.04° (80mm bore)
Ambient Temperature
-10°C to +60°C (14°F to 140°F)
Fluid
Compressed Air
Built-in Magnet
Yes (for auto switch capability)
Stroke Adjustment Range
0-10mm or 0-25mm (XC8 option)
Construction
Compact body with integrated guide shafts
We warranty all items for 30 days from date of purchase.

SKU: AI1187
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 10.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM80-50B-XC8
Shelf: A-12
Model: MGPM80-50B-XC8
MPN: MGPM80-50B-XC8
Type: Pneumatic Cylinder
