USED SMC CDG1BA32-125Z
Overview
Description

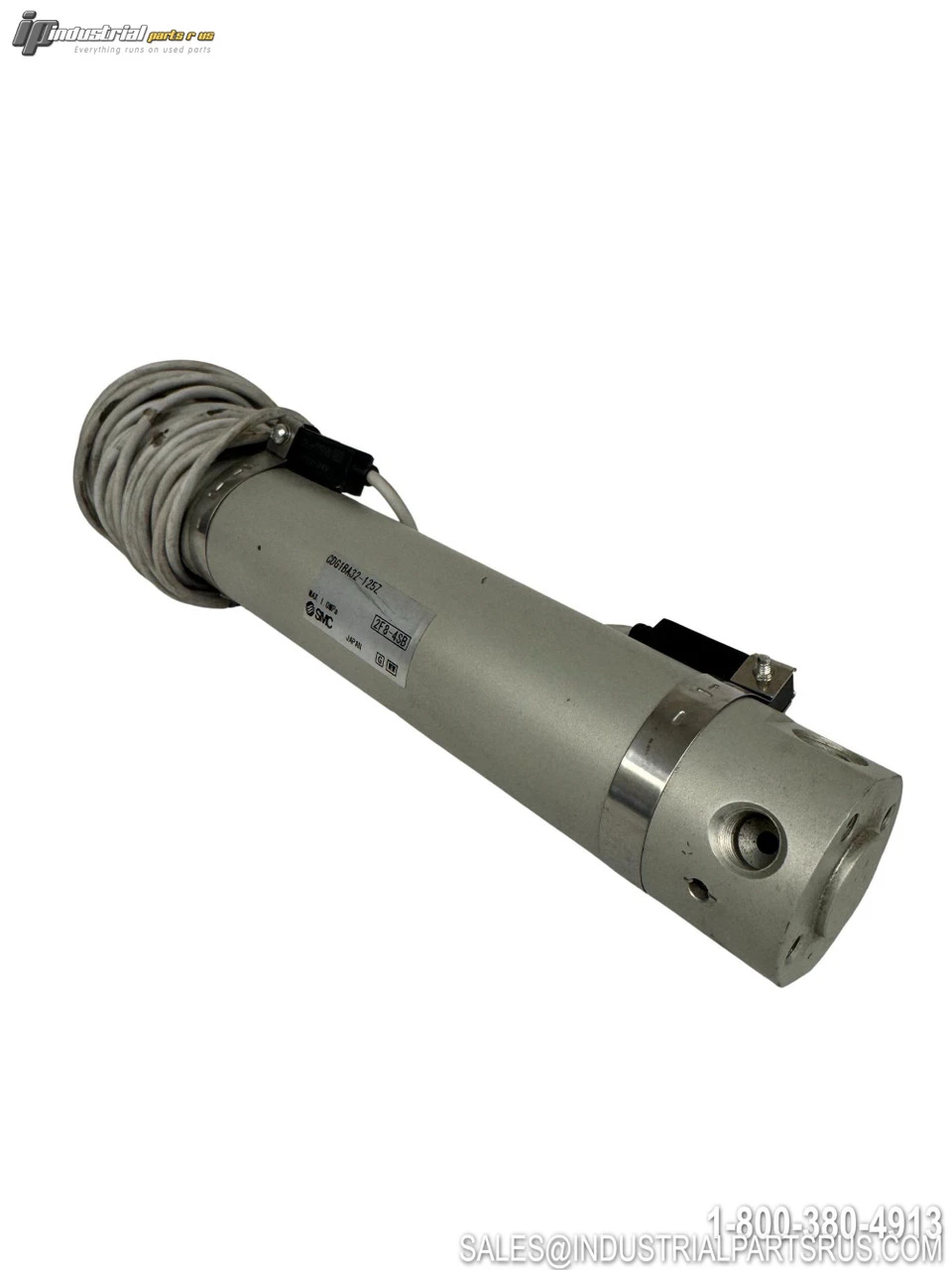

The SMC CDG1BA32-125Z is a compact pneumatic air cylinder from the CG1 series, designed for industrial automation applications requiring precise linear motion control. This double-acting, single rod cylinder features a 32mm bore diameter and 125mm stroke length, providing reliable performance in a variety of manufacturing and automation environments.
Specification
Value
Brand
SMC
Model/Part Number
CDG1BA32-125Z
Series
CG1
Bore Diameter
32mm
Stroke Length
125mm
Cylinder Action
Double Acting
Rod Type
Single Rod
Mounting Type
Basic (B)
Magnet
Built-in (D)
Cushion Type
Air Cushion (A)
Maximum Operating Pressure
1.0 MPa (145 PSI)
Minimum Operating Pressure
0.05 MPa (7.3 PSI)
Proof Pressure
1.5 MPa (218 PSI)
Port Thread Type
Rc
Rod End Thread
Male
Body Material
Aluminum Alloy
Auto Switch Compatibility
Yes
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1186
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDG1BA32-125Z
Shelf: A-14
Bore Diameter: 32 mm
Model: CDG1BA32-125Z
MPN: CDG1BA32-125Z
Type: Pneumatic Cylinder
