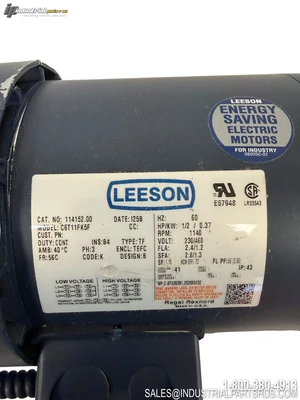

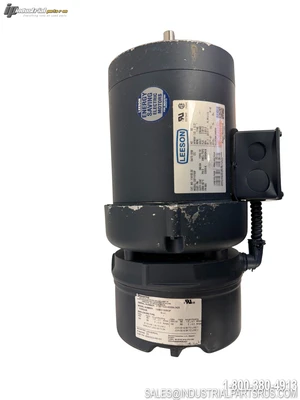

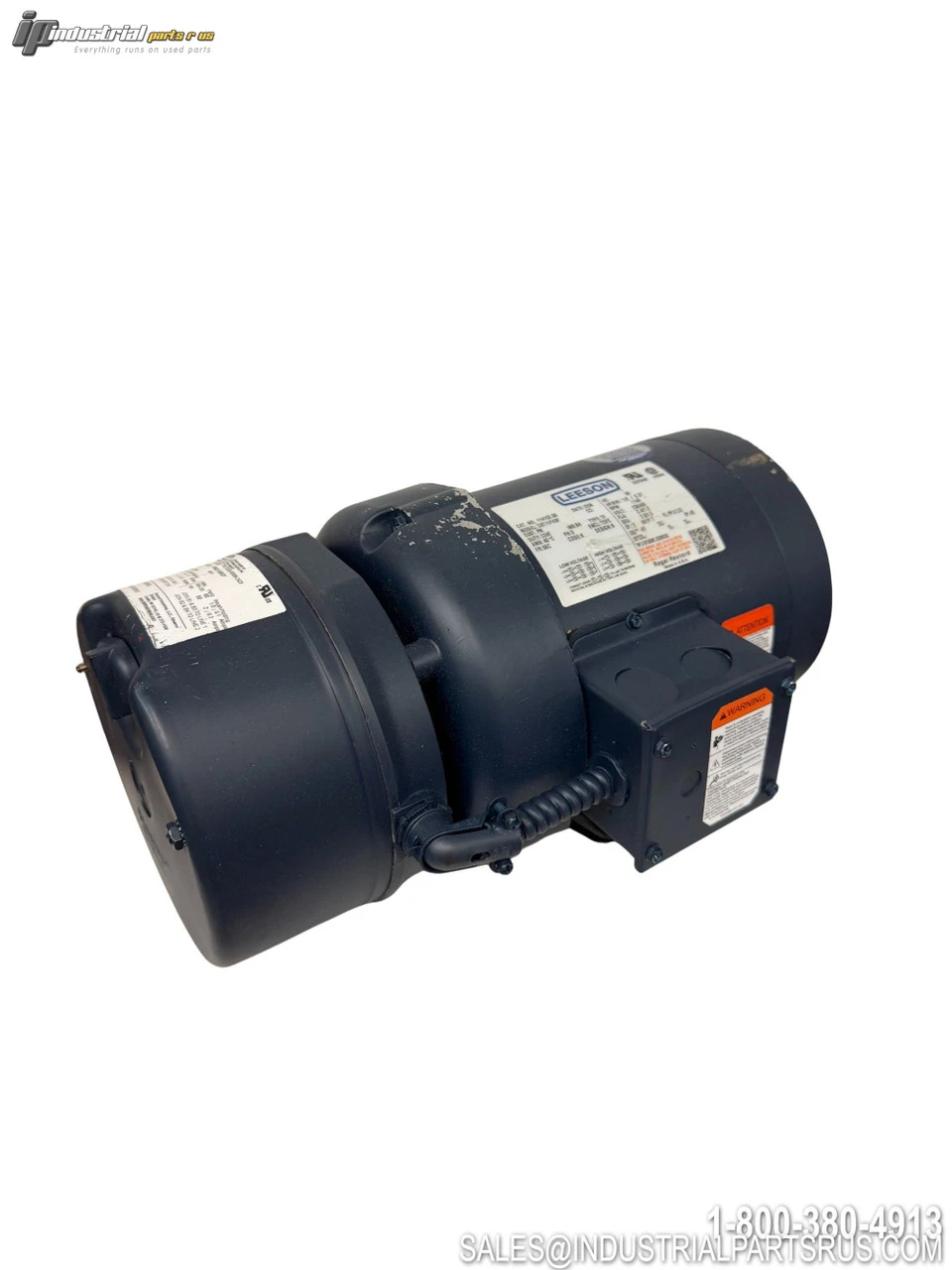

USED LEESON 114152.00

The Leeson 114152.00 is a 1/2 horsepower, three-phase AC brake motor designed for applications requiring fail-safe stopping and holding capabilities. This TEFC (Totally Enclosed Fan Cooled) motor features automatic spring-set braking that engages when power is removed, making it ideal for conveyors, hoists, and packaging equipment.
Specification
Value
Brand
Leeson
Model/Part Number
114152.00
Motor Type
Brake Motor
Horsepower
1/2 HP
Base RPM
1140 RPM
Voltage
208-230/460V
Phase
3
Frequency
60 Hz
Full Load Amps
2.4/1.2A (208-230/460V)
Frame Size
56C
Enclosure Type
TEFC
Mounting Type
C-Face/Rigid Base
Shaft Diameter
5/8"
Service Factor
1.15
Insulation Class
B
Brake Type
Spring Set, Electrically Released
Brake Coil Voltage
230/460VAC
Brake Rating
3 ft-lbs
Catalog Number
C6T11FK5F
We warranty all items for 30 days from date of purchase.

SKU: AI1183
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 21.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 2.4/1.2
Manufacturer: Leeson
Shaft Diameter: 5/8
Enclosure Type: TEFC
Part Number: 114152.00
Shelf: H-4
Model: 114152.00
MPN: 114152.00
Type: AC Motor
