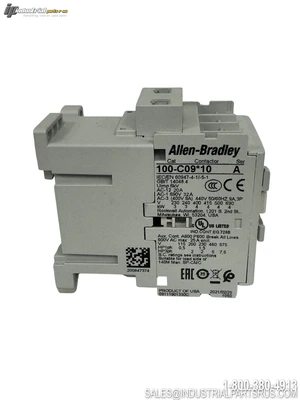

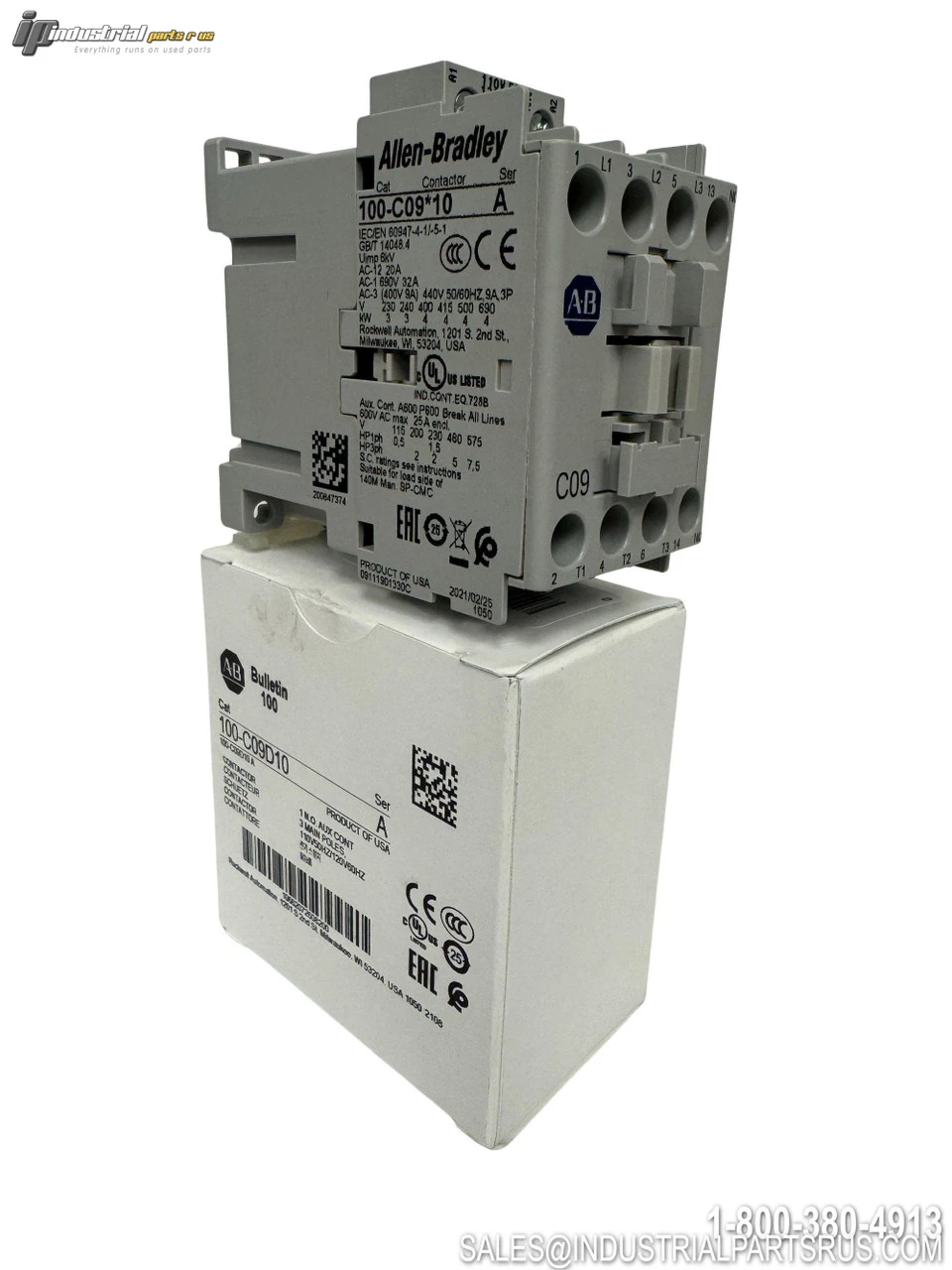

NEW ALAN BRADLEY 100-C09D10

The Allen-Bradley 100-C09D10 is a 3-pole IEC rated contactor designed for motor control applications. This contactor is rated at 2 HP at 230V and 5 HP at 460V with an AC operating coil voltage of 110V 50Hz / 120V 60Hz. It features three normally open poles and one normally open auxiliary contact with screw terminal connections.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-c09d10
Product Type
IEC Contactor
Current Rating
9 Amp
Poles
3
Coil Voltage
110V 50Hz / 120V 60Hz
Auxiliary Contacts
1 Normally Open
Terminal Type
Screw Terminals
Motor Rating
2 HP at 230V, 5 HP at 460V
Power Rating
4 kW
Operating Voltage
230-690 VAC 50Hz, 115-575 VAC 60Hz
Mounting Style
DIN Rail Mount
Weight
0.85 lbs
UPC
662072608203
Standards
IEC/EN 60947-4-1, UL, CE, CSA
We warranty all items for 30 days from date of purchase.

SKU: AI1172
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail Mount
Current Rating: 9 Amp
Manufacturer: Alan Bradley
Part Number: 100-C09D10
Series: 100-C
Shelf: K-5
Model: 100-C09D10
Coil Voltage: 120 VAC
Horsepower: 2 HP at 230V, 5 HP at 460V
MPN: 100-C09D10
Type: Contactor
