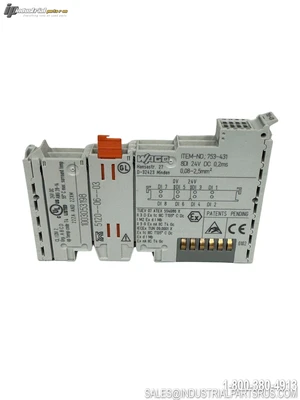

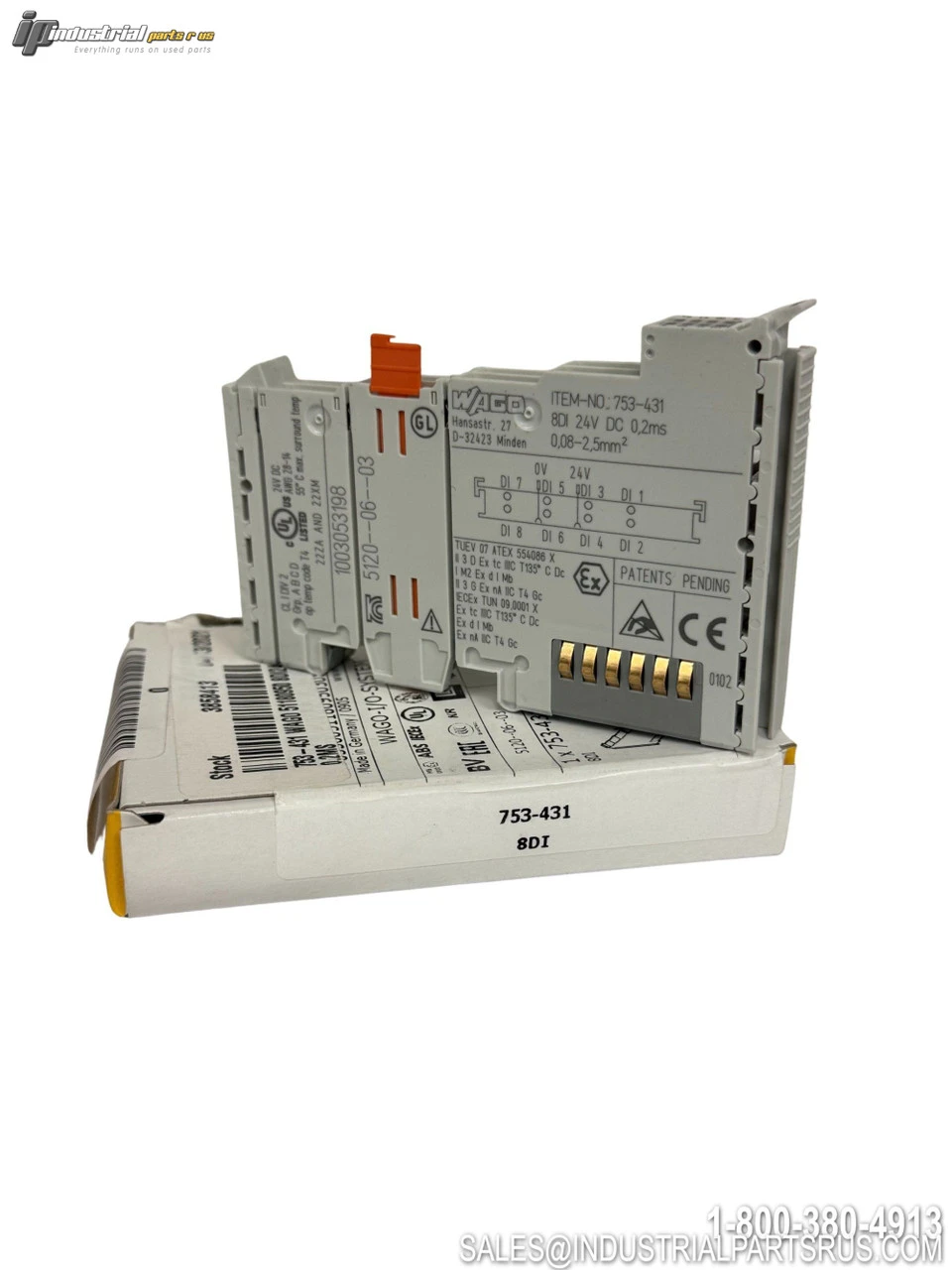

NEW WAGO 753-431

The Wago 753-431 is an 8-channel digital input I/O module designed for the 753 series automation system. This module features 24VDC input voltage with high-side switching, 0.2ms input filtering, and LED status indicators for each channel. It includes CAGE CLAMP spring-cage connections for secure wire termination and mounts on standard DIN-35 rail.
Specification
Value
Brand
Wago
Model/Part Number
753-431
Series
753
Number of Digital Inputs
8
Input Voltage
24VDC
Field Supply Voltage
24VDC (-25 +30%)
System Supply Voltage
5VDC
Input Filter
0.2ms
Input Current (Typical)
2.8mA
Signal Voltage Range (OFF)
-3 to +5VDC
Signal Voltage Range (ON)
15 to 30VDC
Internal Bit Width
8 bits
Connection Type
CAGE CLAMP
Wire Cross Section
0.08-2.5mm² (AWG 28-14)
Sensor Connection
8 x (1-conductor)
Input Characteristic
High-side switching
Isolation
500V system/supply
Indicators
LED Status (A-D, E-H) Green
Housing Material
Polycarbonate/Polyamide 6.6
Color
Light Gray
Mounting Type
DIN-35 Rail
Width
12mm
Height
100mm
Depth
69mm
Weight
48.5g
IP Rating
IP20
Operating Temperature
0°C to +55°C
Storage Temperature
-25°C to +85°C
We warranty all items for 30 days from date of purchase.

SKU: AI1180
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Wago
Part Number: 753-431
Controller Platform: WAGO 753 Series
Shelf: E-7 Tub 6
Model: 753-431
MPN: 753-431
Type: I/O Module
