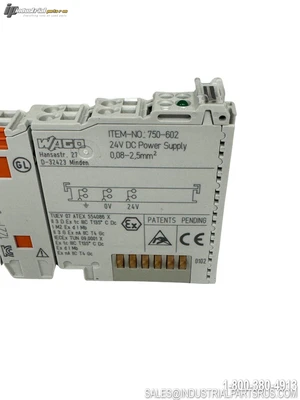

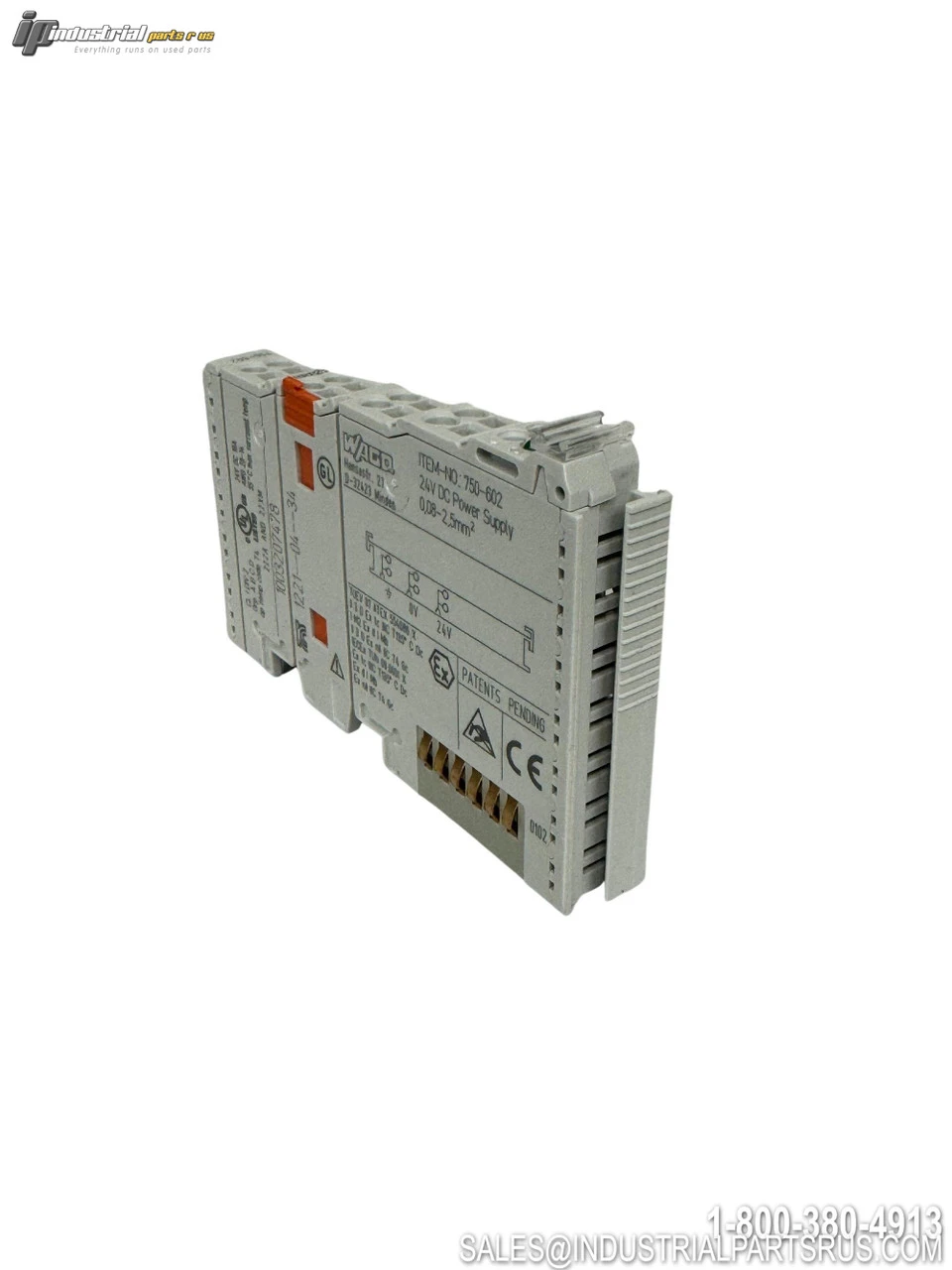

NEW WAGO 750-602

The Wago 750-602 is a passive supply module designed for the WAGO-I/O-SYSTEM 750 series. This module provides galvanically isolated 24VDC field-side power through power jumper contacts, enabling supply distribution to subsequent I/O modules in the system.
Specification
Value
Brand
Wago
Model/Part Number
750-602
Product Type
Power Supply Module
Series
750
Output Voltage
24VDC
Supply Voltage Range
18-31.2VDC
Maximum Current
10A DC
Module Width
12mm
Weight
44.5g
Connection Type
CAGE CLAMP Spring Connections
Wire Cross Section
0.08-2.5 mm² / AWG 28-14
Strip Length
8-9mm / 9-10mm
Operating Temperature
0°C to +55°C
Protection Rating
IP20
Mounting Type
DIN-35 Rail
Module Type
Passive Supply Module
Isolation
Galvanically Isolated
EMC Compliance
EN 61000-6-2 / EN 61000-6-4
Approvals
UL 508, DNV, Marine Applications
System Compatibility
WAGO-I/O-SYSTEM 750 Series
We warranty all items for 30 days from date of purchase.

SKU: AI1178
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Wago
Enclosure Type: IP20
Part Number: 750-602
Shelf: K-51
Model: 750-602
MPN: 750-602
Type: Power Supply
