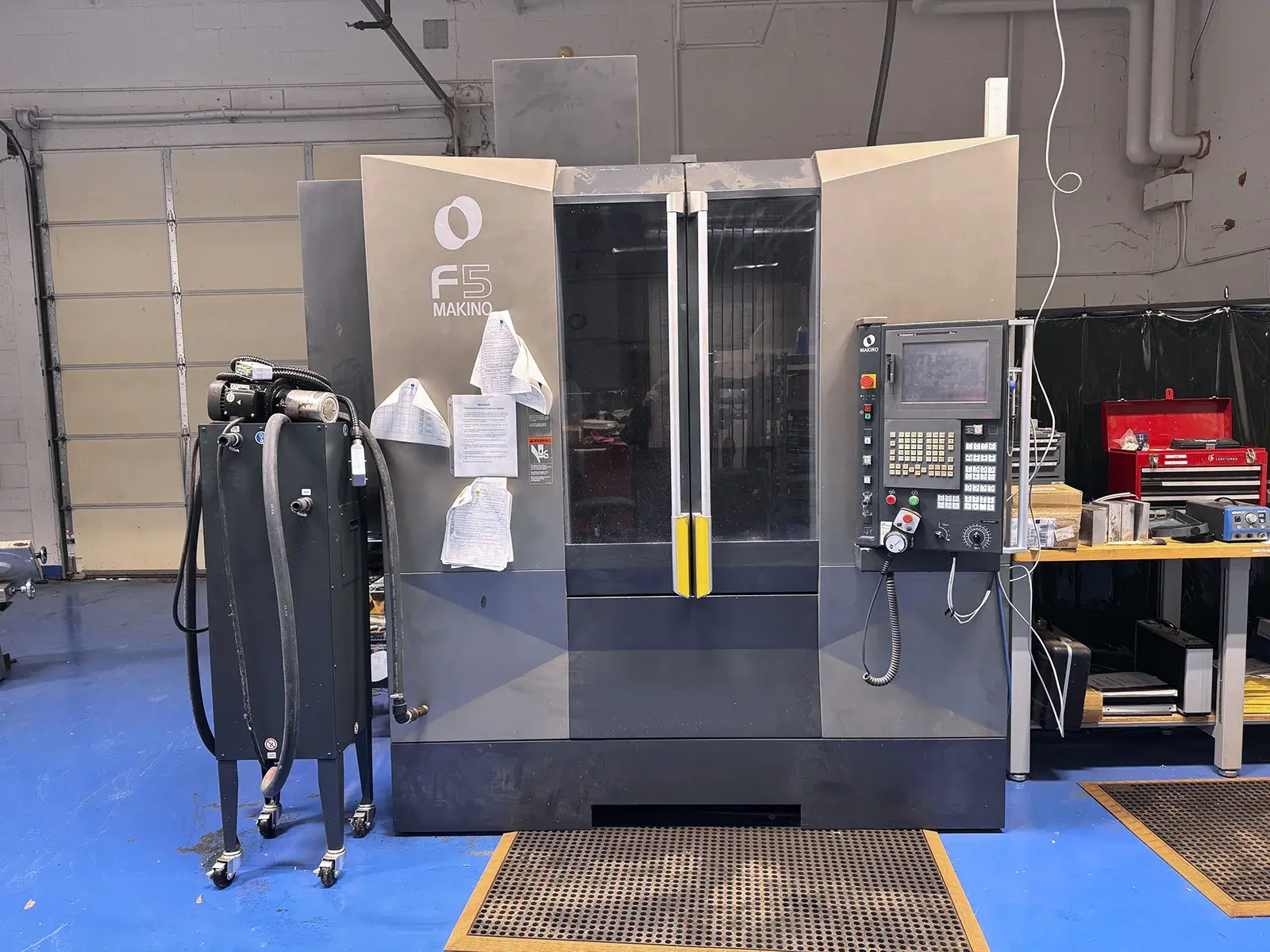

USED 2012 MAKINO F5

Very Low Hours! Laser Tool-Setter!
Boost precision manufacturing with this Makino F5 Vertical Machining Center (2012) featuring Professional 5 control. Built for high-speed, rigid performance, it excels in complex 3D contouring, hard milling, and graphite machining. Ideal for die/mold, aerospace, and medical industries, it delivers superior surface finishes, tight tolerances, and efficient cycle times for high-accuracy production of complex components.

Table Size: 39.37" x 19.68"
X-Axis Travel: 39.4 "
Y-Axis Travel: 19.7 "
Z-Axis Travel: 17.7 "
Spindle to Table Distance: 5.9" - 23.63"
Table Capacity: 2204 LBS
Rapid Traverse Rate (X/Y/Z): 787 IPM
Maximum Cutting Feed Rate: 0-787 IPM
Tool Changer Capacity: 30 Station Automatic Tool Changer
Tool Change Time: 1.3 Seconds Tool to Tool
Max Tool Length: 11.81"
Max Tool Diameter (Adjacent Empty / Adjacent Occupied): 4.72" / 4.48
Max Tool Weight: 17.6 Lbs.
Spindle Drive: 20.4/14.7 HP

Only 529 Cutting Hours

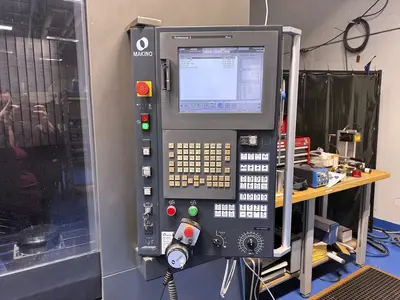

Professional 5 CNC Control
20000 RPM Spindle
HSK-A63 Taper Spindle
Laser Tool Setter
(30) Automatic Tool Changer
Through Spindle Air
Rigid Tapping
Super Geometric Intelligence
Fixed Manual Pulse Generator
Coolant Tank & Pump
Chip Conveyor
