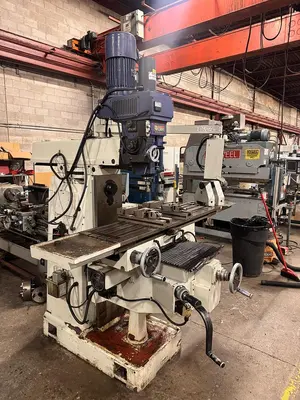

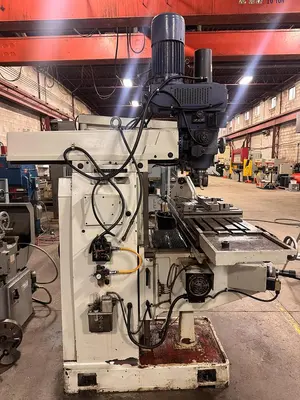

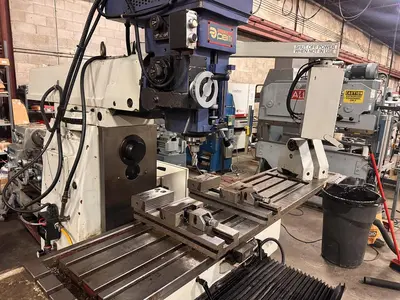

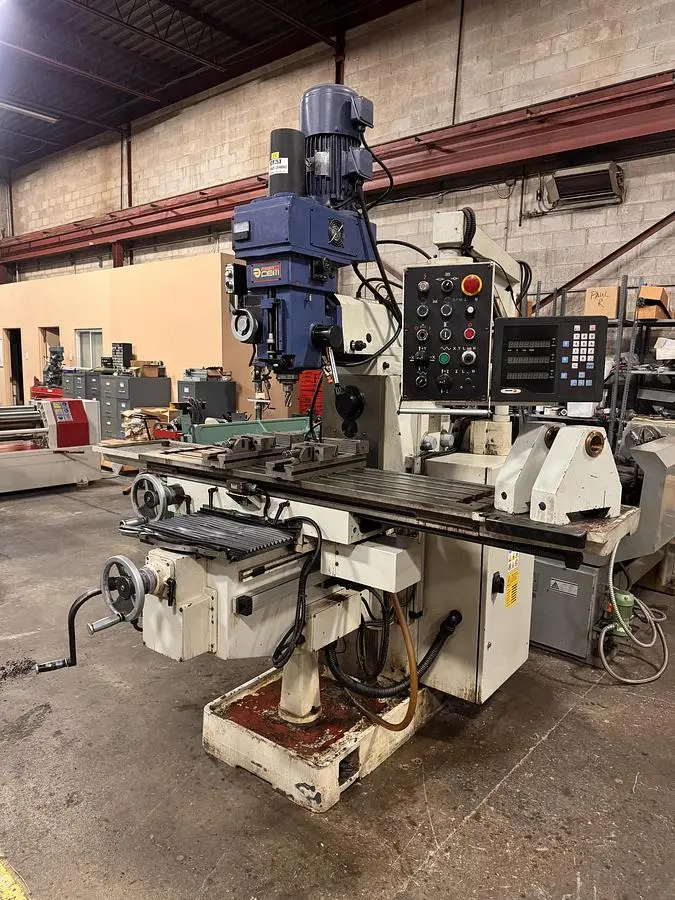

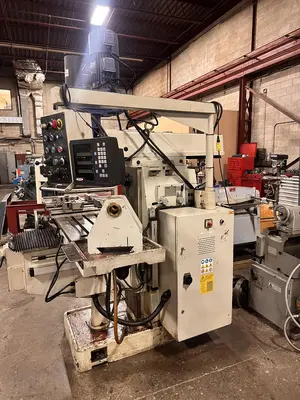

USED PHOEBUS PBM-GEVS500A

TABLE AREA: 14-1/2" X 58"
X-AXIS TRAVEL: 36.2"
Y-AXIS TRAVEL: 20.4"
Z-AXIS TRAVEL: 17.3"
SPINDLE TAPER: #40
SPINDLE SPEEDS - VERTICAL: 60 - 3600 RPM - VARIABLE ELECTRIC
SPINDLE NOSE TO TABLE: 3.3" - 19.9"
SPINDLE SPEED - HORIZONTAL: 65 - 1500 RPM
HORIZONTAL SPINDLE TAPER: #40
VERTICAL SPINDLE HP: 5 HP
HORIZONTAL SPINDLE HP: 5 HP
FEED X, Y AXIS MOTORS: AC SERVO 750 W
FEED Z-AXIS MOTOR: 1 HP
APPROX. DIMENSIONS: 81.5" X 75" X 98" TALL
APPROX. WEIGHT: 6,000 LBS.

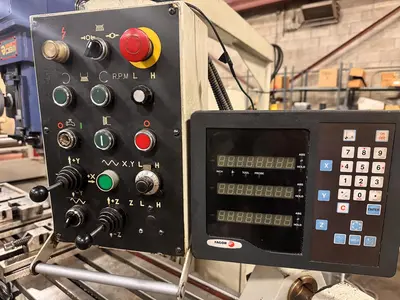

3-AXIS FAGOR DIGITAL READOUT
POWER DRAWBAR
PENDANT CONTROL
JOYSTICK FOR X, Y, Z
ELECTRONIC VARIABLE SPEED CONTROL
COOLANT SYSTEM
AUTOMATIC LUBRICATION
ARBOR SUPPORTS
