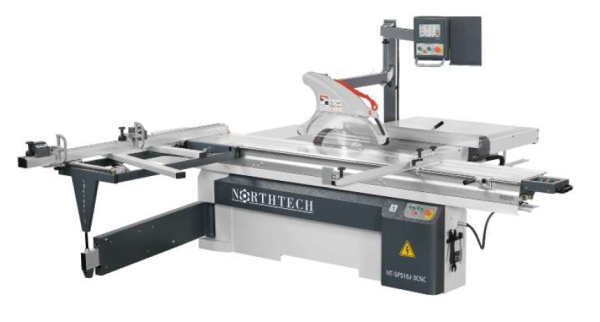

NEW NORTHTECH NT-SPS16J-3CNC

Sliding Panel Saw with Programmable Servo Positioning
Main motor: 10HP, 3PH 60HZ 230V or 460V
10 foot sliding table (126") table (8' and 12' available upon request)
Saw blade diameter max. Ø400mm (16")
Max. cutting height with blade at 90°: 125mm (5.0")
Max. cutting height with blade at 45°: 88mm (3.5")
Rectified cast iron fixed table dimension: 620x1125mm (24.5" x 44")
Main blade speed: 3000 / 4000 / 5000 / 6000 rpm
12" saw blade included
Includes (2) flip stops with Digital Readout
Premium lineal rail dust hood positioning
12mm Dado capable with included wooden insert
Main saw bore Ø25.4mm (DADO function spindle)
Scoring saw blade: Ø120mm (4.7")
Scoring motor power: 0.75KW (1HP)
Scoring blade speed: 8000rpm
Cutting width: 1300mm (52")
Saw table extension: 400mm x 650mm (16" x 25")
Manually positioned cross cut fence 0/45°
Motorized positioning scoring saw height and kerf adjustment
CNC servo positioned rip fence
CNC servo positioned blade tilt
CNC servo positioned blade height
Overarm fl ex hose cradle
Pusher bar storage on dust hood
Includes (2) premium quick change dust guards for 0 and 45° cutting
Safety bar and close proximity override for added safety
(100) Blade height and blade tilt and rip fence program recall
(1) Tool box
Dust requirements: (1) 5" dust port requiring 681 CFM at point of extraction
(1) 3" dust port requiring 245 CFM at point of extraction
Net / Gross weight: 1,808lbs / 2205lbs + 413lbs / 545lbs + 128lbs x 166lbs
Packing dimensions (LxWxH): 90" x 53" x 44" + 132" x 19" x 15" + 79" x 6" x 12"
