USED 1985 Feeler FTS-27 Series II

9" Swing Feeler FTS-27 Series II SECOND OP LATHE, Vari-Speed,5C Collet, Cross Slide & Bed Turret

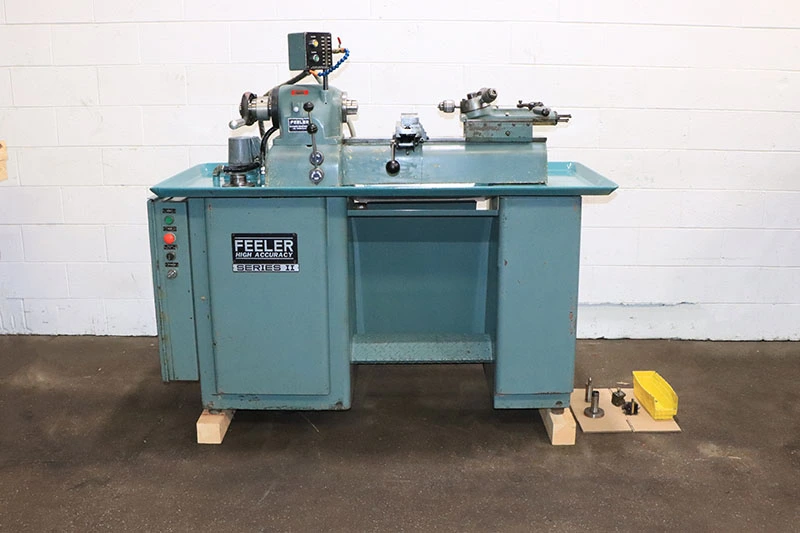

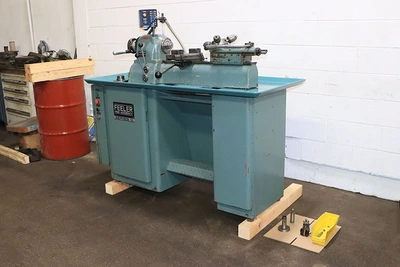

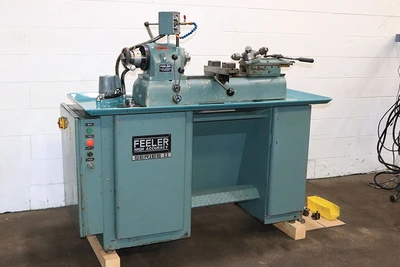

FEELER SECOND OPERATION LATHE

MODEL: FTS-27 SERIES II, S/N: 740906, MFG: 1985

SPECIFICATIONS:

SPINDLE CAPACITY WITH:

ROUND 5C COLLETS ........................ 1-1/16"

HEXAGON 5C COLLETS ...................... 7/8"

SQUARE 5C COLLETS ....................... 3/4"

STEP CHUCKS ............................. 1-1/16" TO 6"

JAW CHUCKS .............................. 5"

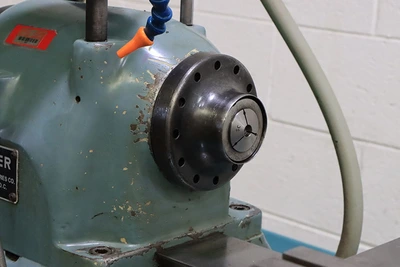

SPINDLE NOSE ............................ HARDINGE TAPER

LENGTH OF BED ........................... 36"

SWING OVER BED .......................... 9"

TRAVEL OF DOUBLE TOOL CROSS SLIDE ....... 3-3/4"

TRAVEL OF TURRET SLIDE .................. 4"

DIA. OF TURRET HOLES .................... 5/8"

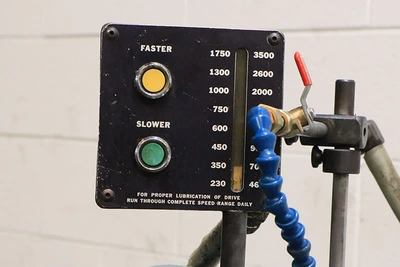

VARIABLE SPINDLE SPEED RANGE ............ 230 TO 3500 RPM

APPROX. WEIGHT .......................... 1,000 LBS.

APPROXIMATE DIMENSIONS .................. 67"L x 29"W x 56"H

EQUIPPED WITH:

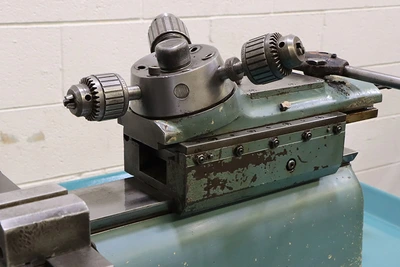

- HEXAGON BED TURRET PRE-LOADED BALL BEARING HEAD MOUNTING

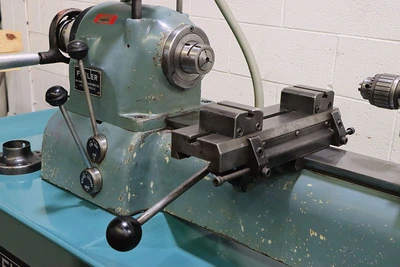

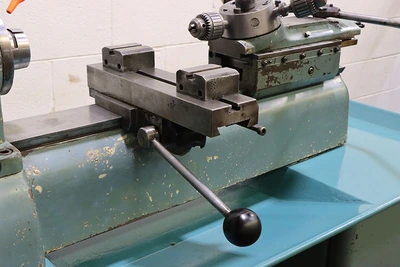

- DOUBLE TOOL CROSS SLIDE

- FRONT & REAR TOOL BLOCKS

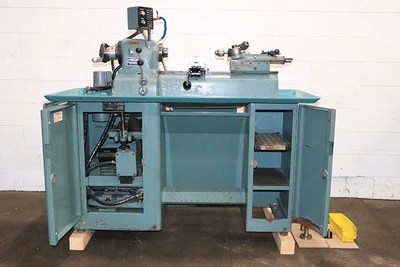

- SELF CONTAINED COOLANT SYSTEM

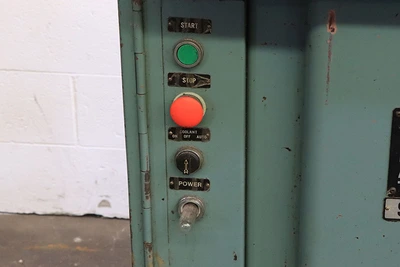

- PUSH BUTTON CONTROL FOR VARIABLE SPEED

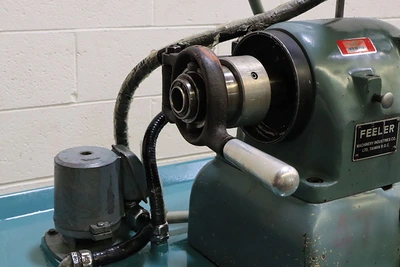

- BALL BEARING LEVER-TYPE 5C COLLET CLOSER

- TWO SPEED MAIN MOTOR AND ELECTRICAL CONTROLS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
