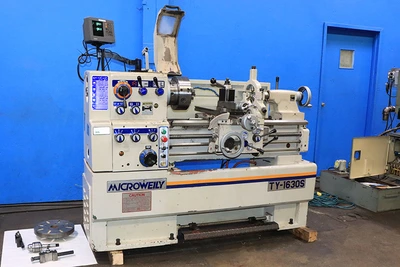

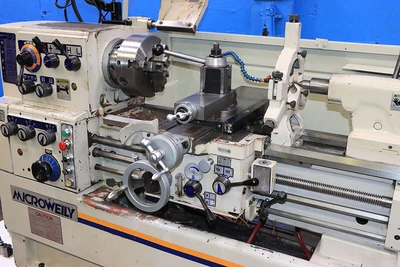

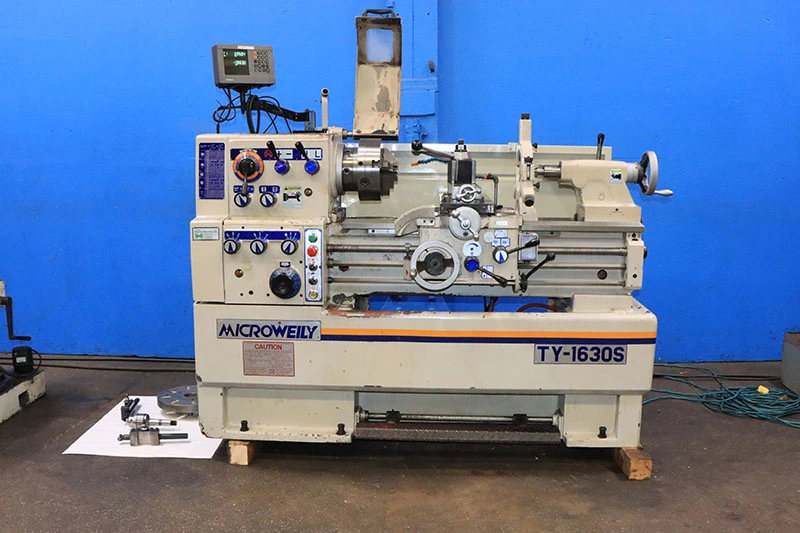

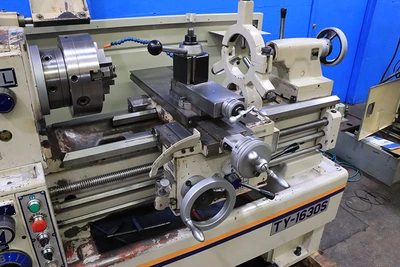

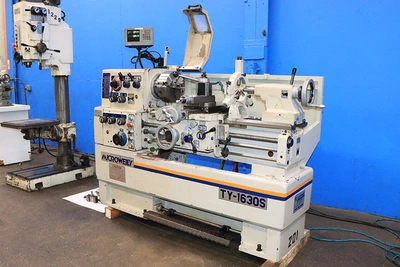

USED 2004 MICROWEILY TY-1630S

16" Swing 30" Centers MICROWEILY TY-1630S ENGINE LATHE, Inch/Metric, Gap, Heidenhain DRO,3-Jaw,Aloris, 5HP

16"/23" X 30" MICROWEILY ENGINE LATHE

MODEL: TY-1630S, S/N: 49304-005, NEW: 2004

SPECIFICATIONS:

SWING OVER BED......................... 16.14"

SWING OVER CROSS SLIDE................. 9.4"

SWING IN GAP........................... 23.42"

LENGTH OF GAP IN FRONT OF FACE PLATE... 6.1"

DISTANCE BETWEEN CENTERS............... 30"

WIDTH OF BED .......................... 11.81"

SPINDLE BORE........................... 2.04"

SPINDLE NOSE........................... D1-6

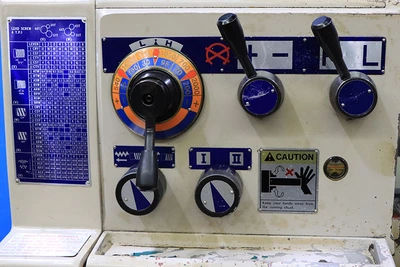

SPINDLE SPEEDS (12 SPEEDS)............. 30 TO 2,000 RPM

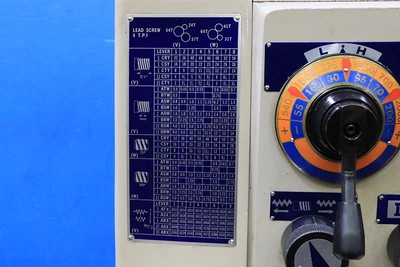

INCH THREADING RANGE .................. 2 - 56 TPI

METRIC THREADING RANGE ................ .4 - 7 mm

CROSS FEED RANGE (40) ................. .0006 - .0126 IPR

LONGITUDINAL FEED RANGE (40) .......... .0012 - .0252 IPR

TAILSTOCK QUILL DIAMETER............... 2.12"

TAILSTOCK QUILL TRAVEL................. 5.11"

TAILSTOCK TAPER........................ 4 MT

EQUIPPED WITH:

- INCH & METRIC THREADING CAPABILITY

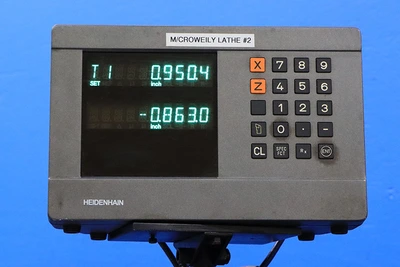

- HEIDENHAIN 2-AXIS NEWALL DIGITAL READOUTS

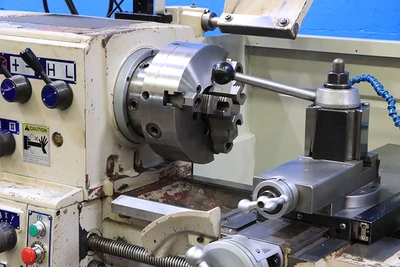

- 3-JAW CHUCK

- FACEPLATE

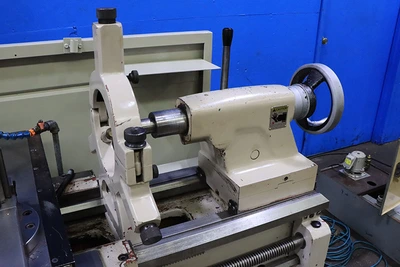

- STEADY REST

- ALORIS MODEL: CA QUICK CHANGE TOOL POST

- DEAD CENTER FOR TAILSTOCK

- JACOBS DRILL CHUCK FOR TAILSTOCK

- THREAD DIAL INDICATOR

- FOOT BRAKE

- COOLANT SYSTEM WITH REMOVABLE CHIP PAN

- 5 HORSE POWER MAIN MOTOR

FOR MORE INFORMATION: Call David at 973-497-7570
