USED 2017 DMG Mori MIlltap 700

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

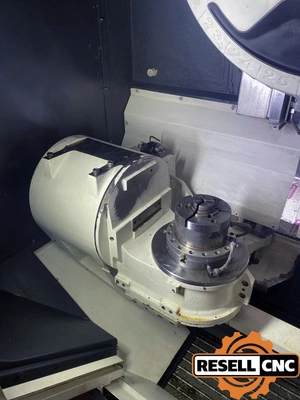

Additional Control Options: Integrated Swivel Rotary Table Simultaneous

Clamp Pneumatic 1-Circuit Integrated Swivel Rotary Table

Additional Machine Specs: Signal Lamp 4 Color

Chip Trolley MillTap Design

Electronic Handwheel

Automation Package With DP/DP Coupler With Profibus Connection

Tool Breakage Sensor Renishaw OTS

Upgraded LNS Higher Filtration Chip Conveyor

Push Button for Clamping/Unclamping

B Axis: false
C Axis: false
Chip To Chip Time: 1.5
Control Make Model: Siemens 840D Solution Line CNC Control
Control Options: Color Monitor
Coolant Psi: 1000.0
Coolant Type S: Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, Mist Collector
Max Table Pallet Load: 220.0
Max Tool Diameter: 3.15
Max Tool Length: 9.8
Max Tool Weight: 6.6
Probe Make Model: Renishaw OMP400
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 33
Spindle Nose To Table Top: 7.9" - 22.9
Spindle Speed: 24000.0
Spindle Taper Other: Big Plus BT-30
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 0.9
Tool Magazine Capacity: 25.0
Twin Turret: false
Vertical Table Pallet Size: 27.6" x 16.5
X Travel: 27.6
Y Axis: false
Y Travel: 16.5
Z Travel: 15.0
