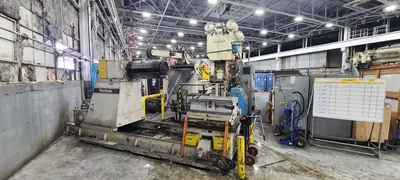

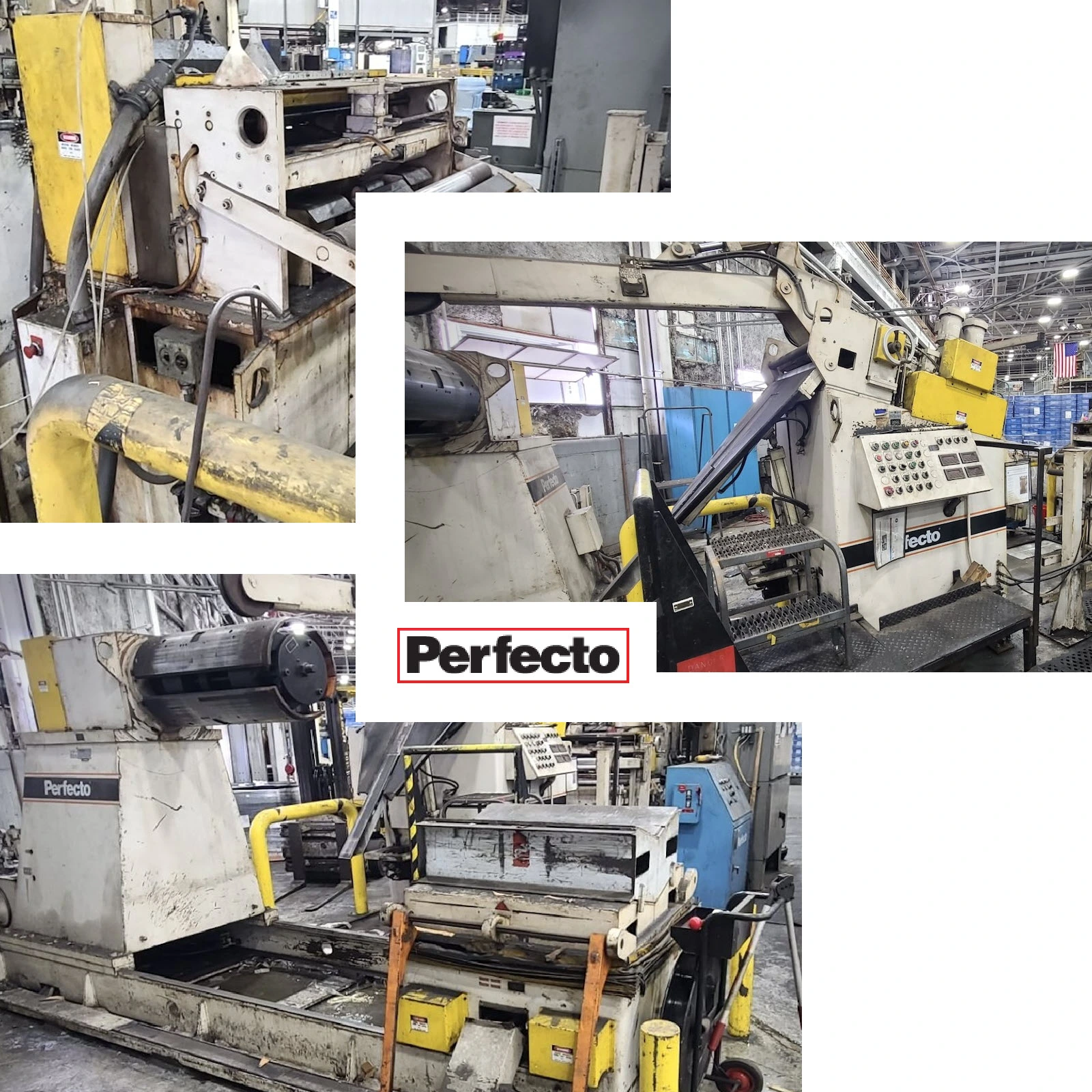

USED 1993 PERFECTO RS20-30B / 2.2-30-9 / 400-30
Overview
Description
30" Wide Material, 72" OD, 19"-25" ID, 150-450 IPM Line Speed, Hold Down Arm, Sonic Loop Control, Coil Car, Peeler, Threading Table
Specifications
| Dimensions | 86" h x 16' l x 5' w | 9,300 lbs | 86" h x 16' l x 5' w | 9,300 lbs |
|---|---|---|
| Weight | 20,000 lbs | 20,000 lbs |

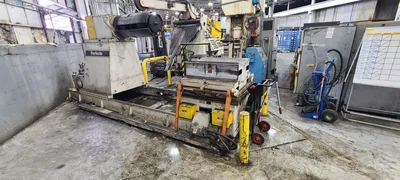

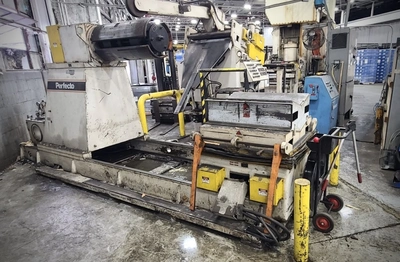

perfecto coil reel w/coil car: model rs20-30b s/n r6-93001
max coil width: 30"
max coil od: 72"
coil id range: 19 - 25"
spindle speed: 450 ipm

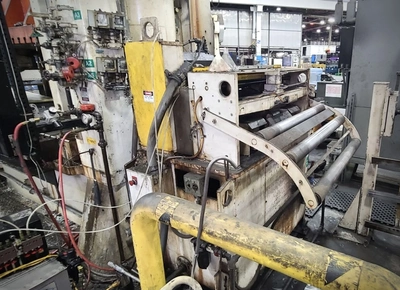

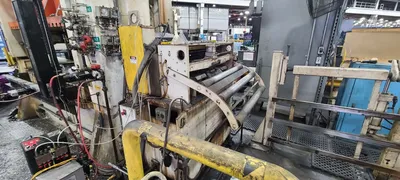

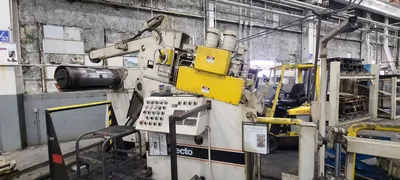

perfecto powered stock straightener: model 2.2-30-9 s/n 93002
capacity: 30" w x .100" th
number of rolls: 9
straightening rolls: 4 over 5
pass line height: 48.5" +/- 2"

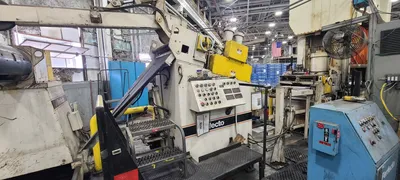

perfecto thread table & loop control: model tt3008 s/n 93003
perfecto servo feed: model 400-30 s/n 93004
capacity: 30" w x .100" th
number of rolls: 1 over 1
powered entry rolls: __
pass line height: 48.5" +/- 2"

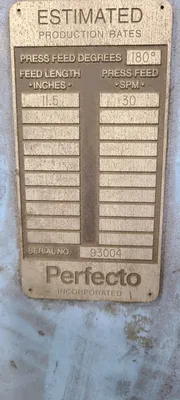

FEED LENGTH: 11.5" (30 SPM ON PRESS)
PRESS FEED DEGREES: 180 DEG.

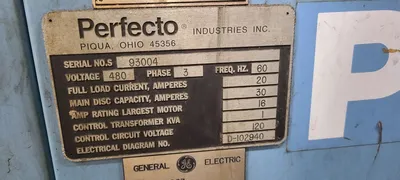

ELECTRICAL CONNECTION: 480v-3-60 - 20 FULL LOAD AMPS, MAIN DISCONNECT CAPACITY 30 AMPS
Note: __
Location: This Used Perfecto RS20-30B / 2.2-30-9 / 400-30 Servo Feed Line is located in our Jackson, MI Falahee Building
Equipped With
SONIC LOOP CONTROL ARM, PERFECTO COIL CAR MODEL LC-2H (20,000 LBS. 18" LIFT, 30" WIDTH, 72" OD), D-155242 PEELER AND STOCK GUIDE, TT3008 THREADING TABLE
