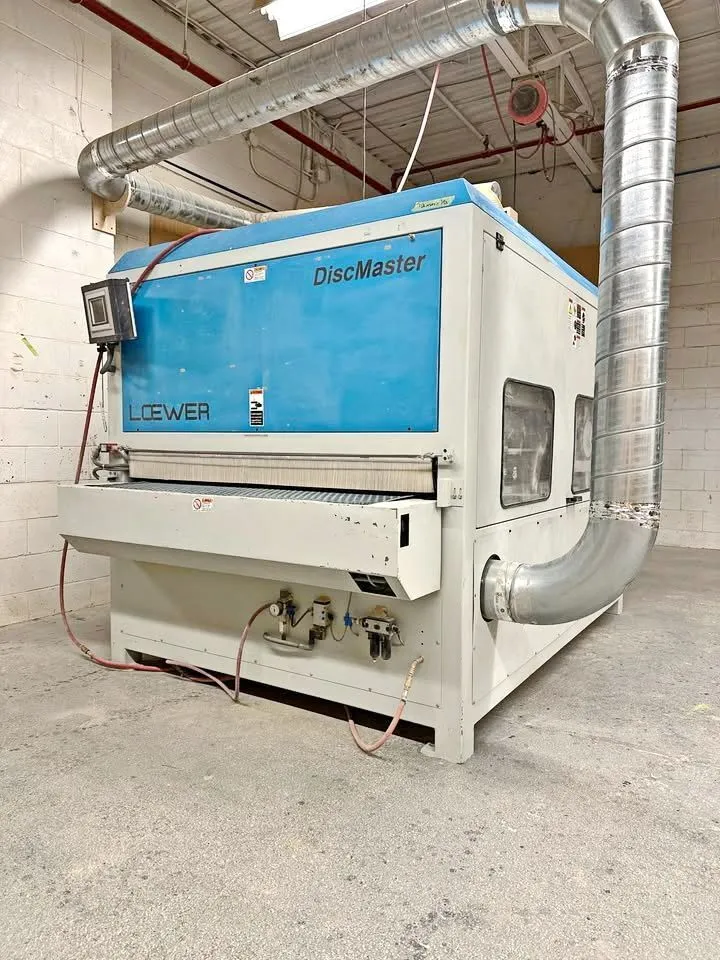

2007 Loewer Discmaster 3DBB Disc And Roller Brush Industrial Sander, Vacuum Feed Belt Workholding, Variable Speed Conveyor, Eccentric Orbital Disc Sanding System, Motorized Height Adjustment, Pneumatic Belt Centering, PLC Touchscreen Control
| Width of Belt | 53" | 1,346.2 mm |
| Mar Part Thickness | 4" | 101.6 mm |
| Roller Dia | 16" | 406.4 mm |
| Disc Dia | 10" | 254 mm |
| RPM (Roller) | 300 RPM | 300 RPM |
| RPM (Disc) | 300 RPM | 300 RPM |
| Rollers (Drums) | 2 | 2 |
| Discs | 16 | 16 |
| Power (Roller) | 3 hp | 2.2 kW |
| Power (Disc) | 2 hp | 1.5 kW |
| Made In | Germany | Germany |
| Dimensions | 120" X 86" X 96" | 120" X 86" X 96" |
| Weight | 4,188 lb | 4,188 lb |
PLC touchscreen control
Vacuum feed belt workholding system
Variable speed conveyor feed
Independent variable speed control (discs & rollers)
Eccentric orbital disc sanding system
Motorized height adjustment
Pneumatic belt centering system
Spring-loaded hold down rollers
Antistatic brush strip system
Dust extraction outlets
