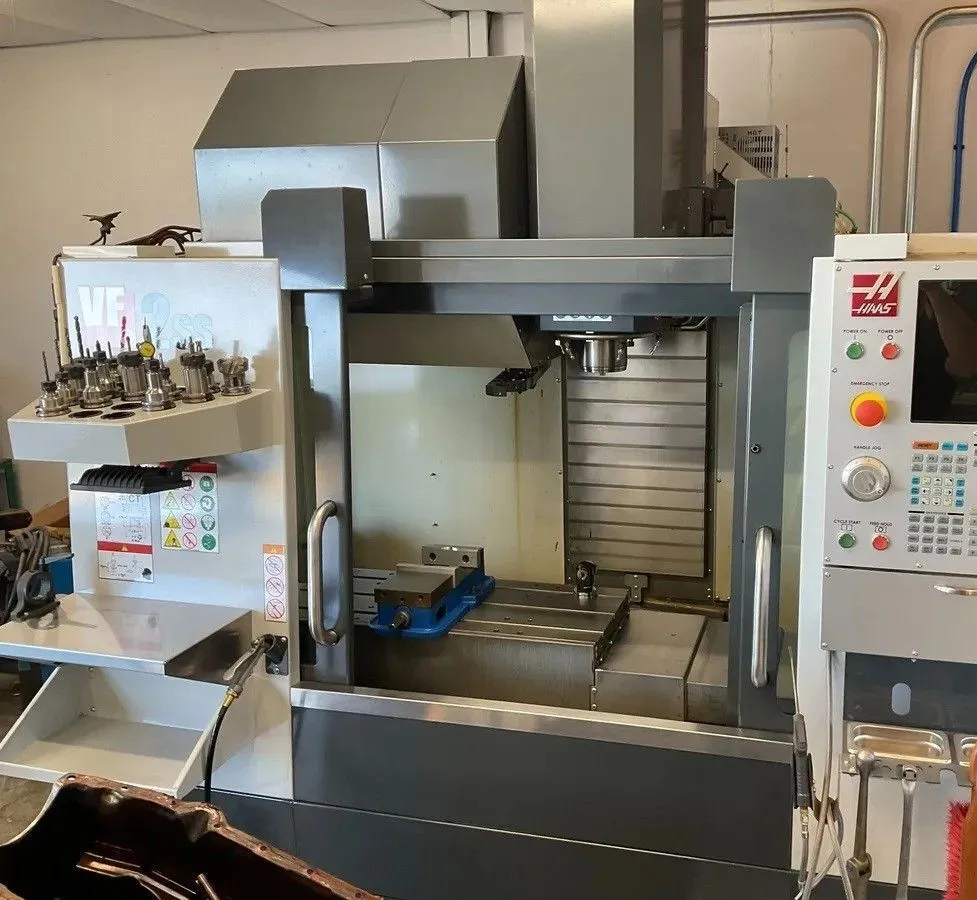

Haas VF-2SS CNC Vertical Machining Center
New 2020
Through Spindle Coolant, Probing
| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT 40 | CT 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 110″ x 92″ x 104″ | 110″ x 92″ x 104″ |
| Weight | 8,000 lbs | 8,000 lbs |
General Specifications:
X-Axis Travel: 30″
Y-Axis Travel: 16″
Z-Axis Travel: 20″
Table Size: 36″ x 14″
Max Table Load: 1500 lbs
Spindle Speed: 12,000 RPM
Spindle Motor: 30 HP
Spindle Taper: CAT40
Rapids (X, Y, Z): 1400 IPM
Max Cutting Feed Rate: 833 IPM
Tool Capacity: 30+1
Machine Weight: 8,000 lbs
Machine Dimensions: 110″ x 92″ x 104″
Haas Control
Through Spindle Coolant
Probing
