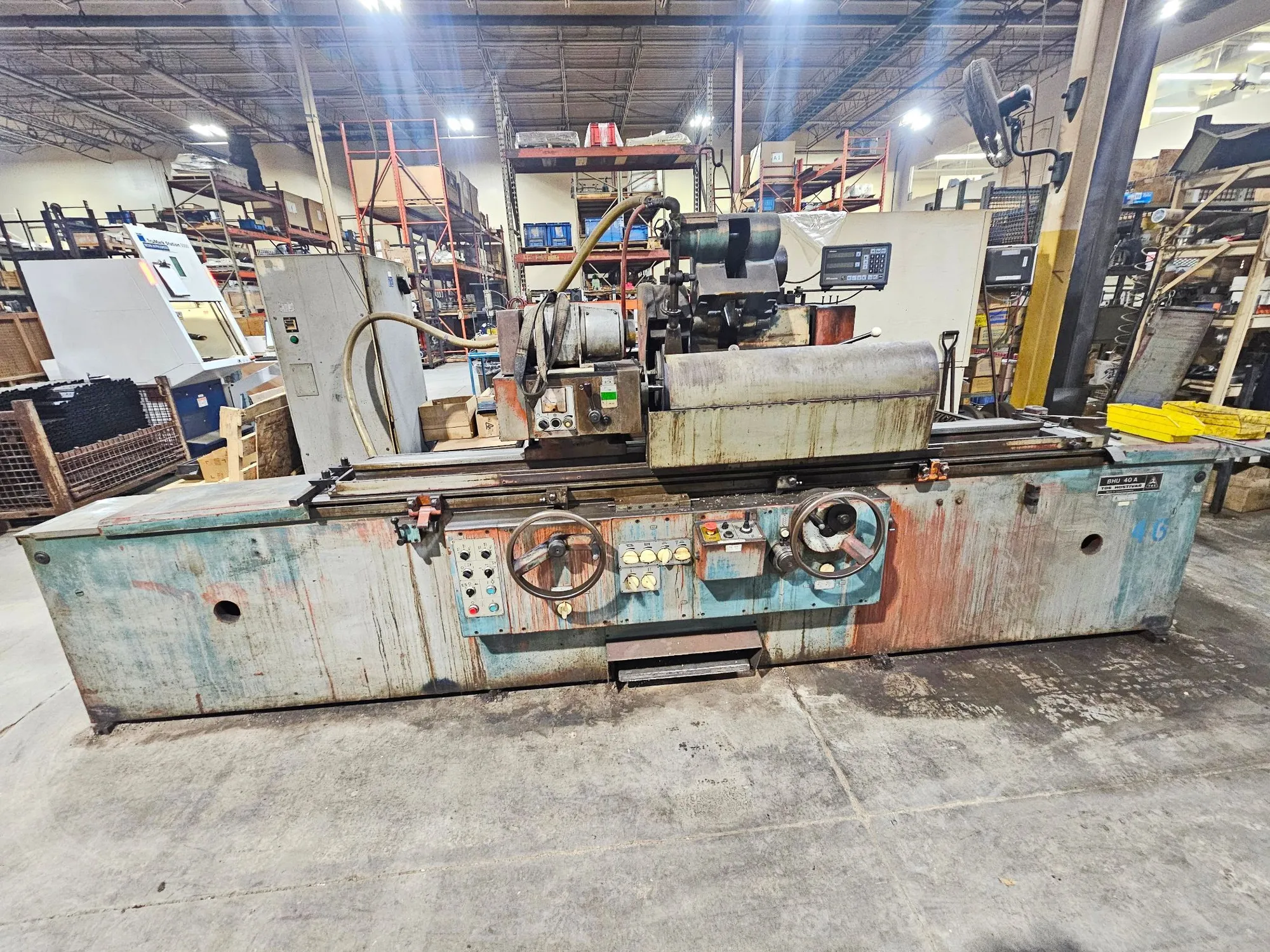

TOS BHU 40A/1500 Universal Cylindrical Grinder, Internal Grinding Attachment W/ Tooling, Tailstock, Multiple Steady Rests, Mitutoyo 2-Axis Digital Readout, Wheel Dresser W/ Spare Tooling, Coolant System
| Swing | 15.74" | 399.8 mm |
| Centers | 59.05" | 1,499.9 mm |
| Wheelhead Power | 12.8 hp | 9.5 kW |
| Workhead Speed | 400 RPM | 400 RPM |
| Wheelhead Speed | 1,470 RPM | 1,470 RPM |
| Workhead Swivel | 90° | 90° |
| Wheelhead Swivel | ±45° | ±45° |
| Grinding Wheel Size | 19.68″ X 3.14″ X 7.99″ | 19.68″ X 3.14″ X 7.99″ |
| Max Grinding Wheel Dia. | 19.68" | 499.87 mm |
| Max Grinding Wheel Width | 3.14" | 79.756 mm |
| Wheelhead Infeed Travel | 16.33" | 414.78 mm |
| Longitudinal Table Travel | 70.47" | 1,789.9 mm |
| Max Weight Between Centers | 551 lb | 249.9 kg |
| Plunge (Yes/No) | Yes | Yes |
| Work Spindle Taper | MT5 | MT5 |
| Tailstock Taper | MT5 | MT5 |
| Made In | Czechoslovakia | Czechoslovakia |
| Dimensions | 245" X 91" X 74" (Approx.) | 245" X 91" X 74" (Approx.) |
| Weight | 13,090 lb | 13,090 lb |
Internal grinding attachment w/ tooling
Multiple steady rests
Wheel dresser w/ spare tooling
Mitutoyo 2-axis digital readout
Tailstock w/ fine adjustment
Swiveling workhead
Swiveling wheelhead
Automatic table traverse
Hydraulic table drive system
Centers workholding (headstock & tailstock)
Coolant system w/ pump & tank
Wheel guard enclosure
Wheel hubs & flanges
Centralized lubrication system
