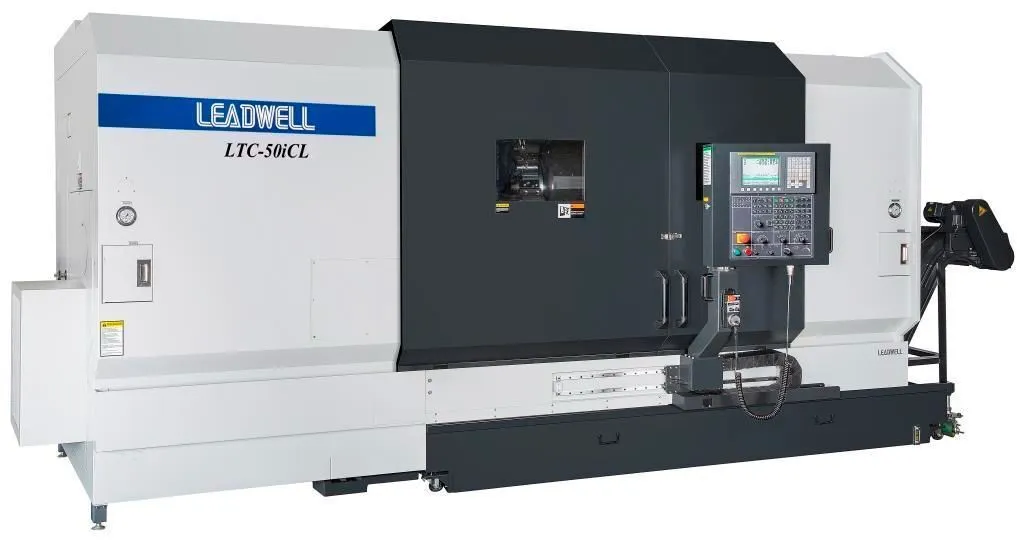

NEW LEADWELL LTC-50iCLY

Specifications (subject to buyer verification):
CAPACITY
Max Work Swing 33.5”
Swing Over Cross Slide 30.5”
Max. Turning Diameter (Y Version) 18.89”
Max. Turning Length (Y Version) 78.9" (L)
Max. Workpiece Weight 6,600 lbs
TRAVELS
X axis (Y Version) 16.7" (10.24”)
Z axis 82.7” (L) – stock standard
Y Axis +3.94“~ -3.15” (+ 100mm ~ -80 mm)
SPINDLE (Options)
(D)
Spindle Nose A2-15
Chuck diameter & Bar Capacity 21” / 6.5”
Spindle Bore 7.25”
Spindle Speed (rpm) 1,500
SPINDLE MOTOR
Spindle Motor FANUC α30i AC Digital Spindle Motor
Horsepower 50 HP 2-Speed Gear Box (4:1)
Maximum Spindle Torque 2718 ft/lbs @ 96rpm (30 min)
FEED RATES
X axis 590 IPM
Z axis 787 IPM
Y Axis 295 IPM
Jog Feed Rates 50 IPM
TURRET
(BMT75 DIN 1809)
Tool Stations 12
Number of Live Tool Stations 12
Tool Size (square dimension) 1.25” BMT75
Tool Size (round dimension) 2.0” (2.5” Option Max)
Indexing Accuracy +/- 6.0 arc sec.
Indexing Time Tool-to-Tool 1.25 sec.
Indexing Time 180 deg. 3.80 sec.
Rotary Spindle Speed (rpm) 4,000
Rotary Spindle Motor 10 Hp.
TRAVELS
Programmable (drag/drop)
Tailstock Movement & Travel 75.2” (L)
Quill Taper MT #6
Quill Drive Type Hydraulic
Quill Diameter & Stroke 4.92" dia - 4.33" stroke
Max. Quill Thrust 2,860 lbs.
AXES SPECIFICATIONS
X axis Ball Screw 1.97” dia x .394” pitch
Z axis Ball Screw (XXL/XXXL) 1.97” dia x .394” pitch (2.48” dia x .472”)
Y Axis Ball Screw 1.50” dia x .394” pitch
X axis Motors 28 Hp.Fanuc Alpha A/C Brushless * (A30i)
Z axis Motors 28 Hp. Fanuc Alpha A/C Brushless * (A40i)
Y axis Motors 12 Hp. Fanuc Alpha A/C Brushless * (A22i)
X axis Maximum Thrust 4,511 lbs.
Z axis Maximum Thrust 5,568 lbs.
Y axis Maximum Thrust 3,811 lbs.
COOLANT SYSTEMS
Pump Motor Output 1.13 Hp.
Pump Flow Rate 7.1 gpm
Pump Pressure 29 psi.
Tank Capacity 95 gal. (L)
POWER & AIR REQUIREMENTS
220 VAC Line Voltage AC 3 Phase
Power Consumption 70 KVA (210 amps. @ 220 volts)
Air Requirement 85.3 PSI Air Pressure @ 28 cfm Air Flow
ACCURACY (Full travel ~ laser calibrated)
Positioning X/Y/Z/B +/-0.0002
Repeatability X/Y/Z/B +/-0.0001
GENERAL
Floor Spacing (L x W x H) 220” x 91.5” x 93.1”
Machine Net Weight 33,069 lbs.

Equipped With (subject to buyer verification):
Fanuc 0iTF Plus Control w/ 10.4” Color LCD display
50Hp spindle motor (2718 ft-lbs @ 96 rpm)
21" 3-jaw Power Chuck
1,500 rpm Max Spindle Speed
A2-15 spindle nose with 7.25” spindle bore (Standard)
Spindle orientation
Spindle speed override 50 – 150%
Rigid tapping
Custom Macro B (User Definable)
Portable Manual pulse generator
Program and data protection key switch
USB, PCMCIA, RS-232 & Embedded Ethernet Connections
Box Ways X, Y & Z
Double pre-tensioned ball screws
Metered piston distributor lubrication
Telescopic covers
Full enclosure guarding
Chip Conveyor and Bucket
Bar Feed Preparation
Flood coolant with large separate coolant tank
Alarm & Work Light
Instruction manual, parts list, and electrical drawings
Fanuc operator and maintenance manuals on DVD
(3) set of Soft Jaws & (1) set of Hard Jaws
Standard Tooling Package
2 Live Radial Tool Holders
2 Live Axial Tool Holders
