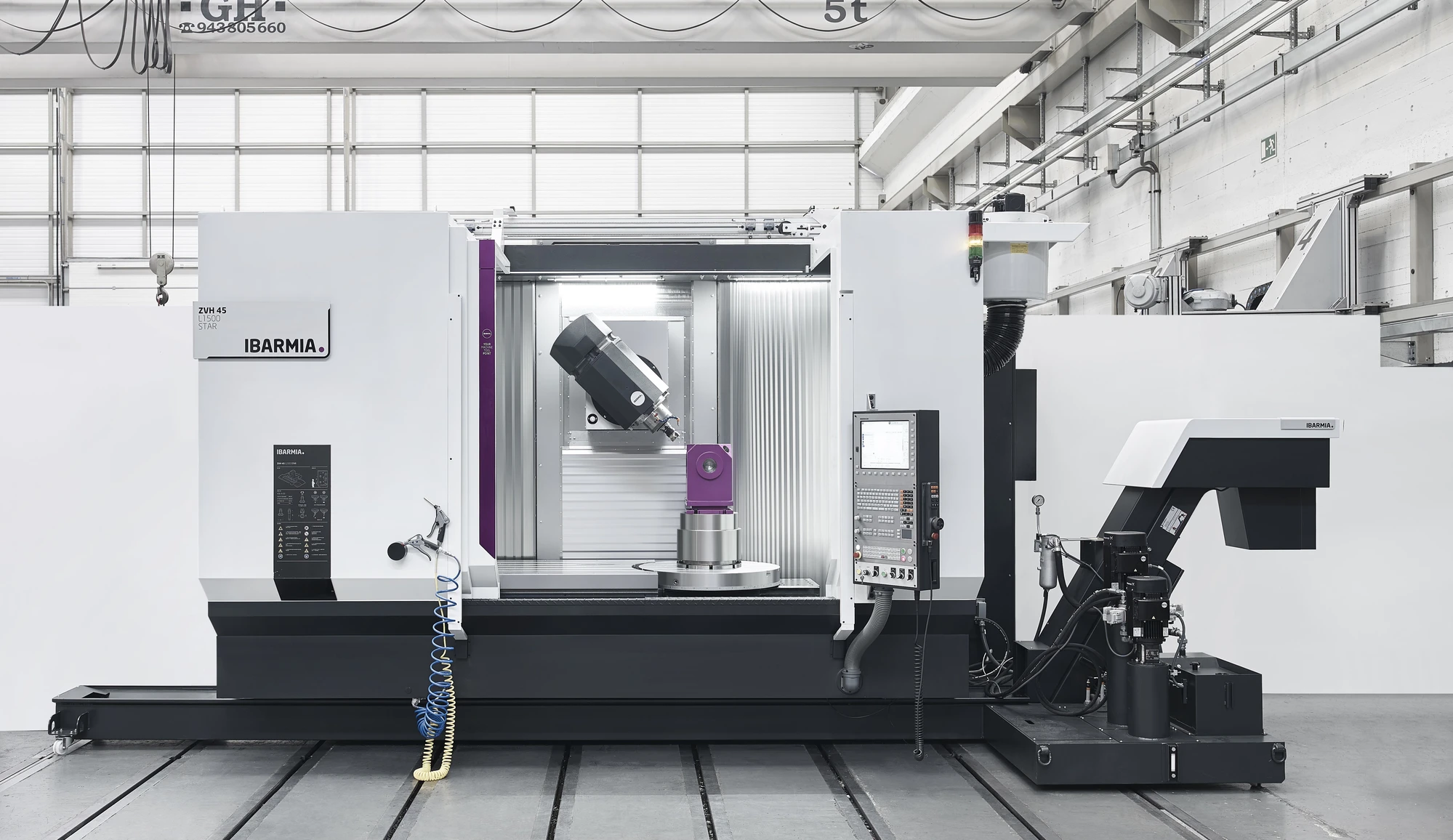

NEW IBARMIA ZVH45/L1500 Star

Specifications (subject to buyer verification):
Strokes
X-axis, longitudinal: 1,500 mm
Y-axis, transversal: 800 mm
Z-axis, vertical: 806 mm
B-axis, NC Head tilting range º: +/- 105º
C-axis, NC rotary table range º: +/- 360º
Maximum swing diameter: 1,100 mm

Working Table:
Length x width of the table: 1700 x 850 mm
Rotary table diameter: 800 mm
Number of T slots: 5
Size of the T slots: 1x18 (H7) / 4x18 (H12) mm
Distance between T slots: 125 mm
Maximum admissible load over the table: 1,500 Kg/m2
Maximum admissible load over rotary table 1,500 Kg
Distance from table surface to spindle nose V (min./max.): 60/866 mm
Distance from table surface to spindle nose H (min./max.): 360 / 1166 mm

Main spindle and headstock:
Taper of the tool holder axis: ISO 40
Tool holder pull stud according to Norm: DIN 69872
Electrospindle:
Power in service S1 (100%): 30 kW
Power in service S6 (40%): 46 kW
Total available power from: 2,200 RPM
Torque in service S1 (100%): 130 Nm
Torque in service S6 (40%): 200 Nm
Maximal rotation speed:12,000 RPM

Capacity/Services
Milling capacity in steel 600 N/mm2 : 900 cm3/min
Drilling capacity in steel 600 N/mm2 : mm V 50
Tapping capacity in steel 600 N/mm2: M33

Feeds:
Digital servomotors.
Feed thrust X,Y,Z 100%: N 12020/8500/8558
Feed thrust X,Y,Z 140% (S3): N 19120/16839/16495
Rapid feed for positioning
X-axis: 40 m/min
Y-axis: 40 m/min
Z-axis: 40 m/min

Maximum working feed
X-axis: 30 m/min
Y-axis: 30 m/min
Z-axis: 30 m/min

Guide ways and ball screw
Number of rollers:
X-axis: 2+2
Y-axis: 2+2
Z-axis: 2+2
Distance between linear guides (mm):
X-axis: 980 mm
Y-axis: 600 mm
Z-axis: 590 mm
Dimensions of rollers: 45 mm
Dimensions of ball screw:
X-axis: D 63/ P 30 mm
Y-axis: D 40/ P 20 mm
Z-axis: D 40/ P 20 mm

Measuring system
ResolutionL цm 1
Positioning accuracy Tp X-Y-Z (1000 mm): цm 10
Positioning repeatability: цm 5
Positioning accuracy Tp B: 10”

Tool magazine and automatic changer
Number of positions of the magazine: 60
Maximal tool diameter:
-Previous and posterior taken position: 75 mm
-Previous and posterior free position: 127 mm
Maximum tool length: 350 mm
Maximum tool weight: 7 Kg
Tool management system: Random
Tool changing time: 8 S
Magazine taper: ISO 40 (DIN 69871)
Tool holder pull stud according to Norm: ISO 40 (DIN 69872)//BT 40 (JIS 6339)

Machine dimensions:
Maximum length: 6,250 mm
Maximum width: 4,062 mm
Maximum height: 3,067 mm

Equipped With (subject to buyer verification):
Standard Features:
Digital CNC control FANUC 31i-B
Cooled main spindle 46kW/200Nm S6-40% - 30kW/130Nm S1-100% , 12000 rpm
Continuous NC tilting head +/- 105º with Direct Drive technology.
Integrated Rotary table D800 with continuous movement +/-360º.
12 bar external coolant system around the spindle
Coolant through spindle system (22 bar).
Direct measurement system in all linear axes
LED ligthing of the working area.
Chip Conveyor.
Full enclosure of the working area, steel covers.
Extra Side windows for extra-long workpieces.
Preparation for mist aspiration.
Spray gun (1 unit).
Air gun (1 unit).
Automatic Tool Changer of 60 tools.
Touch screen 19”.
FANUC portable electronic hand-wheel.
Climatized electrical cabinet.
Improved clearance by 60mm

Additional Options:
Air through spindle
Rotary axis calibration. Fanuc
Voltage transformer and 60 Hz for machines STAR and Extreme (40-45-48)
Preparation VI axis (basic) STAR1500
Machine ED. CAD-CAM
Preparation for piece meter
