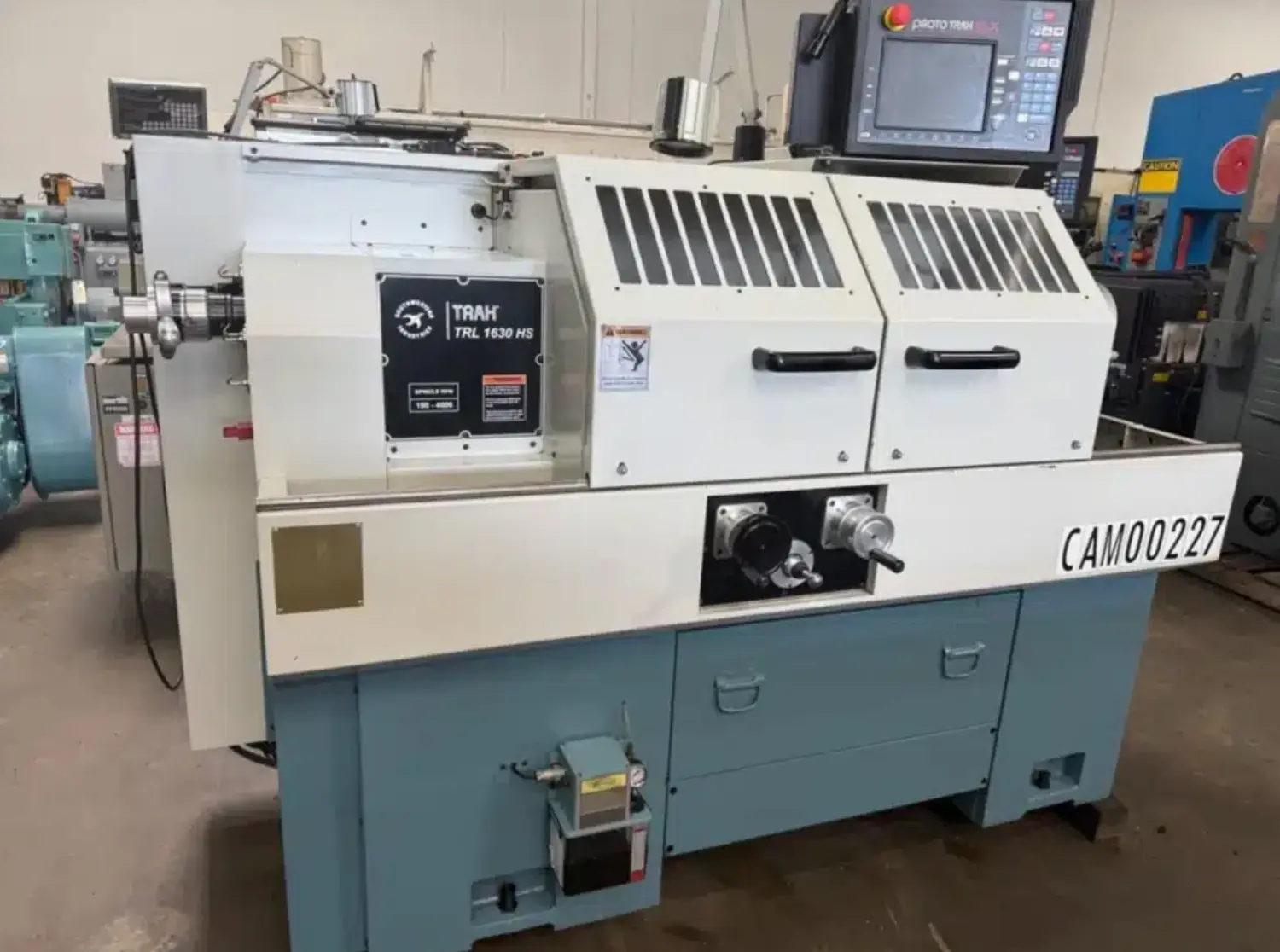

USED 2018 SOUTHWESTERN INDUSTRIES TRAK TRL 1630 HS
Overview
Description
Used CNC Lathe in good condition. Features 16" swing, 30" max distance between centers, 150-2500 RPM speed range, ProtoTRAK SLX Control, electronic handwheels, quick change toolpost, and more. 230V, 3-Phase.
Specifications
| Swing | 16" | 406.4 mm |
|---|---|---|
| Machining Length | 30" | 762 mm |
| # Axis | 2 | 2 |
| Power | 7.5 hp | 5.6 kW |
| Max RPM | 25,000 RPM | 25,000 RPM |
| Control | CNC (Prototrak) | CNC (Prototrak) |
Height of Centers:8″
Swing Over Bed:16″
Swing Over Cross Slide:8.6″
Swing Over Saddle Wings:16″
Max Distance Between Centers:30″
Spindle Taper:A2-4
Spindle Speed Range:150-2500 RPM (Variable)
Spindle HP:7.5 HP
Spindle Bore:1.57″
Taper In Headstock Spindle:#5 MT
Tailstock Quill Travel:6.3″
Tailstock Quill Diameter:2.36″
Tailstock Quill Taper Hole:#5 MT
Electrical:230V / 3-Phase (60hz)
Equipped With
ProtoTRAK SLX Control, 2-Axis DRO During Manual Operation, Constant Surface Speed & Programmable Spindle Speeds, Servo Motors & Ground Ballscrews, AC Spindle Drive, Electronic Handwheels for X & Z Manual Traverse, Jogstick for Convenient Jog at Rapid Travels, Dorian Quick Change Toolpost,Hardened & Ground Bed Ways, Automatic Central Lubrication System for the Slide Ways & Ballscrews, Coolant System, Enclosure
