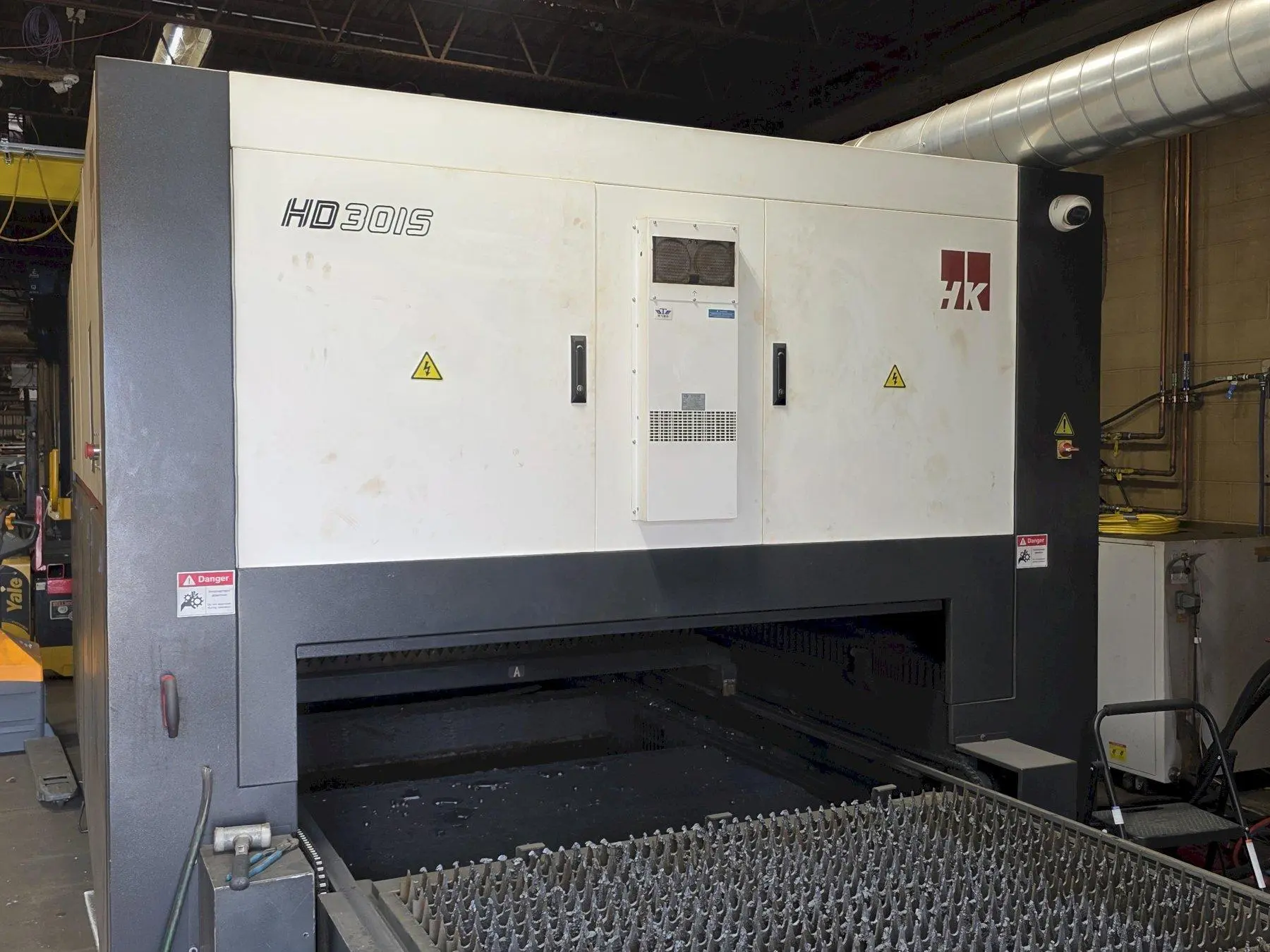

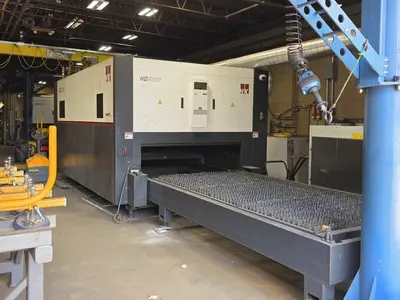

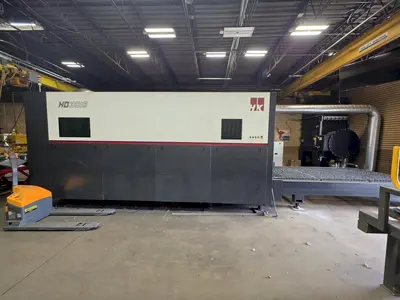

20,000 WATT HK HD3015 20KW FIBER LASER

Equipped With
HK HD3015 20KW FIBER LASER
New: 2024
Specifications:
Work Area:  5' x 10' (3000 x 1500 mm)
Max Sheet Size:  120" x 60" (3048 x 1524 mm)
Z-Axis Travel:  300 mm
Laser Type:  Fiber
Laser Power:  20 kW
Drive System:  Rack and Pinion
Positioning Accuracy:  ±0.05 mm
Repeatability:  ±0.03 mm
Max Traverse Speed:  100 m/min
Acceleration:  1.1 G
Cutting Capacity (Approximate):
Mild Steel:  Up to 40–45 mm
Stainless Steel:  Up to 50 mm
Aluminum:  Up to 50 mm
Brass:  Up to 15 mm
Copper:  Up to 12 mm
Electrical Consumption:  75–90 kW (Approximate)
Equipped with:
Auto-Focus Fiber Cutting Head
High-Stiffness Welded Frame

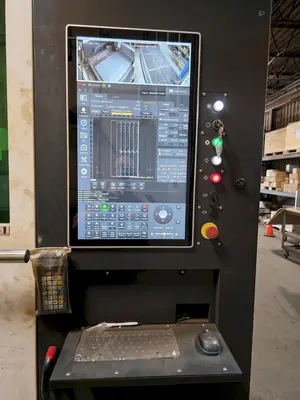

FSCUT / Siemens-Based Control
