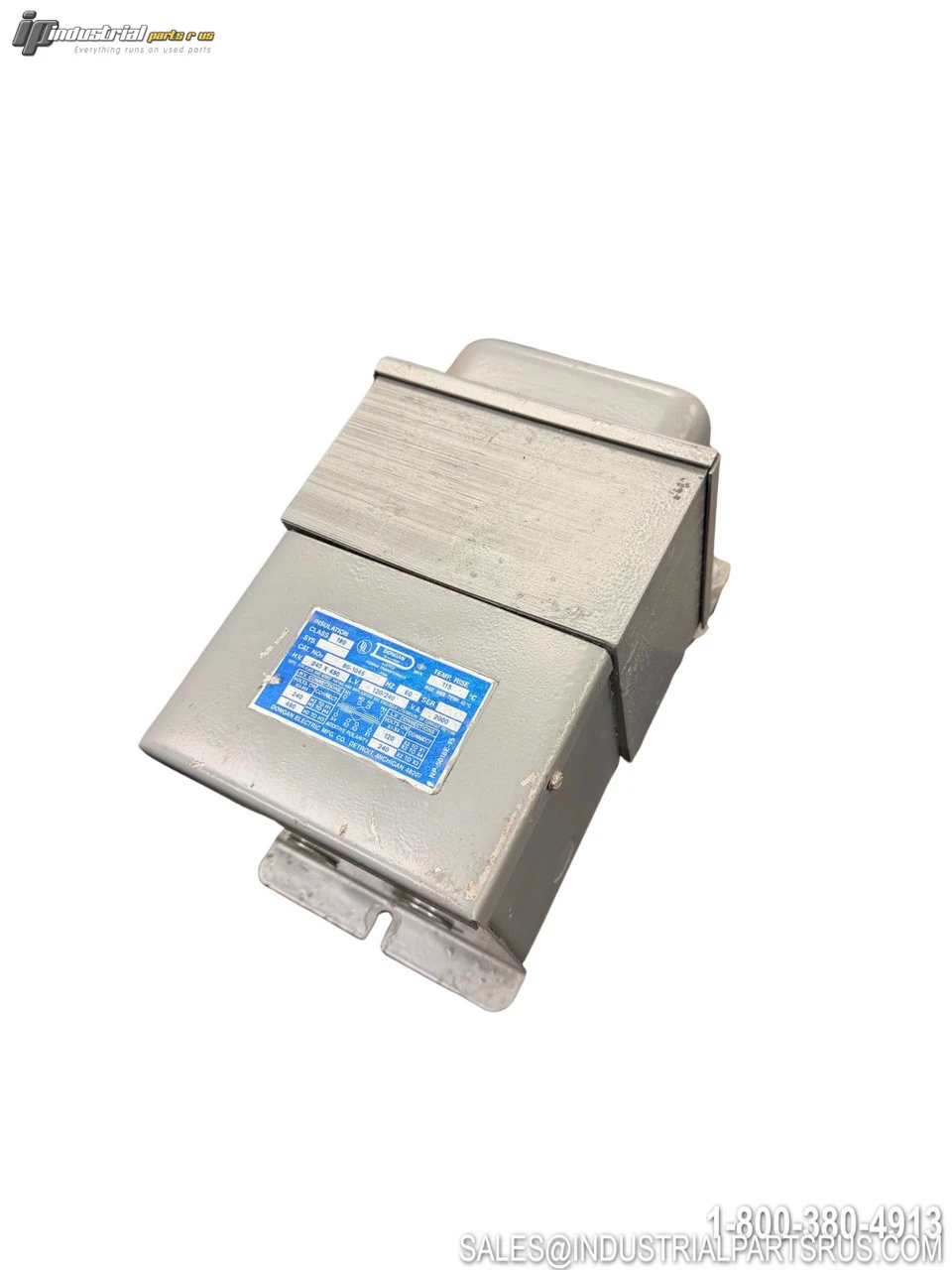

The Dongan 80-1045 is a single-phase general purpose transformer designed for isolation and voltage conversion applications. This 2 kVA unit features dual primary voltage capability (240V/480V) and dual secondary output (120V/240V), making it versatile for various industrial and commercial installations. The transformer utilizes copper windings throughout and includes a NEMA Type 3R enclosure suitable for indoor or outdoor use.
Specification
Value
Brand
Dongan
Model/Part Number
80-1045
Series
80
Power Rating (kVA)
2 kVA
Primary Voltage
240 x 480 VAC
Secondary Voltage
120/240 VAC
Frequency Rating
60 Hz
Phase
Single Phase
Maximum Primary Amperage
8.3/4.1 Amp
Maximum Secondary Amperage
16.6/8.3 Amp
Insulation Class
UL Class 180°C
Temperature Rise
115°C at 40°C Ambient
Winding Material
Copper
Construction Type
Ventilated, Dry-Type, Double Wound
Enclosure Type
NEMA Type 3R
Mounting Type
Wall Mount
Width
6.63 IN
Height
11 IN
Depth
5.88 IN
Weight
41 lbs
We warranty all items for 30 days from date of purchase.
| Weight | 43.00 LBS | 43.00 LBS |
SKU: AI1137
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 43.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 14.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: 8.3/4.1 Amp
Manufacturer: Dongan
Enclosure Type: NEMA Type 3R
Part Number: 80-1045
Shelf: I-18
Model: 80-1045
MPN: 80-1045
Type: Transformer
