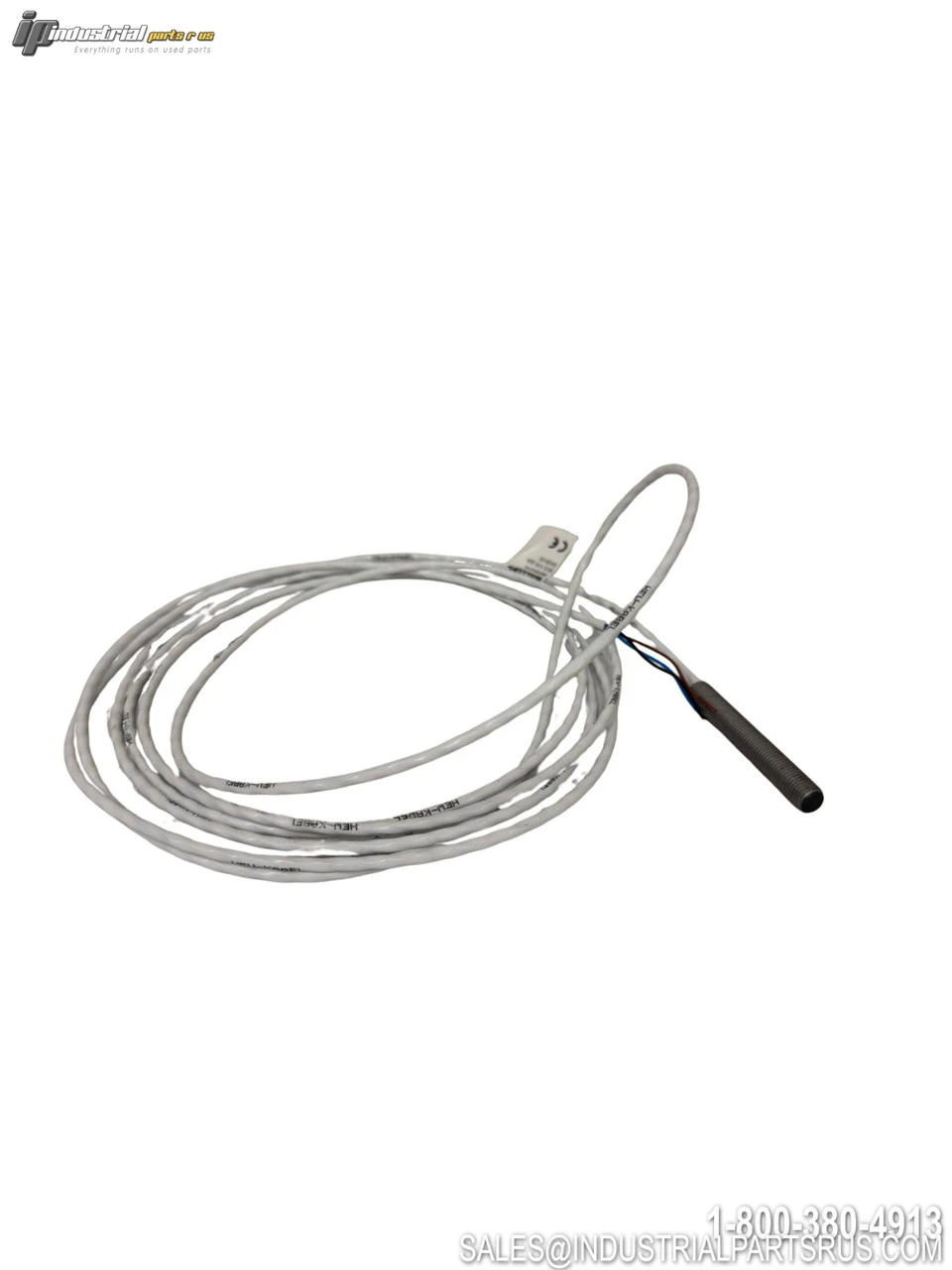

NEW BALLUFF BES 516-324-SA26-03
Overview
Description
The Balluff Bes02hl (BES 516-324-SA26-03) is a robust inductive proximity sensor designed for metal object detection in industrial applications. This sensor features a stainless steel housing with M8x1 threading for flush mounting installation and delivers reliable performance with a 2mm sensing range and PNP normally open switching output.
Specification
Value
Brand
Balluff
Model/Part Number
Bes02hl
Alternate Part Number
BES 516-324-SA26-03
Sensor Type
Inductive
Sensing Range
2 mm
Output Type
PNP Normally Open (NO)
Switching Frequency
1500 Hz
Operating Voltage
10-30 VDC
Current Rating
200 mA
Dimensions
Ø 8 x 55.5 mm
Housing Type
M8x1
Installation Type
Flush mounting
Housing Material
Stainless steel
Sensing Surface Material
PBT
Connection Type
Cable, 3.00 m, PTFE
Operating Temperature
-25...120 °C
IP Rating
IP67
Approvals
CE, UKCA, cULus, WEEE
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1157
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Output Type: PNP
Sensor Type: Inductive
Operating Distance: 2 mm
Manufacturer: Balluff
Part Number: BES02HL
Shelf: K-61 Tub 2
Model: BES 516-324-SA26-03
MPN: BES02HL
Type: Inductive Proximity Sensor
