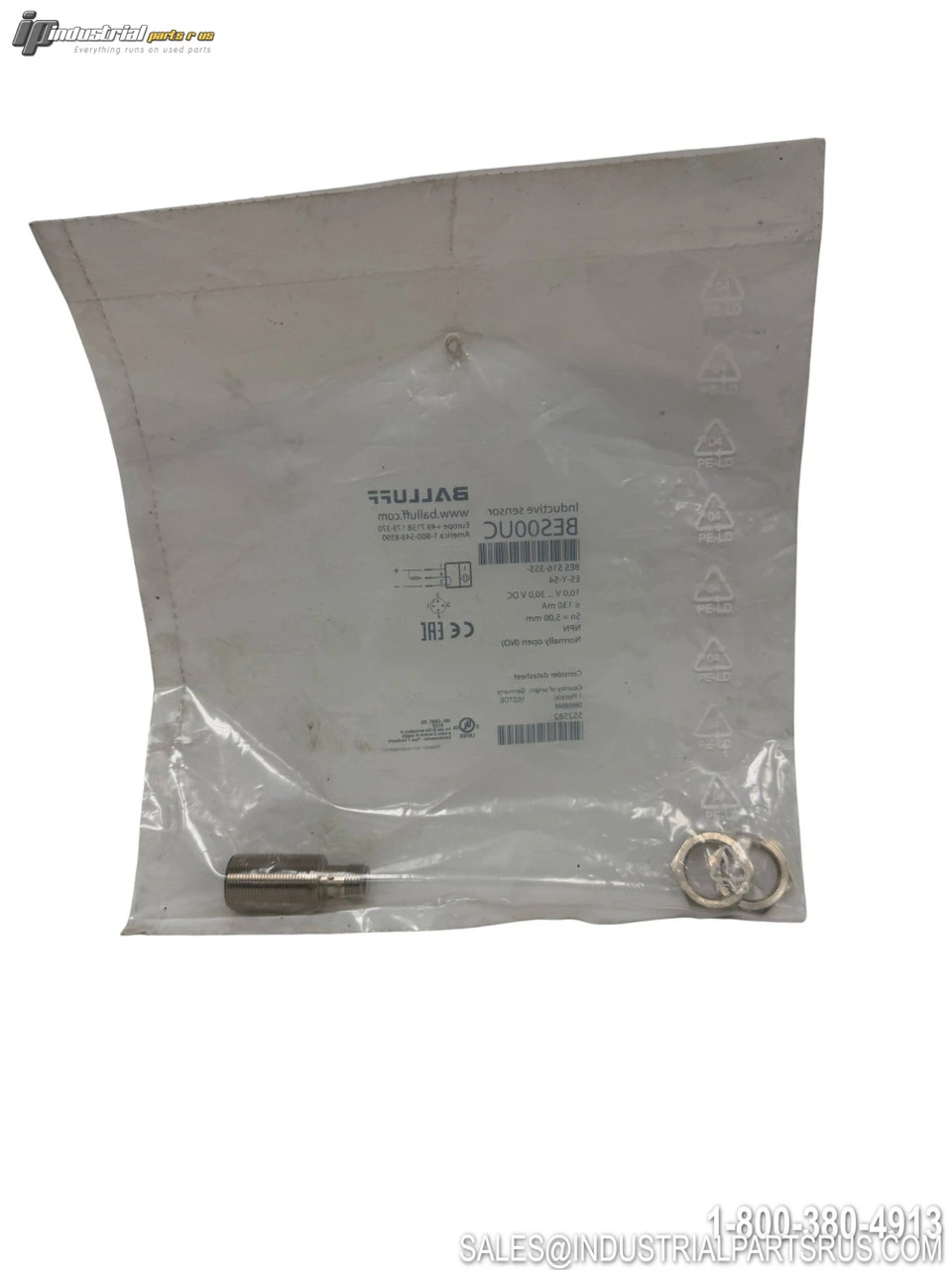

NEW BALLUFF BES 516-355-E5-Y-S4
Overview
Description
This Balluff Bes00uc inductive proximity sensor is designed for reliable detection of metallic objects in industrial automation applications. The sensor features a robust M18x1 threaded housing with flush mounting capability and provides precise sensing at 5mm range. This model utilizes NPN switching technology with normally open output configuration for versatile integration into control systems.
Specification
Value
Brand
Balluff
Model/Part Number
Bes00uc
Type Code
BES 516-355-E5-Y-S4
Sensing Range
5mm
Output Type
NPN Normally Open (NO)
Dimensions
Ø 18 x 44.5 mm
Housing Style
M18x1
Installation
Flush Mounting
Operating Voltage
10-30 VDC
Switching Frequency
500 Hz
Operating Temperature
-25°C to +70°C
IP Rating
IP67
Housing Material
Nickel Plated Brass
Connection Type
Connector
Status
Discontinued
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 2.00 LBS | 2.00 LBS |
|---|
SKU: AI1153
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Output Type: NPN
Sensor Type: Inductive
Operating Distance: 5mm
Manufacturer: Balluff
Part Number: BES00UC
Shelf: K-61 Tub 2
Model: BES 516-355-E5-Y-S4
MPN: BES00UC
Type: Inductive Proximity Sensor
