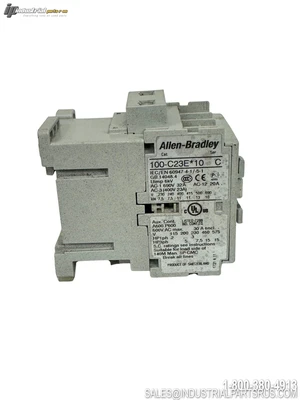

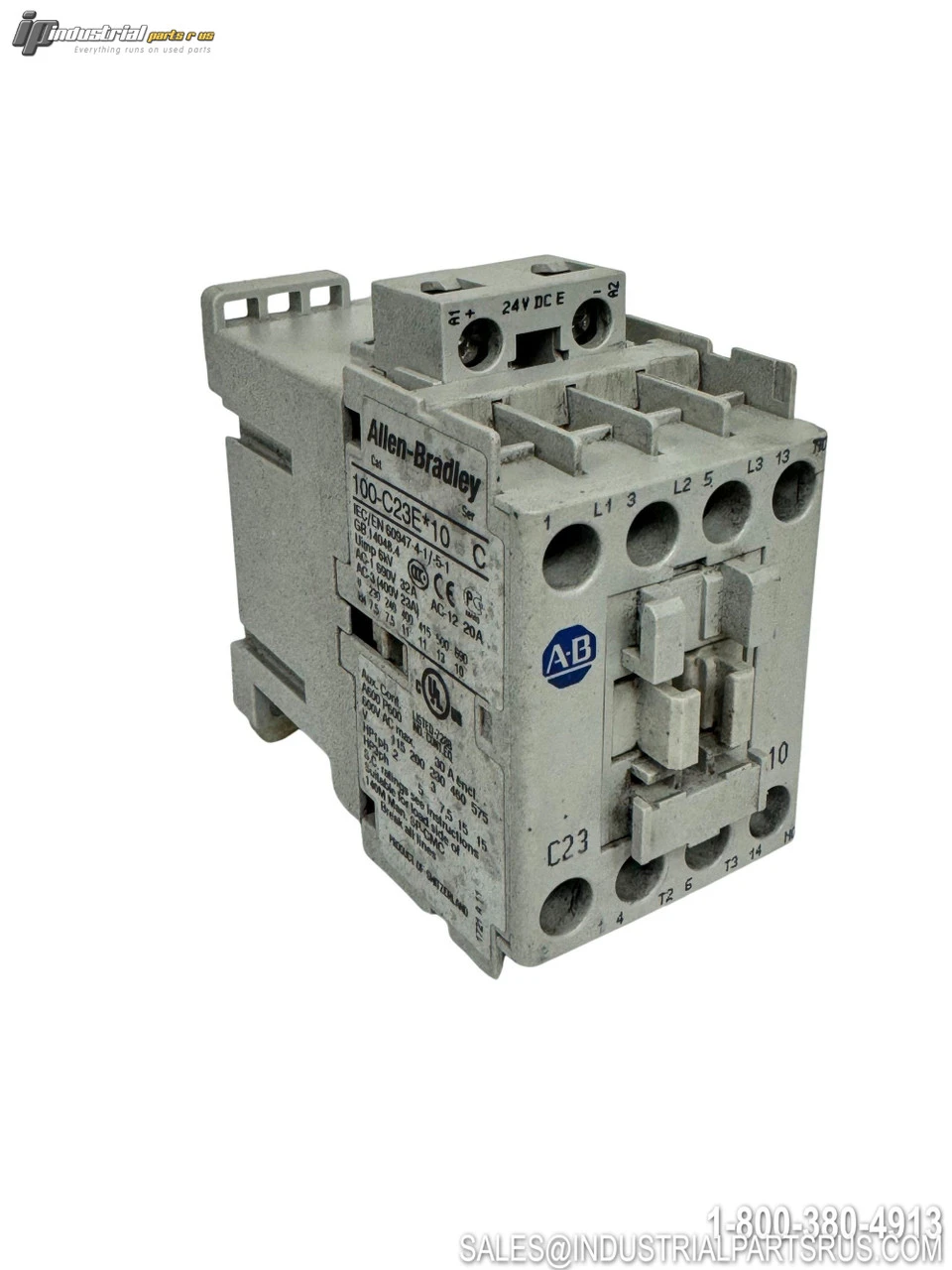

USED ALAN BRADLEY 100-C23E*10

The Allen-Bradley 100-C23E*10 is a 23 AMP, 3 Pole IEC rated contactor with an electronic DC rated coil. This 3-phase IEC rated contactor is used for the control of electric motors and is rated 7.5 HP at 230V and 15 HP at 460V. It comes with 1 N.O. base mounted auxiliary contact block, screw terminals and can be base mounted or mounted on standard 35mm DIN rail.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
100-C23E*10
Product Type
IEC Contactor
Current Rating
23 Amps
Poles
3-Pole
Coil Type
Electronic DC Coil
Coil Voltage Range
12-250VDC
HP Rating at 230V
7.5 HP
HP Rating at 460V
15 HP
Auxiliary Contacts
1 N.O. (Normally Open)
Terminal Type
Screw Terminals
Mounting Type
Base Mount or 35mm DIN Rail
IEC Standard
IEC/EN 60947-4-1 / 5-1
Series
Bulletin 100-C
We warranty all items for 30 days from date of purchase.

SKU: AI1133
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Base/DIN Rail
Current Rating: 23A
Material: Thermoplastic Housing
Manufacturer: Alan Bradley
Part Number: 100-C23E*10
Series: 100-C
Shelf: K-51
Model: 100-C23E*10
Coil Voltage: 12-250VDC
Horsepower: 7.5 HP @ 230V, 15 HP @ 460V
MPN: 100-C23E*10
Type: Contactor
