USED 2005 HAAS VF 4SS

SPECIFICATIONS:
Table size: 52" x 18"
Max table load: 1,750 lbs
X axis travel: 50"
Y axis travel: 20"
Z axis travel: 25"
Spindle taper: BT #40
Spindle speed: 12,000 RPM
Spindle motor: 30 HP - Direct Drive
Spindle nose to table top: 4.2" - 29.2"
Number of tool positions: 24 + 1 Position Side Mount
Max tool weight: 12 lbs.
Rapid feed rate (x,y,z: 1,400 IPM
Cutting feed rate: 0.1 - 833 IPM
Machine dimensions: 152" x 99" x 106"
Machine weight (approximately): 13,800 lbs.

Equipped With:

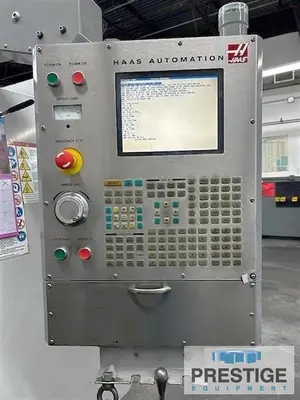

HAAS CNC Controls
24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
Haas HRT210 4th Axis Rotary Table
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 208/230V Electrics
Some BT40 Tool Holders
Machine Motion Hours: 18,951
Spindle Run Hours: 19,504

Features:
HAAS CNC Controls
24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
Haas HRT210 4th Axis Rotary Table
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 208/230V Electrics
Some BT40 Tool Holders
